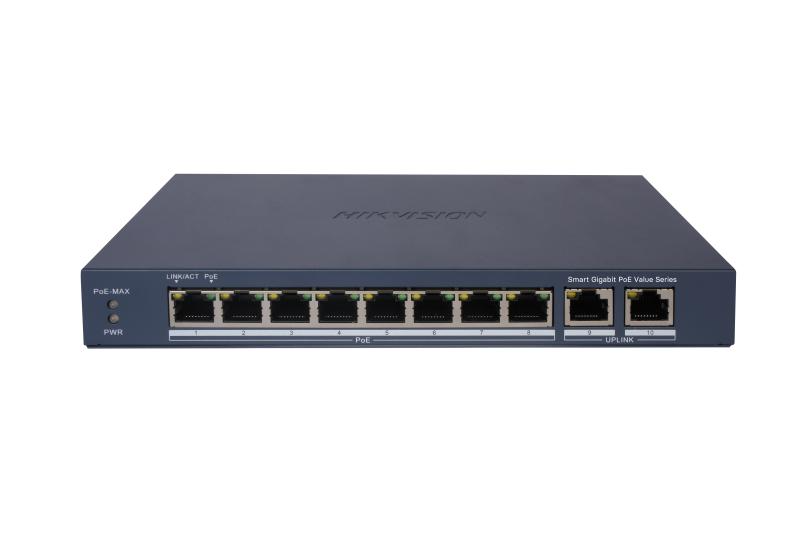

Hikvision 8 Port Gigabit Smart POE Switch – DS-3E1510P-EI/M

Hikvision DS-3E1510P-EI/M 8-Port Gigabit Smart PoE Switch is a high-performance and scalable networking solution designed for modern CCTV and business environments. Featuring 8 Gigabit PoE ports and 2 Gigabit uplink ports, it delivers both power and high-speed data over a single Ethernet cable, simplifying installation for IP cameras, wireless access points, and VoIP devices. With smart management features such as VLAN, PoE watchdog, and loop prevention, this switch ensures stable, secure, and efficient network performance. Its long-range PoE capability and robust surge protection make it ideal for extended surveillance deployments and enterprise-grade networking.

Product Features

8 Gigabit PoE Ports with Dual Uplink

Equipped with 8 × 10/100/1000 Mbps PoE ports and 2 × Gigabit RJ45 uplink ports for high-speed connectivity and flexible network expansion.

IEEE 802.3af/at PoE Support

Delivers up to 30 W per port with a total PoE power budget of 60 W, supporting a wide range of PoE-enabled devices.

Smart Managed Network Functions

Supports advanced features such as 802.1Q VLAN, QoS, port isolation, link aggregation, and cable diagnostics for optimized network performance and control.

PoE Watchdog Auto Recovery

Automatically detects and restarts unresponsive devices such as IP cameras, ensuring continuous surveillance uptime.

Long-Range PoE Transmission up to 300m

Extends network reach up to 300 meters, making it suitable for large installations and outdoor deployments.

Loop Prevention (STP/RSTP)

Prevents network loops that can disrupt communication, enhancing overall system stability.

6kV Surge Protection

Protects the switch and connected devices from lightning and electrical surges for improved durability.

Remote Management via Hikvision Platforms

Supports management via web interface, Hik-Partner Pro, and Hik-Central for monitoring, configuration, and maintenance.

Compact Fanless Metal Design

Durable metal enclosure with silent, fan-free operation ensures reliability in office and surveillance environments.

Product Specifications

• Ports: 8 × Gigabit PoE ports, 2 × Gigabit RJ45 uplink ports
• PoE standard: IEEE 802.3af / IEEE 802.3at
• Max port power: Up to 30 W per port
• Total PoE power budget: 60 W
• Switching capacity: 20 Gbps
• Packet forwarding rate: 14.88 Mpps
• MAC address table: 4K entries
• Internal cache: 1.5 Mbits
• Transmission distance: Up to 300 m (long-range mode)
• VLAN support: 802.1Q (1–4094 VLAN IDs)
• Loop prevention: STP / RSTP
• Surge protection: 6 kV
• Power supply: 54 VDC, 1.2 A
• Power consumption: Max. 65 W
• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to 85°C
• Dimensions: 217.6 × 27.6 × 108.5 mm
• Weight: Approx. 0.54 kg
• Installation: Desktop or wall-mounted
• Enclosure: Metal, fanless design
