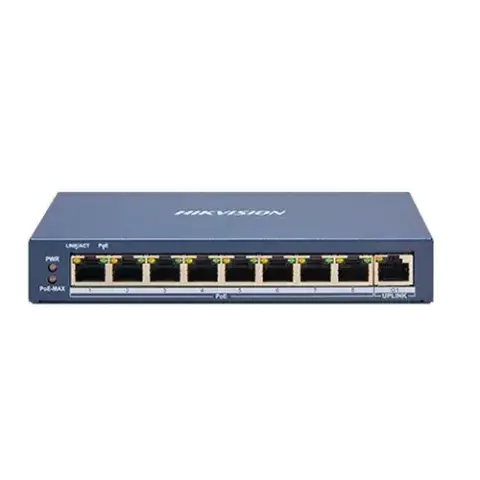

Hikvision DS-3E1309P-EI/M 8-Port Fast Ethernet Smart POE Switch

Hikvision DS-3E1309P-EI/M 8-Port Fast Ethernet Smart PoE Switch is a reliable and cost-effective networking solution designed for small to medium-sized CCTV and business networks. Equipped with 8 Fast Ethernet PoE ports and a Gigabit uplink port, it provides both power and data transmission over a single cable, simplifying installation for IP cameras and other PoE devices. With smart management features such as VLAN support, PoE watchdog, and loop prevention, this switch ensures stable, secure, and efficient network performance. Its long-range transmission capability and surge protection make it ideal for extended surveillance deployments and outdoor installations.

Product Features

8 Fast Ethernet PoE Ports with Gigabit Uplink

Features 8 × 10/100 Mbps PoE ports and 1 × Gigabit RJ45 uplink port for efficient connectivity and network expansion.

IEEE 802.3af/at PoE Support

Supports standard PoE and PoE+ devices, delivering up to 30W per port with a total PoE power budget of approximately 60W.

Smart Managed Network Functions

Includes VLAN (802.1Q), QoS, port isolation, and cable detection for enhanced network control and troubleshooting.

PoE Watchdog Auto Recovery

Automatically detects and restarts unresponsive connected devices such as IP cameras to maintain system uptime.

Long-Range Transmission up to 300m

Supports extended PoE transmission up to 300 meters, ideal for large-scale or outdoor CCTV installations.

Loop Prevention (STP/RSTP)

Prevents network loops that can cause congestion or system failure, improving overall network stability.

6kV Surge Protection

Built-in surge protection safeguards the switch and connected devices from lightning and electrical spikes.

Network Monitoring and Management

Supports topology visualization, device monitoring, and alarm notifications through Hikvision management platforms.

Compact Fanless Metal Design

Durable metal housing with silent, fan-free operation ensures reliable performance in various environments.

Product Specifications

• Ports: 8 × 10/100 Mbps PoE ports, 1 × Gigabit RJ45 uplink
• PoE standard: IEEE 802.3af / IEEE 802.3at
• Max port power: Up to 30 W per port
• Total PoE power budget: 60 W (model dependent variants may vary)
• Switching capacity: Up to 5.6 Gbps
• Packet forwarding rate: Up to 4.17 Mpps
• MAC address table: 8K
• Internal cache: 4 Mbit
• Transmission distance: Up to 300 m (long-range mode)
• VLAN support: 802.1Q
• Loop prevention: STP / RSTP
• Surge protection: 6 kV
• Power supply: 54 VDC, approx. 1.2 A
• Power consumption: Max. approx. 65 W
• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to 85°C
• Operating humidity: 5% to 95% (non-condensing)
• Dimensions: 170 × 27.6 × 93.1 mm
• Weight: Approx. 0.4 kg
• Installation: Desktop or wall-mounted
• Enclosure: Metal, fanless design
