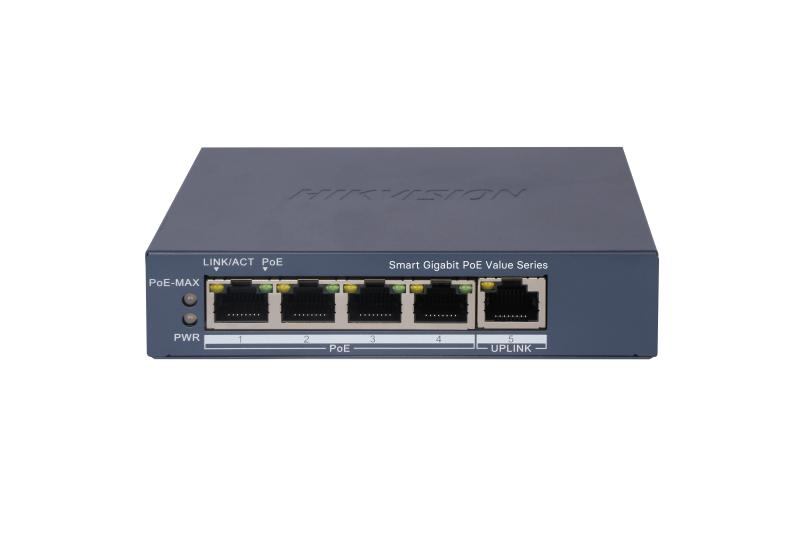

Hikvision 4 Port Gigabit Smart POE Switch – DS-3E1505P-EI/M

Hikvision DS-3E1505P-EI/M 4-Port Gigabit Smart PoE Switch is a compact and high-performance networking solution designed for modern surveillance and business networks. Featuring 4 Gigabit PoE ports and a dedicated uplink port, this switch delivers both power and high-speed data transmission over a single cable, simplifying installation for IP cameras, access points, and other PoE devices. With smart management features such as VLAN, PoE watchdog, and loop prevention, it ensures stable, secure, and efficient network operation. Its long-range transmission capability and robust surge protection make it an ideal choice for CCTV deployments and extended network setups.

Product Features

4 Gigabit PoE Ports with Uplink

Equipped with 4 × 10/100/1000 Mbps PoE ports and 1 × Gigabit RJ45 uplink port for high-speed connectivity and flexible network expansion.

IEEE 802.3af/at PoE Support

Supports standard PoE and PoE+ devices, delivering up to 30W per port and a total power budget of 45W.

Smart Managed Network Functions

Includes advanced features such as VLAN (802.1Q), QoS, port isolation, link aggregation, and cable fault detection for improved network control and reliability.

PoE Watchdog for Auto Recovery

Automatically detects unresponsive devices and restarts them, ensuring continuous uptime for connected IP cameras.

Long-Range Transmission up to 300m

Supports extended PoE transmission up to 300 meters, ideal for large installations and outdoor surveillance systems.

Loop Prevention (STP/RSTP)

Prevents network loops that can cause congestion or system failure, enhancing overall stability.

6kV Surge Protection

Protects connected devices from lightning and electrical surges, ensuring long-term durability.

Remote Management and Monitoring

Supports management via web interface and Hikvision platforms such as Hik-Partner Pro, enabling remote configuration and monitoring.

Compact Fanless Metal Design

Durable metal housing with silent operation makes it suitable for both office and surveillance environments.

Product Specifications

• Ports: 4 × Gigabit PoE ports, 1 × Gigabit RJ45 uplink
• PoE standard: IEEE 802.3af / IEEE 802.3at
• Max port power: Up to 30 W per port
• Total PoE power budget: 45 W
• Switching capacity: 10 Gbps
• Packet forwarding rate: 7.44 Mpps
• MAC address table: 2K entries
• Internal cache: 1 Mbit
• Transmission distance: Up to 300 m (long-range mode)
• VLAN support: 802.1Q
• Loop prevention: STP / RSTP
• Surge protection: 6 kV
• Power supply: 54 VDC, 0.92 A
• Power consumption: Max. 50 W
• Operating temperature: 0°C to 40°C
• Operating humidity: 5% to 95% (non-condensing)
• Dimensions: 121.1 × 27.6 × 83.1 mm
• Weight: Approx. 0.26 kg
• Installation: Desktop or wall-mounted
• Enclosure: Metal, fanless design
