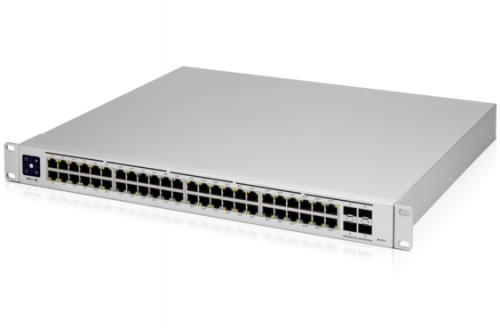

Ubiquiti UniFi 48 Port PoE Pro Switch (USW-Pro-48-POE)

UniFi Switch PRO 48 PoE is a premium Layer 3 switch engineered for enterprise-grade networks. As part of the Ubiquiti switches family, it delivers robust power, quiet operation, and advanced Layer 3 functionality. Ideal for modern networking switches deployments, it supports high-speed uplinks, intelligent PoE allocation, and seamless integration with the UniFi ecosystem.

Product Features

High-Density PoE Configuration

This switch features 48 Gigabit RJ45 ports, including 40 PoE+ and 8 PoE++ ports. It provides up to 32W per PoE+ port and 60W per PoE++ port, with a total PoE power budget of 600W, allowing for the simultaneous powering of numerous devices like access points, VoIP phones, and cameras.

High-Speed Uplinks

Equipped with 4 x 10G SFP+ ports, this unit supports high-bandwidth fiber uplinks or connections to aggregation switches, ensuring fast and reliable data transmission across your network.

Advanced Layer 3 Functionality

As one of the most powerful networking switches in the UniFi lineup, it supports:

• Inter-VLAN routing
• Static routing
• DHCP server and relay
• ACL-based device isolation
  These features enable greater network segmentation, control, and security in complex environments.

Enterprise-Level Performance

With 88 Gbps non-blocking throughput, 176 Gbps switching capacity, and a forwarding rate of 130.944 Mpps, this switch handles high-volume data flow without bottlenecks.

Intelligent Cooling and Design

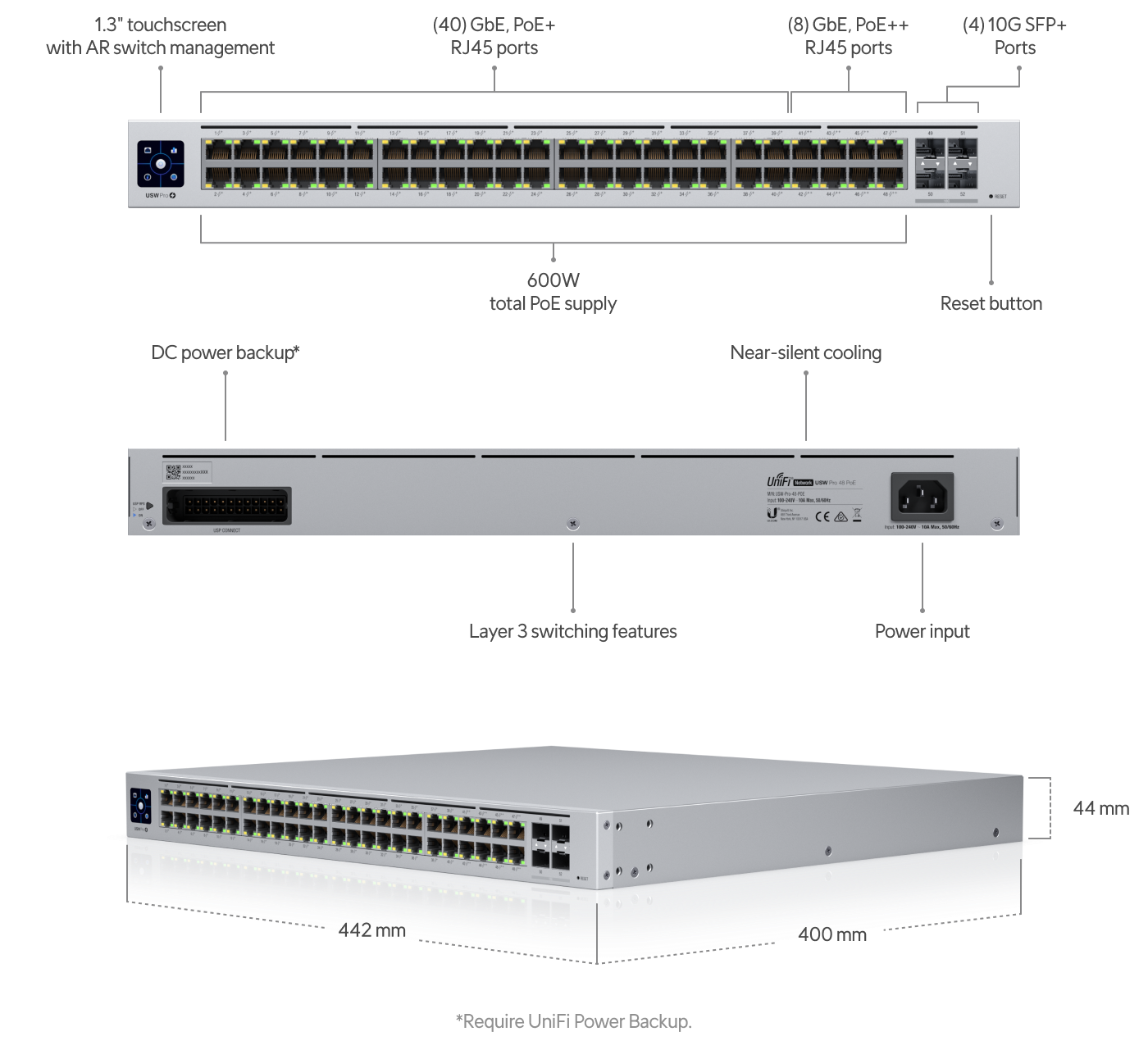

The device offers near-silent cooling with smart fan control, making it suitable for office and conference room installations. It also includes a 1.3″ LCM touchscreen for real-time monitoring.

Redundant Power Support

The switch features an internal 660W power supply and supports USP-RPS (UniFi SmartPower) for DC power backup, ensuring uninterrupted operation during outages.

Product Specifications

• Model: UniFi Switch PRO 48 PoE (USW-Pro-48-POE)
• Total Ports: 48 x GbE RJ45
• PoE Configuration:
  • 40 x PoE+ (32W max per port)
  • 8 x PoE++ (60W max per port)
  • 600W total PoE budget
• Uplink Ports: 4 x 10G SFP+
• Throughput: 88 Gbps (non-blocking)
• Switching Capacity: 176 Gbps
• Forwarding Rate: 130.944 Mpps
• Power Supply: Internal 660W AC/DC
• Backup Power: USP-RPS (DC input supported)
• Cooling: Intelligent, near-silent fan system
• Display: 1.3″ Touchscreen LCM
• Dimensions: 442 x 400 x 44 mm
• Weight:
  • 6.2 kg without brackets
  • 6.3 kg with brackets
• Material: SGCC steel
• Environmental Tolerance:
  • Temp: -5°C to 40°C
  • Humidity: 10%–90% (non-condensing)
• Certifications: CE, FCC, IC
• Management: Requires UniFi Network Controller v5.10.5+
