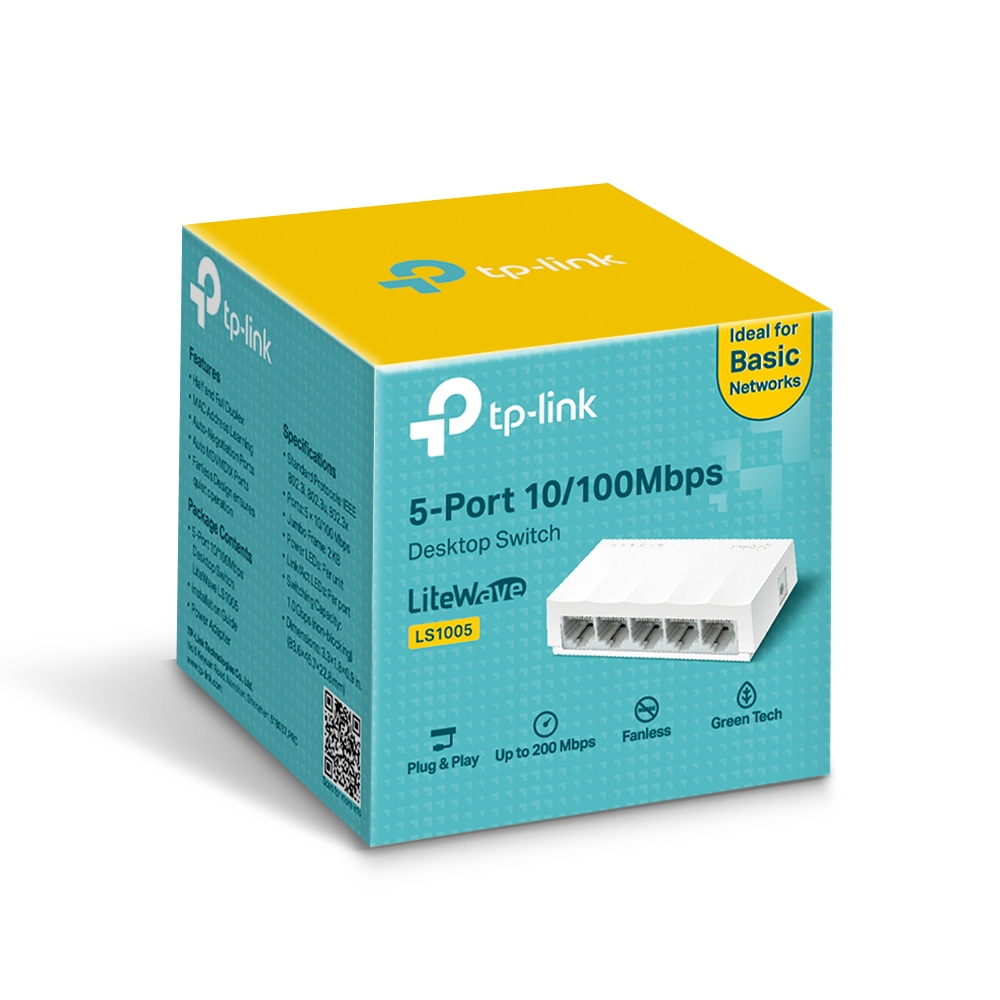

Tp-link LS1005 5-Port 10/100Mbps Desktop Network Switch

TP-Link LS1005 is a reliable and energy-efficient networking switch designed for small office and home networks. With 5 Auto-Negotiation Fast Ethernet ports, it offers seamless data transfer, quiet fanless operation, and plug-and-play simplicity. This TP-Link switch is ideal for connecting computers, printers, and other network-enabled devices without requiring any configuration.

Product Features

Compact 5-Port Design
Equipped with 5× 10/100Mbps RJ45 ports, the switch supports Auto-MDI/MDIX for simplified cable compatibility and flexible installation.

Silent Operation
A fanless design ensures completely silent performance, making it perfect for noise-sensitive environments like home offices and school dorms.

Plug and Play Setup
No configuration required. Simply connect your devices and start expanding your wired network immediately with this TP-Link networking switch.

Energy-Efficient Performance
Incorporates green Ethernet technology that automatically adjusts power consumption based on link status and cable length, helping to reduce your energy costs.

Durable and Space-Saving
The compact plastic casing makes it a practical addition to any desktop setup and offers long-lasting use.

Product Specifications

• Ports: 5× 10/100Mbps Auto-Negotiation RJ45 ports (Auto-MDI/MDIX supported)
• Switching Capacity: 1 Gbps
• MAC Address Table: 2K entries
• Forwarding Mode: Store-and-forward
• Flow Control: IEEE 802.3x (Full-Duplex), Backpressure (Half-Duplex)
• Supported Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
• Cabling:
  • 10Base-T: UTP Cat3, 4, 5 / STP (max 100m)
  • 100Base-TX: UTP Cat5, 5e / STP (max 100m)
• Power Supply: External 5VDC / 0.6A
• Fanless Design: Yes
• Operating Temperature: 0°C–40°C
• Storage Temperature: -40°C–70°C
• Operating Humidity: 10%–90% RH non-condensing
• Storage Humidity: 5%–90% RH non-condensing
• Certifications: CE, FCC, RoHS
• Package Includes: LS1005 Switch, Power Adapter, Installation Guide

Applications

Perfect for small businesses, home users, surveillance systems, and dormitories, the LS1005 networking switch offers reliable wired connections for devices like computers, printers, IPTVs, and webcams.
