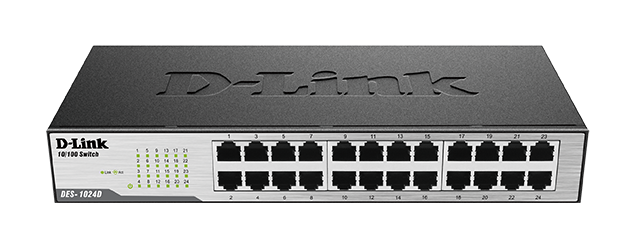

D-Link 24 port 10/100Mbps Unmanaged Switch DES-1024D
D-Link DES-1024D is a high-performance unmanaged networking switch built to meet the networking demands of small to medium-sized businesses and home offices. Designed for plug-and-play simplicity, this D-Link switches offer a reliable and cost-effective way to expand network capacity. With 24 auto-sensing ports, silent operation, and built-in Quality of Service (QoS), it ensures seamless communication across connected devices. This model is part of the trusted line of networking switches from D-Link, delivering efficient and stable Ethernet performance.
Key Features
- Auto-Sensing 10/100 Mbps Ports: Automatically detects device speed and configures the port accordingly for optimal data flow.
- Auto MDI/MDIX Crossover: Simplifies installation by eliminating the need for crossover cables.
- Flow Control: Supports IEEE 802.3x for full-duplex and backpressure for half-duplex to reduce packet loss.
- Fanless Design: Operates silently, perfect for offices and noise-sensitive environments.
- Quality of Service (QoS): Prioritizes time-sensitive traffic like VoIP and video streams for smooth performance.
Technical Specifications
- Standards Compliance:
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3x Flow Control
- Switching Capacity: 4.8 Gbps
- MAC Address Table: 8,000 entries
- Packet Forwarding Rate:
- 10 Mbps: 14,880 pps per port
- 100 Mbps: 148,800 pps per port
- RAM Buffer: 2 Mbits
- Transmission Method: Store-and-forward
- Data Transfer Rates:
- Ethernet: 10 Mbps (half), 20 Mbps (full)
- Fast Ethernet: 100 Mbps (half), 200 Mbps (full)
- LED Indicators: Power, Link/Activity
- Dimensions: 280 mm x 180 mm x 44 mm
- Weight: 1.14 kg
- Power Consumption: 1.17W (typical), 2.8W (max)
