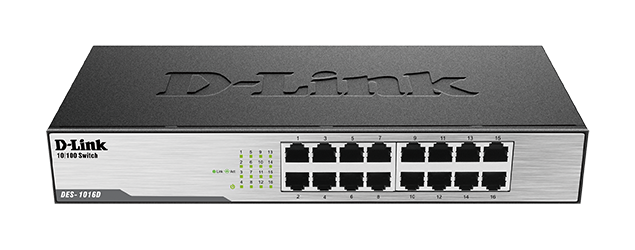

Dlink 16-Port Fast Ethernet Unmanaged Desktop Switch DES-1016D
D-Link DES-1016D is a compact, plug-and-play networking switch ideal for small to medium-sized offices and home networks. With 16 auto-sensing 10/100 Mbps ports, it provides a reliable and cost-effective solution for expanding wired connectivity. As part of the trusted D-Link switches lineup, this model is designed for quiet, energy-efficient performance while maintaining consistent network speeds and intelligent traffic handling.
Product Features
Auto-Sensing 10/100 Mbps Ports
Each of the 16 ports automatically detects and adjusts to the connected device’s speed, ensuring optimal networking switch performance without manual configuration.
Auto MDI/MDIX Crossover
The switch eliminates the need for crossover cables by automatically detecting cable type and adjusting the connection, simplifying setup.
Flow Control Support
Integrated IEEE 802.3x flow control and backpressure features help prevent data packet loss during high-traffic conditions.
Fanless Silent Operation
With no internal fan, the DES-1016D switch ensures silent performance, making it ideal for desktop or office environments where noise is a concern.
Quality of Service (QoS)
Built-in QoS prioritizes network traffic, supporting smooth performance for bandwidth-sensitive applications such as VoIP and video streaming.
Product Specifications
- Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Switching Capacity: 3.2 Gbps
- MAC Address Table: 8,000 entries
- Packet Forwarding Rate:
– 10 Mbps: 14,880 pps per port
– 100 Mbps: 148,800 pps per port - RAM Buffer: 2 Mbits per device
- Transmission Method: Store-and-forward
- Data Transfer Rates:
– Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex)
– Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex) - LED Indicators: Power, Link/Activity
- Dimensions: 280 x 125.8 x 44 mm
- Weight: 1.8 kg
- Power Consumption: Max 2.89 W
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -10°C to 70°C
- Operating Humidity: 10% to 90% non-condensing
- Storage Humidity: 5% to 90% non-condensing
