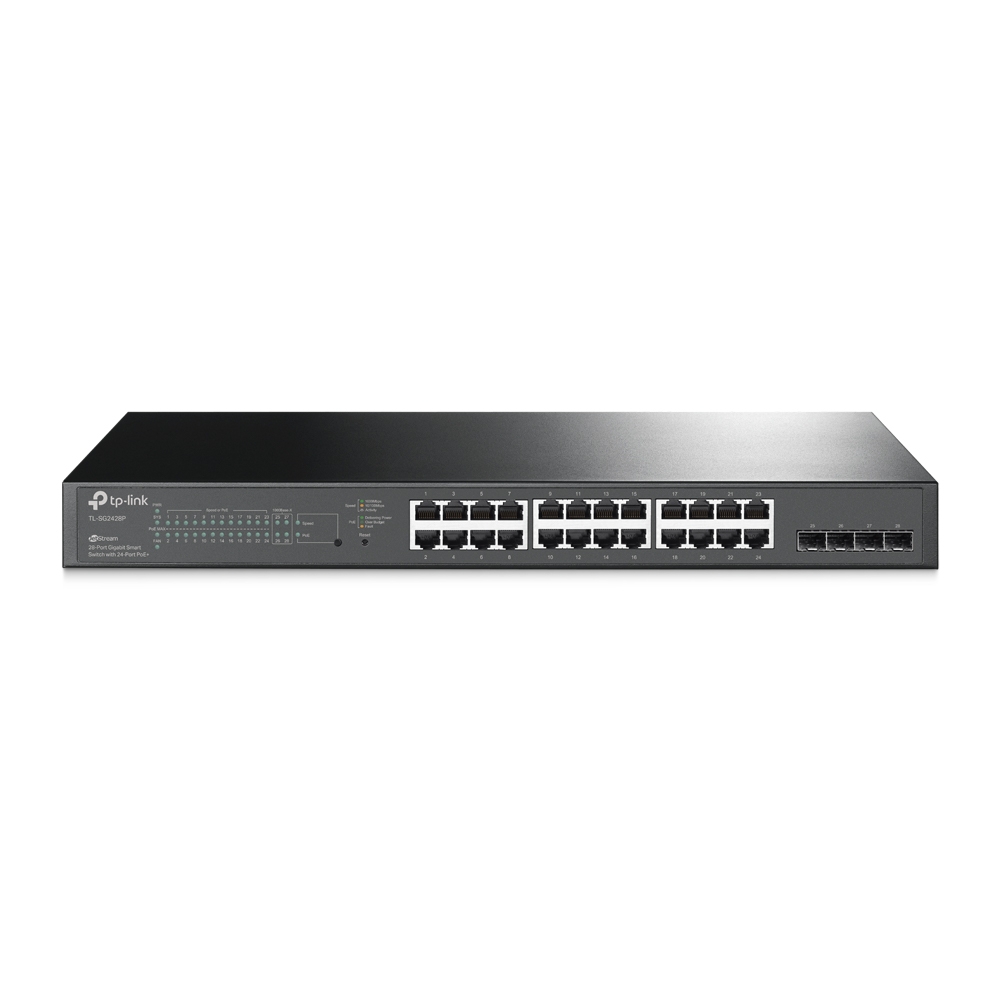

TP-Link 28-Port 10/100/1000Mbps JetStream Gigabit Smart Switch with 24-Port PoE+(TL-SG2428P)

TP-Link TL-SG2428P is a high-performance networking switch built for professional business environments requiring power, speed, and control. Featuring 24 PoE+ Gigabit ports and 4 SFP uplink slots, this TP-Link switch combines data and power delivery in a single solution. Integrated with Omada SDN, it enables centralized management, VLAN segmentation, and robust Layer 2+ features, making it ideal for IP surveillance, VoIP, and wireless deployments.

Product Features

Powerful PoE+ Support
All 24 Gigabit RJ45 ports support IEEE 802.3af/at PoE+, delivering up to 30W per port with a total PoE power budget of 250W — enough to power IP cameras, access points, and VoIP phones without additional wiring.

Omada SDN Integration
Supports centralized cloud-based management, Zero-Touch Provisioning (ZTP), and remote monitoring through Omada app, simplifying network switch deployment and scaling for large networks.

Layer 2+ Networking Features
Offers static routing, IGMP Snooping, DHCP server/relay, link aggregation, and loopback detection, providing smart traffic handling and optimized internal routing.

Advanced Security
Features IP-MAC-Port Binding, 802.1X authentication, ACLs, DHCP snooping, and DoS defense to guard against unauthorized access and cyber threats.

QoS and Voice Optimization
Supports 802.1p CoS/DSCP QoS, 8 priority queues, and Voice VLAN for high-quality VoIP transmission — ideal for prioritizing real-time applications.

Robust Management Tools
Includes a web GUI, CLI, SNMP v1/v2c/v3, RMON, virtual cable test (VCT), and dual firmware image for high availability and diagnostics.

Product Specifications

• Ports: 24× 10/100/1000 Mbps RJ45 PoE+ ports, 4× Gigabit SFP slots
• PoE Standard: IEEE 802.3af/at, up to 30W per port
• Total PoE Budget: 250W
• Switching Capacity: 56 Gbps
• Forwarding Rate: 41.7 Mpps
• MAC Address Table: 8K
• Packet Buffer: 4.1 Mbit
• Jumbo Frame: Up to 9 KB
• Dimensions: 440 × 220 × 44 mm
• Mounting: Rack-mountable
• Fans: 2 internal cooling fans
• Power Consumption: 32.1W (no PD), 308.6W (full PD load)
• Heat Dissipation: 109.53 BTU/h (no PD), 1052.94 BTU/h (full PD load)
• VLAN Support: Up to 4K VLANs, MAC/Protocol-based VLAN
• Link Aggregation: 8 groups, up to 8 ports per group
• Spanning Tree Protocols: STP, RSTP, MSTP
• Security: Port security, IP-MAC-Port Binding, ACLs, 802.1X, Radius, SSL/SSH
• IPv6 Support: Dual stack, MLD Snooping, ND, DHCPv6, SNMPv6
• Management Interfaces: Web GUI, CLI, Omada SDN, SNMP, RMON, Syslog
