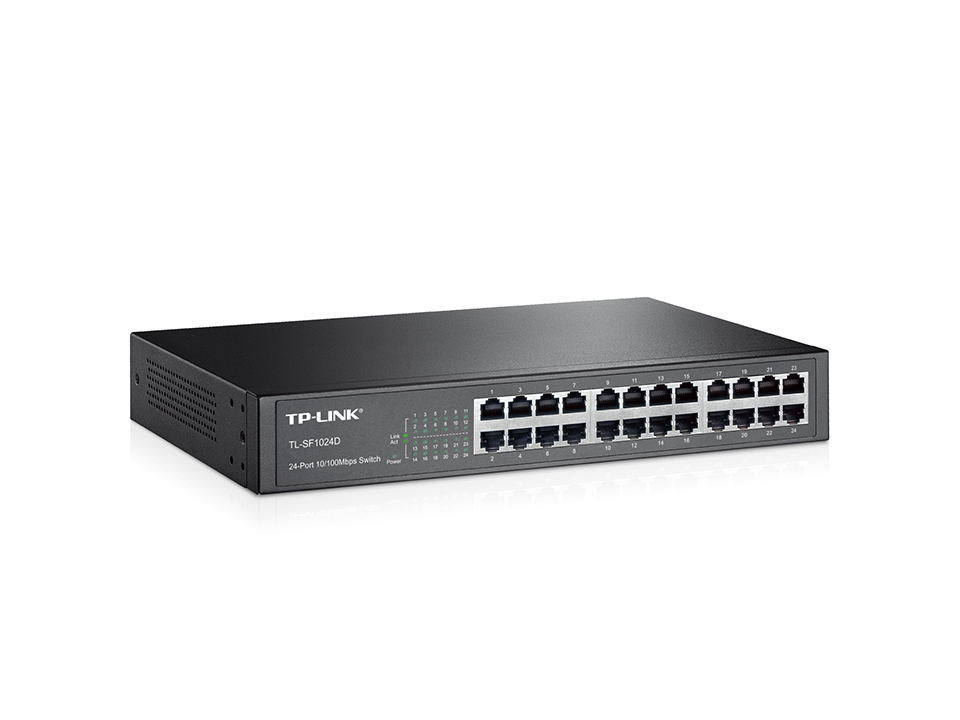

TP-Link TL-SF1024D 24-Port 10/100Mbps Desktop/Rackmount Switch

TP-Link TL-SF1024D is a high-performance networking switch designed to provide seamless wired connectivity for small businesses, workgroups, and home networks. With 24 Auto-Negotiation 10/100Mbps ports, it offers an easy, cost-effective solution to expand your network. This TP-Link switch delivers reliable performance with a non-blocking architecture, energy-efficient technology, and a durable fanless design for silent operation.

Product Features

24 Auto-Negotiation RJ45 Ports
Equipped with 24 10/100Mbps ports that support Auto MDI/MDIX, the switch eliminates the need for crossover cables or uplink ports.

Non-Blocking Switching Architecture
The TL-SF1024D ensures maximum throughput with a switching capacity of 4.8 Gbps, enabling smooth data transfers and reliable performance across all ports.

Rackmount or Desktop Design
Built in a sturdy steel case, the switch supports both rackmount and desktop installation, offering flexibility in deployment for various network setups.

Fanless Operation
Its quiet, fanless design makes it ideal for noise-sensitive environments like offices, classrooms, and meeting rooms.

Plug and Play
With no configuration required, this networking switch supports instant setup, making it user-friendly for non-technical users.

Energy-Efficient Technology
Integrated Green Ethernet technology reduces power consumption by automatically adjusting power usage based on link status and cable length.

Product Specifications

• Ports: 24× 10/100Mbps Auto-Negotiation RJ45 ports, Auto MDI/MDIX
• Standards: IEEE 802.3i, 802.3u, 802.3x
• Switching Capacity: 4.8 Gbps
• MAC Address Table: 8K entries
• Forwarding Mode: Store and forward
• Flow Control: IEEE 802.3x full duplex; backpressure for half-duplex
• Housing: Rack-mountable steel case
• Fanless: Yes, for silent operation
• Data Rates:
  • Ethernet: 10Mbps (Half Duplex), 20Mbps (Full Duplex)
  • Fast Ethernet: 100Mbps (Half Duplex), 200Mbps (Full Duplex)
• Network Media:
  • 10Base-T: UTP Cat3/4/5, STP up to 100m
  • 100Base-TX: UTP Cat5/5e, STP up to 100m
• Power Supply: Internal 100-240VAC, 50/60Hz
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
• Certifications: FCC, CE, RoHS
• Package Contents:
  • TL-SF1024D Switch
  • Power Cord
  • Rackmount Kit
  • User Guide
