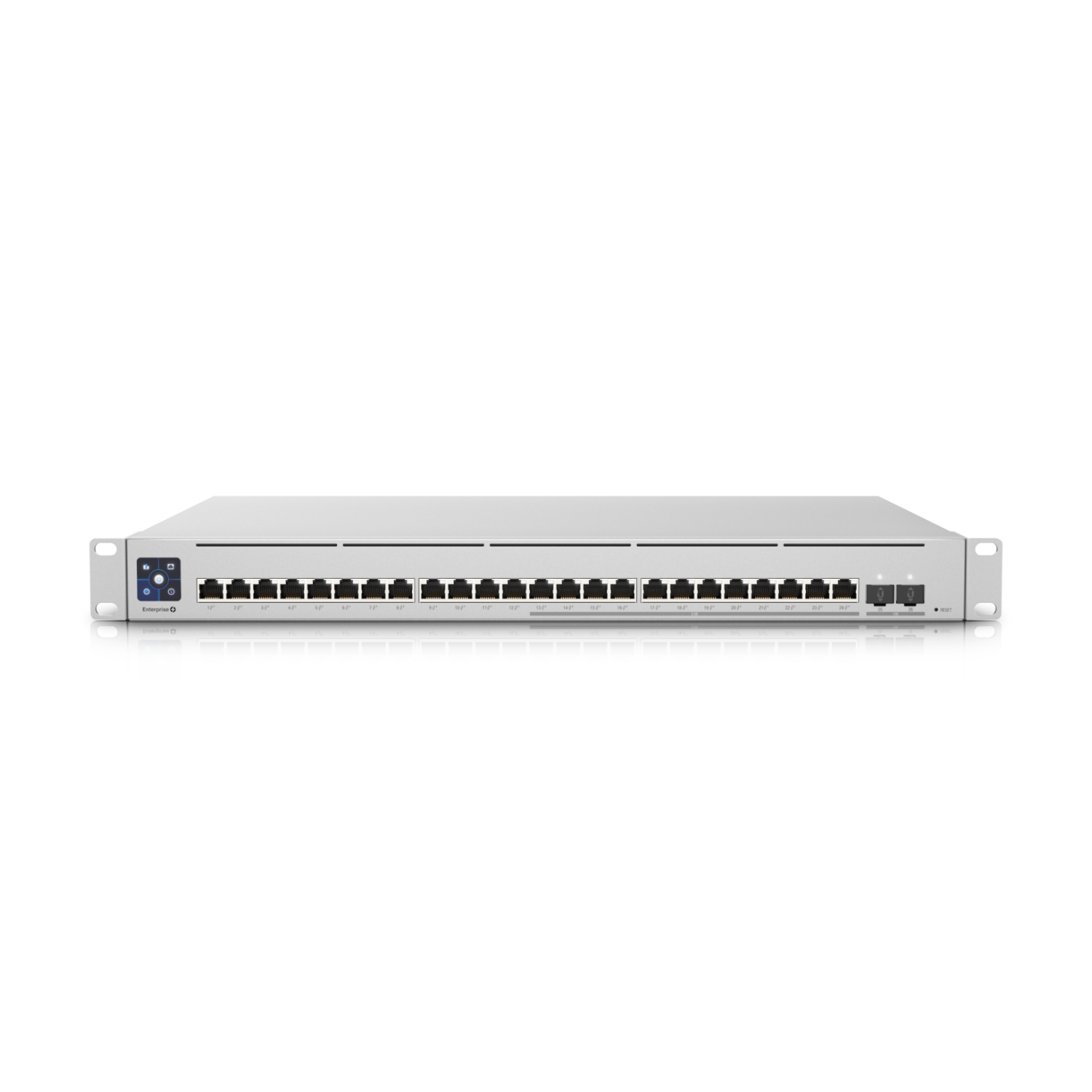

Ubiquiti UniFi Switch Enterprise 24 PoE (USW-Enterprise-24-PoE)

Ubiquiti UniFi Switch Enterprise 24 PoE is a next-generation networking switch engineered for enterprise environments that demand high-speed connectivity, advanced security, and centralized management. This Ubiquiti switch combines powerful Layer 3 routing, extensive PoE+ power, and silent operation in a 1U rackmount form factor—ideal for powering a broad array of access points, VoIP phones, IP cameras, and other PoE-enabled devices across modern networks.

Product Features

High-Performance Hybrid Port Configuration
Includes 24 total ports—12 × 2.5 GbE PoE+ and 12 × 1 GbE PoE+, providing exceptional flexibility for high-throughput devices and legacy hardware. Plus, 2 × 10G SFP+ ports support fast fiber uplinks for superior aggregation and backbone performance.

Powerful PoE+ Output with Backup Options
Delivers a total PoE budget of 400W, supplying up to 34.2W per port. Supports DC power backup via the USP-RPS (sold separately), ensuring uninterrupted device operation.

Layer 3 Switching Capabilities
Supports static routing, inter-VLAN routing, and ACL-based isolation, allowing traffic segmentation and advanced control over network flows, security, and efficiency.

Fanless Design for Silent Operation
Engineered with a fanless cooling system that ensures quiet performance—perfect for office racks, studios, and hospitality deployments where noise is a concern.

Enterprise-Grade Security & Control
Features robust tools like DHCP snooping, 802.1X authentication, MAC and IP-based ACLs, port isolation, and IGMP snooping to ensure data integrity and controlled access across connected devices.

Touchscreen Display for Real-Time Monitoring
A 1.3″ color touchscreen provides system insights, port activity, and configuration tools directly on the switch—simplifying on-site diagnostics and status checks.

Centralized Management with UniFi Controller
Fully managed through the UniFi Network Controller, providing visibility and configuration through web interface or mobile app, with cloud access for remote network operations.

Product Specifications

• Ports:
  • 12 × 2.5 GbE PoE+ ports
  • 12 × 1 GbE PoE+ ports
  • 2 × 10G SFP+ uplinks
• Total PoE Budget: 400W
• PoE+ Wattage per Port: Up to 34.2W
• Switching Capacity: 124 Gbps
• Non-Blocking Throughput: 62 Gbps
• Forwarding Rate: 92.25 Mpps
• MAC Address Table: 16,000 entries
• Jumbo Frame Support: Up to 9,000 bytes
• Management Interface: In-Band Ethernet
• Display: 1.3″ Color Touchscreen
• Power Supply: Internal AC/DC 550W
• Power Consumption (Excl. PoE): Max 60W
• DC Backup Support: Yes (USP-RPS compatible)
• Cooling: Fanless
• Dimensions: 442 × 325 × 44 mm
• Weight: 5.1 kg (11.3 lb) without brackets
• Enclosure: SGCC Steel
• Rack-Mountable: Yes
• Operating Temperature: -5°C to 40°C
• Humidity Tolerance: 10% to 95% (non-condensing)
• Certifications: CE, FCC, IC
• ESD/EMP Protection: Air ±16kV, Contact ±12kV
