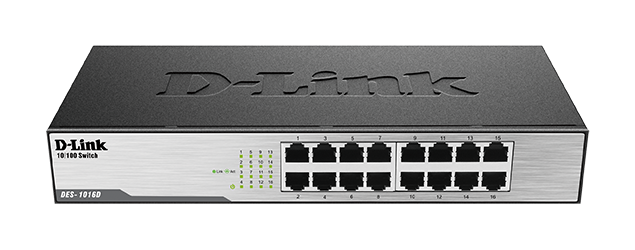

D-Link 10/100M 16-Port Fast Ethernet Unmanaged Desktop Switch (DES-1016D)

D-Link DES-1016D is a plug-and-play networking switch ideal for small offices and home use. This high-performance D-Link switch features 16 Fast Ethernet ports supporting up to 200 Mbps per port in full-duplex mode, enabling smooth file transfers, media streaming, and VoIP. Its fan-less metal design ensures silent operation, while Energy-Efficient Ethernet (IEEE 802.3az) helps reduce power consumption during low traffic periods. With reliable flow control, auto MDI/MDIX, and rack-mountable flexibility, this D-Link networking switch offers simple yet efficient LAN expansion.

Product features

16-port fast ethernet connectivity
Provides sixteen 10/100 Mbps ports with auto-negotiation and auto MDI/MDIX for simple, scalable networking.

energy-efficient ethernet
IEEE 802.3az support enables smart power-saving features, reducing energy use when traffic is low.

flow control for reliable data delivery
Supports 802.3x full-duplex and back-pressure half-duplex to prevent packet loss during high traffic.

store-and-forward switching
Delivers low-latency packet handling with 3.2 Gbps switching capacity and an 8K MAC address table.

silent, fan-less metal design
Fanless metal chassis ensures quiet operation and long-term durability in any office environment.

compact and rack-mountable
Desktop- or rack-ready design with clear LED indicators for power, link, activity, and speed.

Product specifications

• 16 × 10/100 Mbps RJ-45 ports with auto MDI/MDIX
• Switching capacity: 3.2 Gbps
• Forwarding rate: 148,800 packets/s per port (100 Mbps)
• MAC address table: 8K entries
• Packet buffer: 512 KB
• Flow control: IEEE 802.3x full-duplex, back-pressure half-duplex
• Standards: IEEE 802.3, 802.3u, 802.3az, 802.3x
• LED indicators: Power, per-port link/activity and speed
• Housing: Fan-less metal chassis; desktop or rack-mountable
• Power: 100–240 V AC, 0.3 A; power consumption ≤2.1 W
• Operating temperature: 0–40 °C; humidity: 5–90% RH non-condensing
• Dimensions: 282 × 150 × 44 mm
• Weight: Approx. 1.06 kg
