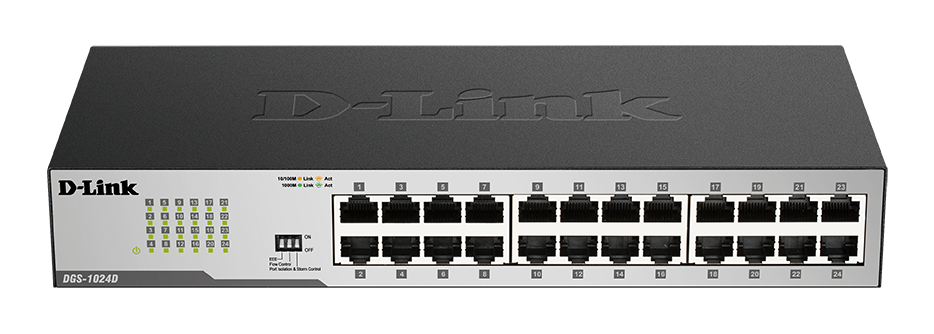

D-Link DGS‑1024D 24-Port Gigabit Unmanaged Switch

D-Link DGS‑1024D is a high-performance networking switch designed for businesses, classrooms, and home offices that require reliable and fast network expansion. With 24 auto-negotiating Gigabit ports and a non-blocking 48 Gbps switching capacity, D-Link switches ensure seamless data transfers, stable performance, and zero-configuration installation. Its fanless metal housing offers silent operation and energy-efficient technology, making it ideal for noise-sensitive and power-conscious environments.

Product features

Non-blocking 48 Gbps switching fabric
Supports full wire-speed data forwarding across all 24 ports to eliminate traffic bottlenecks in large file transfers or multi-device setups.

Gigabit Ethernet on all ports
Each RJ‑45 port supports up to 1000 Mbps, ideal for fast backups, HD streaming, and high-speed office data exchange.

Energy-efficient Ethernet
IEEE 802.3az compliance powers down idle ports and adjusts power usage based on cable length, maintaining power consumption below 10 W.

Jumbo frame support
Handles frames up to 9600 bytes, ideal for virtualization, backups, and transferring large files between servers or NAS devices.

Auto MDI/MDIX and flow control
Simplifies cabling by automatically detecting crossover needs, while flow control mechanisms prevent packet loss in heavy traffic.

Storm control and port isolation
Protects your network from broadcast and multicast storms and adds traffic segmentation options for better control.

Fanless, silent metal design
Operates silently with zero noise, perfect for rack or desktop deployments in quiet environments like libraries or offices.

Easy diagnostics and mounting
LED indicators show real-time status for link, activity, speed, and power. Rack-mount kit included for flexible installation.

Product specifications

• Ports: 24 × 10/100/1000 Mbps RJ‑45 (auto MDI/MDIX)
• Switching capacity: 48 Gbps
• Forwarding rate: 35.7 Mpps aggregate
• MAC address table: 8,000 entries (auto learning/aging)
• Packet buffer memory: 512 KB shared
• Jumbo frames: Up to 9600 bytes
• Flow control: IEEE 802.3x (full duplex), back pressure (half duplex)
• Power saving: IEEE 802.3az, link/cable detection
• Power usage: ≈4.5 W (standby), 10 W (max)
• LED indicators: Per-port link/activity/speed, power
• Dimensions: 280 × 180 × 44 mm
• Weight: ≈1.7 kg
• Operating temperature: 0°C to 40°C
• Operating humidity: 5% to 90% (non-condensing)
• Certifications: CE, FCC, RoHS, WEEE, NDAA
• Warranty: 1 year
