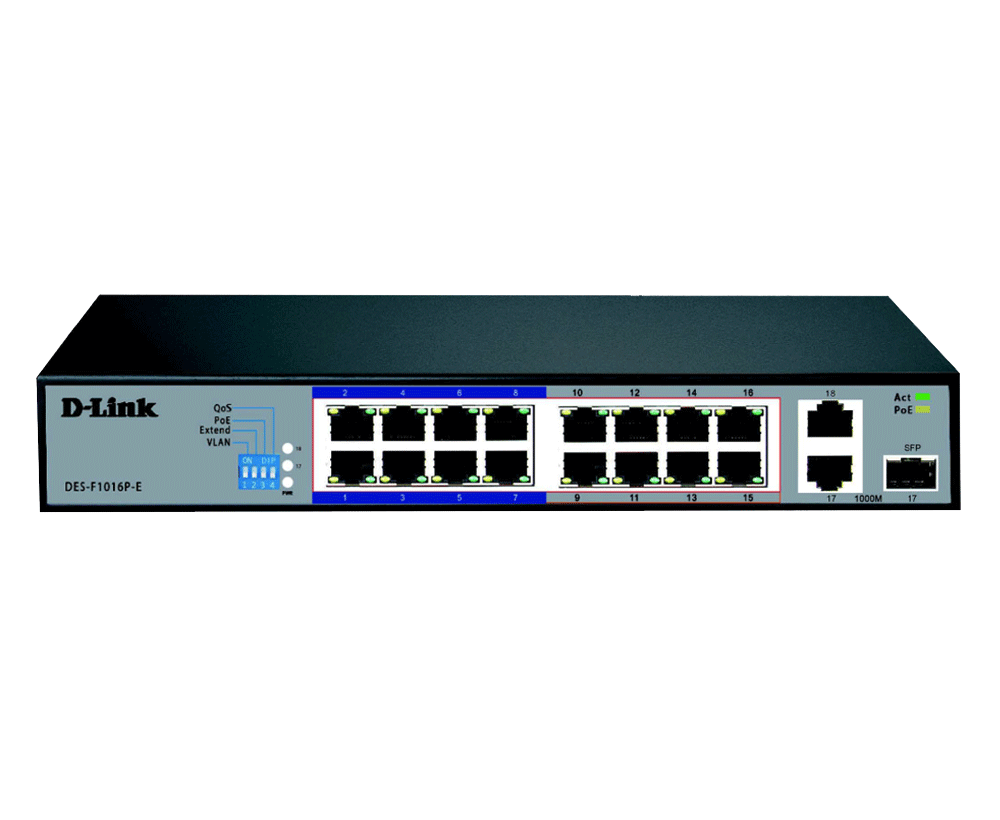

D-Link DES-F1016P-E 16-port Fast Ethernet Unmanaged Long Range 250m PoE+ Surveillance Switch
D-Link DES‑F1016P‑E is a high-performance D-Link switch designed to support surveillance networks and long-distance PoE deployments. As one of the most reliable networking switches for small and medium businesses, this plug-and-play unmanaged switch features 16 Fast Ethernet PoE ports with a generous 150 W power budget, ideal for IP cameras and wireless access points. With long-range PoE support up to 250 m, fanless silent operation, and dual Gigabit uplinks, this switch ensures flexible, stable, and energy-efficient network expansion.
Product Features
Long-range PoE+ support
Supports IEEE 802.3af/at PoE standards with a total power budget of 150 W, delivering both data and power up to 250 meters over Cat5e/Cat6 cabling.
Unmanaged plug-and-play operation
No setup required—connect and power devices instantly, making it an ideal solution for quick deployment of D-Link switches in surveillance and small business environments.
Versatile port options
Equipped with 16 Fast Ethernet PoE ports and two Gigabit uplinks (1 RJ-45, 1 combo RJ-45/SFP) for reliable and scalable networking switches performance.
Data protection and stability
Supports IEEE 802.3x flow control to prevent packet loss and auto MDI/MDIX for cable type flexibility.
Silent and energy-saving design
Fanless operation ensures quiet performance and reduced energy consumption, enhancing durability and lowering maintenance needs.
Product Specifications
- 16 × 10/100 Mbps Fast Ethernet PoE RJ-45 ports
- 2 × Gigabit uplink ports (1 RJ-45, 1 combo RJ-45/SFP)
- Supports IEEE 802.3af/at PoE standards
- Total PoE power budget: 150 W
- PoE range: Up to 250 m over Cat5e/Cat6
- Switching capacity: 7.2 Gbps
- Forwarding rate: 3.868 Mpps
- IEEE 802.3x flow control
- Auto MDI/MDIX on all ports
- LED indicators: Link/Activity, PoE, Power
- Built-in surge protection: 6 kV
- Fanless for silent operation
- Dimensions: 285 × 180 × 44 mm
- Weight: ~2.1 kg
- Power input: 100–240 VAC, 50–60 Hz
