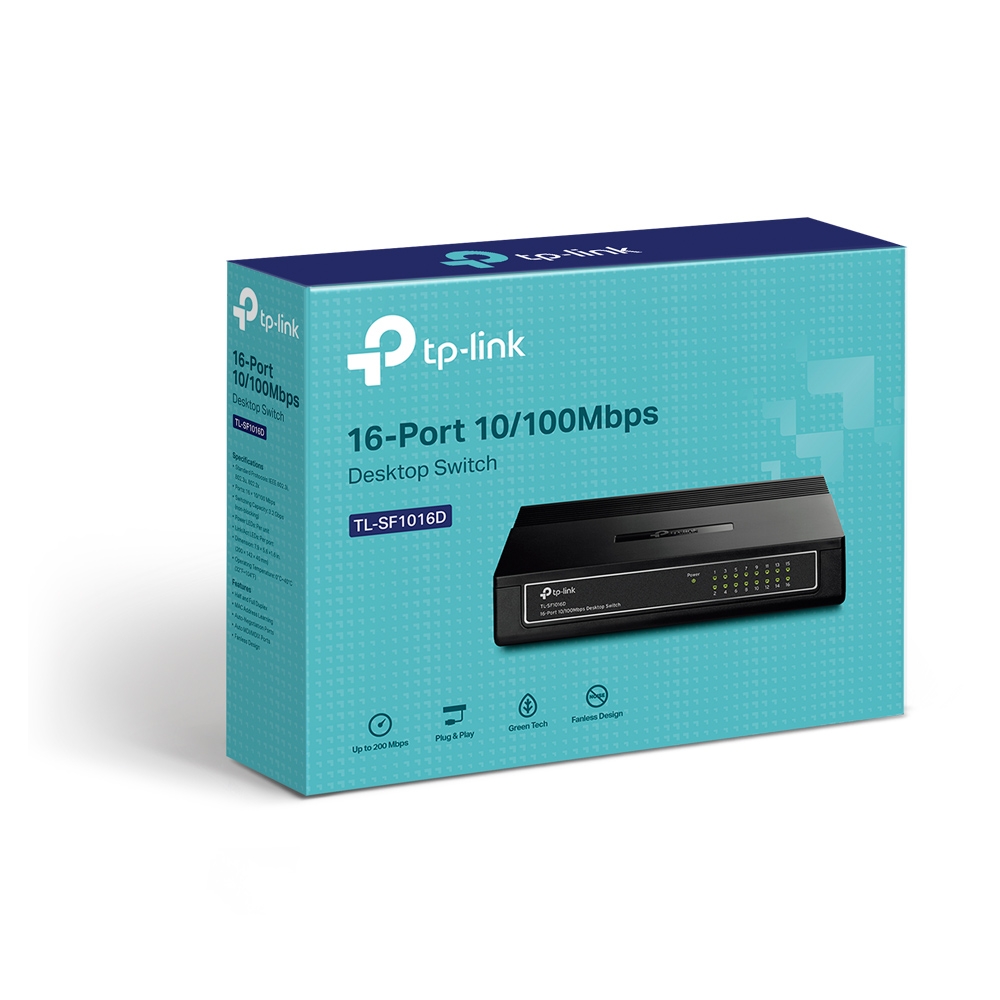

TL-SF1016D 16-Port 10/100Mbps Desktop Switch

TP-Link TL-SF1016D is a compact and energy-efficient networking switch designed for small businesses, home offices, and workgroups needing reliable wired connectivity. With 16 auto-negotiation Fast Ethernet ports, it enables seamless communication between devices like computers, printers, IP phones, and surveillance systems. As part of the high-quality TP-Link switches range, this model offers quiet, fanless operation, plug-and-play setup, and compliance with international standards—making it a dependable solution for expanding wired networks without added complexity.

Product Features

16 Fast Ethernet Ports
Equipped with 16× 10/100Mbps RJ45 ports, the switch automatically detects connected devices and adjusts the speed for optimal performance.

Fanless Silent Operation
Designed with a plastic housing and fanless cooling, this networking switch runs silently, ideal for noise-sensitive office environments.

Plug-and-Play Installation
The switch supports Auto MDI/MDIX, eliminating the need for crossover cables and requiring no configuration—just plug in and go.

Energy-Efficient Technology
Integrated power-saving features automatically reduce power consumption, making it an environmentally friendly and cost-effective choice.

Reliable TP-Link Performance
Built to TP-Link’s rigorous quality standards, the TL-SF1016D ensures consistent uptime and stable performance across all connected devices.

Product Specifications

• Ports: 16 × 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
• Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Switching Capacity: 3.2 Gbps
• MAC Address Table: 2K entries
• Flow Control: IEEE 802.3x full-duplex and backpressure for half-duplex
• Data Transfer Rates:
  – Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex)
  – Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex)
• Network Media:
  – 10Base-T: UTP Cat 3/4/5 (up to 100m), STP 100Ω
  – 100Base-TX: UTP Cat 5/5e (up to 100m), STP 100Ω
• Power Supply: External power adapter (Output: 9VDC / 0.6A)
• Housing: Plastic desktop casing
• Certifications: FCC, CE, RoHS
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
• Package Contents: TL-SF1016D Switch, Power Adapter, User Guide
