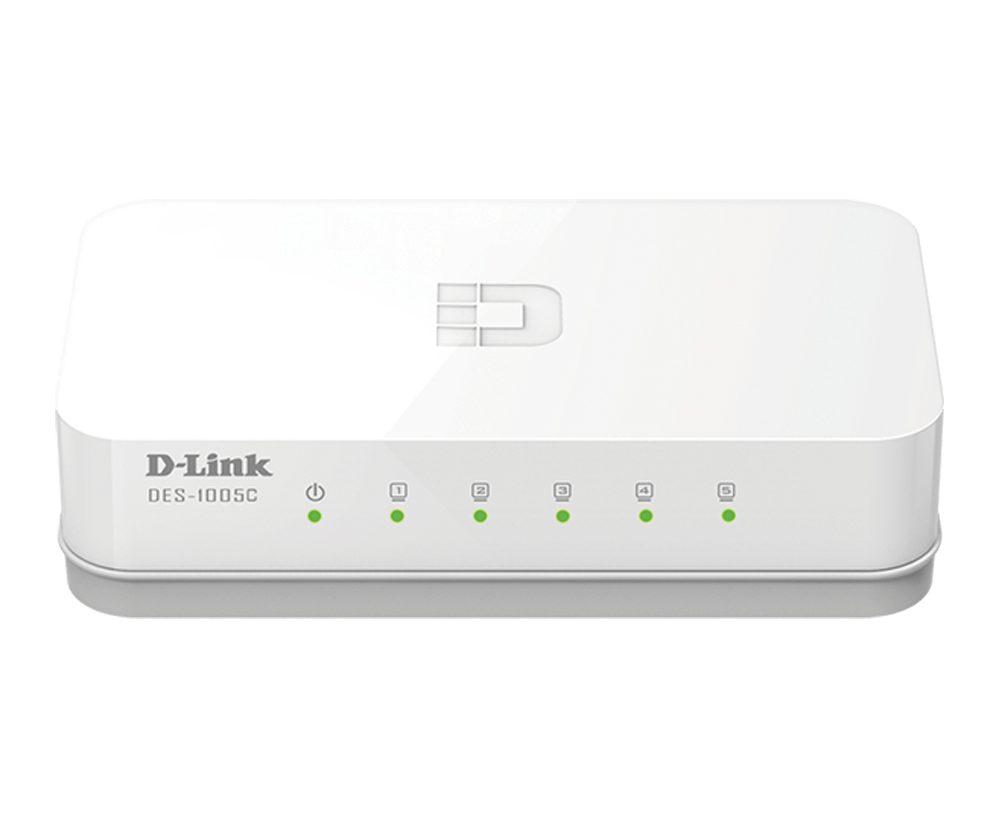

D-Link DES-1005C/B 5 port 10/100Base-T unmanged switch

D-Link DES‑1005C/B is a compact, plug-and-play desktop solution from the D-Link switches range, designed for home users, small offices, and multimedia environments. This fanless switch offers five Fast Ethernet ports that support full-duplex speeds of up to 200 Mbps per port, ensuring efficient wired connectivity. As part of the networking switches family, it provides reliable performance, low power consumption, and essential features for smooth streaming, file sharing, and gaming—all without any configuration hassle.

Key features

• Fast Ethernet performance with 10/100 Mbps support per port and up to 200 Mbps in full-duplex mode
• Energy-Efficient Ethernet (IEEE 802.3az) to reduce power usage on idle ports or short cables
• Auto MDI/MDIX for simplified setup—no need for crossover cables
• Auto-negotiation ensures optimal speed and duplex mode per connection
• 802.3x flow control provides stable data transfer and prevents packet loss during heavy traffic
• Silent fanless design, ideal for noise-sensitive areas like media rooms and home offices
• LED indicators for port activity, speed, and power status to aid network monitoring

Technical specifications

• 5 × 10/100 Mbps RJ‑45 ports with Auto MDI/MDIX
• Switching capacity: 1 Gbps backplane
• Forwarding rate: 148,800 pps per port
• MAC address table: 2,000 entries
• Buffer memory: 96 KB shared
• Jumbo frames: Supports up to 2048 bytes
• Power consumption: Max 0.784 W; standby 0.4 W
• Power input: 5 V DC/0.55 A
• Dimensions: 88 × 48 × 21 mm
• Weight: 43 g
• Operating temperature: 0–40 °C; humidity: 10–90 % RH non‑condensing
