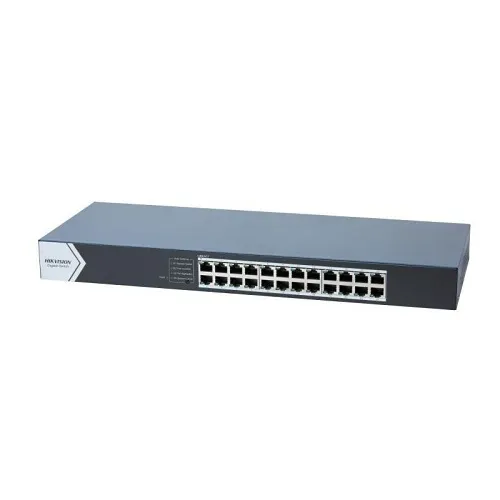

Hikvision DS-3E0524-E(C) 24-Port Gigabit Switch

Hikvision DS-3E0524-E(C) 24-Port Gigabit Unmanaged Network Switch is a high-performance and scalable networking solution designed for business environments, enterprise networks, and surveillance systems. With 24 Gigabit Ethernet ports, it delivers fast, stable, and reliable data transmission for devices such as NVRs, IP cameras, servers, and workstations. Its plug-and-play design ensures easy deployment without configuration, while the durable metal housing and fanless operation provide long-term reliability and silent performance in professional installations.

Product Features

24 Gigabit Ethernet Ports

Provides 24 × 10/100/1000 Mbps RJ45 ports for high-speed connectivity across multiple network devices.

Unmanaged Plug-and-Play Operation

No configuration is required, enabling quick installation and immediate operation.

High Switching Performance

Offers a switching capacity of up to 48 Gbps, ensuring smooth, non-blocking data transmission.

Store-and-Forward Switching Technology

Improves network reliability by checking data packets before forwarding them.

Fan-Free Silent Design

Designed with a fanless architecture for quiet operation, ideal for office and indoor environments.

Durable Metal Housing

Built with a robust metal enclosure to enhance durability and heat dissipation.

Rack-Mountable Design

Supports standard 1U rack installation for organized and professional network setups.

Energy-Efficient Operation

Optimized for low power consumption to reduce operational costs without compromising performance.

6 kV Surge Protection

Provides protection against lightning and electrical surges, safeguarding connected devices.

Wide Compatibility

Compatible with a wide range of Ethernet-enabled devices including IP cameras, NVRs, PCs, and routers.

Product Specifications

• Ports: 24 × 10/100/1000 Mbps RJ45 ports
• Switching capacity: 48 Gbps
• Packet forwarding rate: 35.7 Mpps
• MAC address table: 8K entries
• Internal cache: 4.1 Mbits
• Network standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Transmission mode: Store-and-forward
• Surge protection: 6 kV
• Power supply: 100–240 VAC, 50/60 Hz
• Max power consumption: ≤ 18 W
• Operating temperature: 0°C to 40°C
• Storage temperature: -40°C to 85°C
• Operating humidity: 5% to 95% non-condensing
• Dimensions: 440 × 44 × 220 mm
• Installation: Rack-mount (1U) or desktop
• Enclosure: Metal, fanless design
