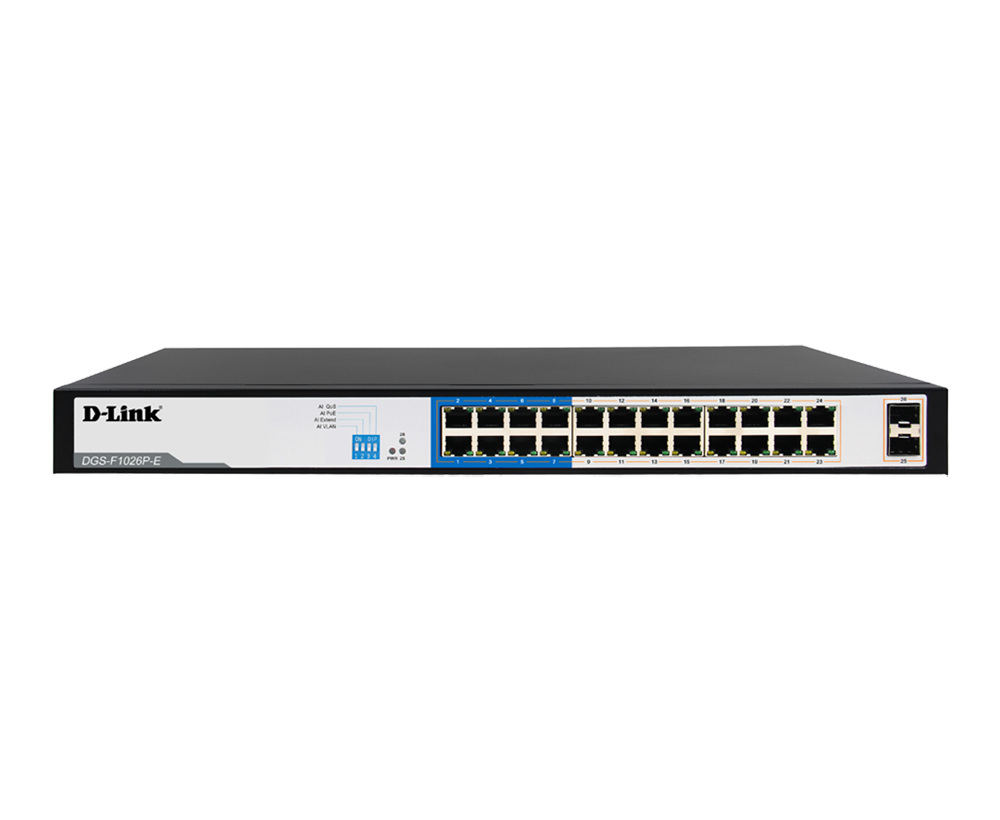

D-link 26-Port Gigabit PoE Switch with 24 PoE+ Ports (8 Long Reach 250m) and 2 SFP Uplink Ports (DGS-F1026P)

D-Link DGS-F1026P is a high-performance unmanaged switch designed for modern IP surveillance, wireless access, and VoIP networks. This D-Link switch features 24 Gigabit PoE+ ports supporting up to 30W per port, with a total PoE power budget of 250W. Additionally, two SFP uplink ports offer fibre or copper connectivity for reliable backhaul. Ideal for small to medium enterprises in Kenya, networking switches offer long-reach PoE up to 250 meters on ports 1–8, integrated surge protection, and a rugged rack-mountable metal chassis for stable operation in demanding conditions.

Product Features

250W PoE+ power supply
Delivers up to 30W per port across 24 ports, supporting IEEE 802.3af/at standards—ideal for powering IP cameras, access points, and VoIP phones.

Long-reach PoE on eight ports
Ports 1–8 support extended PoE and data transmission up to 250 meters at 10Mbps, suitable for long-distance camera or access point installations.

Dual Gigabit SFP uplinks
Two dedicated SFP ports allow for high-speed, interference-free fibre or copper uplink connections.

52Gbps switching capacity
Wire-speed switching with a 38.7Mpps forwarding rate ensures smooth handling of high-bandwidth traffic across enterprise networks.

Built-in 6kV surge and ESD protection
Safeguards all copper ports against electrical damage from lightning or static discharge, enhancing equipment longevity.

Unmanaged design with smart DIP functions
Plug-and-play operation with VLAN isolation, PoE auto-recovery, QoS prioritization, and extend mode via physical DIP switches.

Energy-efficient operation
IEEE 802.3az Energy-Efficient Ethernet compliance reduces power usage during periods of low traffic.

Product Specifications

• 24 × 10/100/1000 Mbps PoE+ RJ‑45 ports
• 2 × 100/1000 Mbps SFP uplink ports
• IEEE 802.3af/at/ab/u/i, IEEE 802.3az, IEEE 802.3x compliance
• 250W total PoE budget; up to 30W per port
• Extend mode: 250m on ports 1–8 (10Mbps)
• Switching capacity: 52Gbps; forwarding rate: 38.7Mpps
• MAC address table: 8K dynamic entries
• Full/half-duplex flow control with backpressure support
• 6kV surge/ESD protection on copper ports
• Internal power input: 100–240V AC, 50/60Hz; max ~280W
• 1U rack-mountable, metal chassis with fan cooling
• Dimensions: 440 × 180 × 44 mm; Weight: ~3.0 kg
