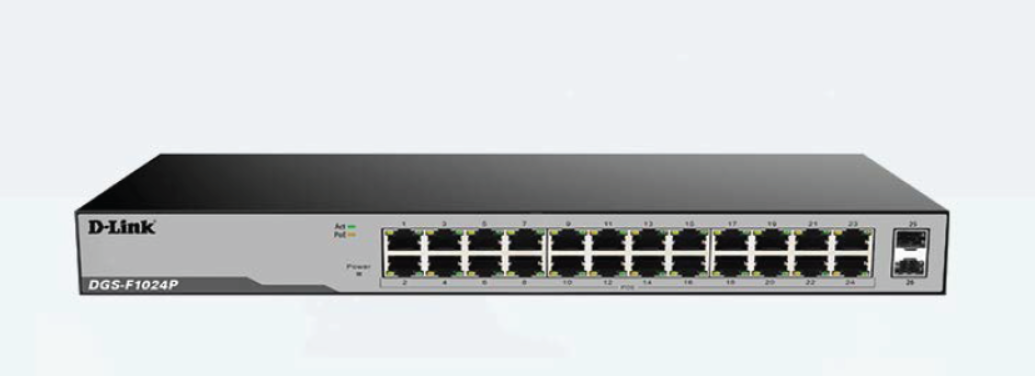

D-link 24-Port Gigabit Unmanaged PoE Switch with 24 PoE Ports and 2 SFP Uplink Ports (DGS-F1024P)

D-Link DGS-F1024P is a high-performance solution from the D-Link switches lineup, purpose-built for businesses seeking reliable and cost-effective networking switches. It features 24 Gigabit PoE ports and 2 SFP uplinks, offering seamless power and data delivery for IP devices such as cameras, VoIP phones, and access points. Ideal for surveillance and SMB environments, this D-Link switch simplifies deployment with plug-and-play functionality, long-reach PoE support, and energy-efficient operation.

Product Features

• Gigabit PoE for high-density deployments
  24 PoE+ Gigabit ports deliver up to 30W per port with a total power budget of 250W, ideal for powering IP cameras and other networked devices.
• Two SFP uplink ports for fiber expansion
  Includes 2 dedicated SFP slots for uplinks, allowing high-speed backbone connections over fiber to reduce latency and extend network range.
• Extended PoE up to 250 meters
  Ports 1–8 support long-reach PoE, delivering both data and power over extended distances for remote installations.
• Smart traffic management
  Equipped with flow control, auto MDI/MDIX, and 8,000 MAC address support to ensure stable and efficient traffic across the switch.
• Fanless metal enclosure
  Durable metal housing with passive cooling design ensures silent operation, suitable for office and industrial use.
• Energy-efficient performance
  Complies with IEEE 802.3az for reduced energy consumption during low traffic periods.
• Built-in surge protection
  Offers 6kV lightning protection on Ethernet ports to safeguard connected devices and ensure network reliability.

Product Specifications

• Brand: D-Link
• Model: DGS-F1024P
• Ports: 24 × 10/100/1000 Mbps PoE+ RJ45, 2 × 100/1000 Mbps SFP uplinks
• PoE Budget: 250W total (up to 30W per port)
• Standards: IEEE 802.3af/at, IEEE 802.3az
• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.7 Mpps
• MAC Table: 8,000 entries
• Surge Protection: 6kV
• Dimensions: 440 × 181 × 44 mm
• Weight: 2.7 kg
• Power Supply: Built-in AC (100–240V, 50/60Hz)
• Operating Temperature: 0°C to 40°C
• Mounting: Rack-mountable
