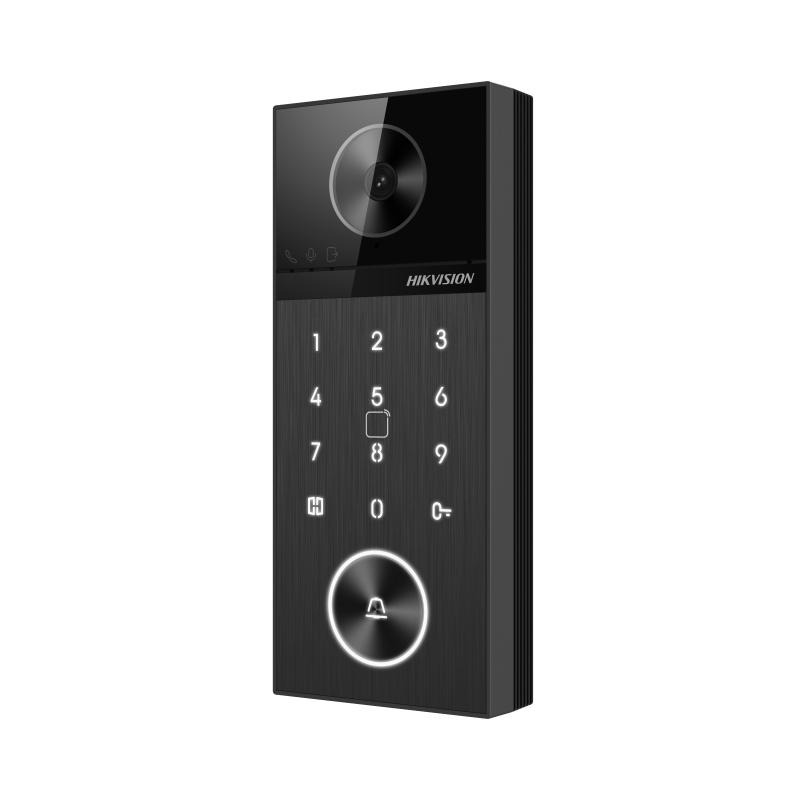

Hikvision DS-KV6124-WBE1 – WiFi IP Video Door Station

Hikvision DS-KV6124-WBE1 WiFi IP Video Door Station is an advanced IP video intercom solution designed for villas, private residences, gated communities, and commercial properties. Featuring a 4 MP HD camera with a 150° ultra-wide viewing angle, built-in Wi-Fi 6, IEEE 802.3at Power over Ethernet (PoE), and an integrated keypad with MIFARE card reader, this smart door station provides secure visitor management and flexible access control. Users can unlock doors using PIN codes, MIFARE cards, Bluetooth, the Hik-Connect mobile app, or a compatible Hikvision indoor station. With IP65 weather protection, remote web configuration, and seamless integration with Hikvision video intercom systems, the DS-KV6124-WBE1 delivers reliable security and convenience for modern smart buildings.

Product Features

4 MP High-Definition Camera

The built-in 4 MP camera captures sharp, detailed video, allowing users to clearly identify visitors during both daytime and nighttime operation for enhanced security.

150° Ultra-Wide Viewing Angle

A 150° wide-angle lens provides extensive coverage of the entrance area, reducing blind spots and ensuring a comprehensive view of visitors approaching the property.

Multiple Secure Unlocking Methods

The door station supports several authentication methods, including MIFARE cards, PIN codes, Bluetooth, the Hik-Connect mobile application, and compatible indoor stations, offering flexible and secure access control for homeowners and businesses.

Built-In Wi-Fi 6 and PoE Support

Integrated Wi-Fi 6 enables fast and reliable wireless networking, while IEEE 802.3at Power over Ethernet allows power and data to be transmitted through a single Ethernet cable, simplifying installation.

Two-Way Audio Communication

A built-in microphone and speaker support full-duplex audio with noise suppression and echo cancellation, enabling clear conversations between visitors and occupants.

Dual Lock Control

The DS-KV6124-WBE1 features two relay outputs, allowing independent control of two doors or gates, making it suitable for residential compounds and commercial entrances.

Video Recording and Playback

Visitor video recordings can be viewed through the Hik-Connect mobile app or a web browser, allowing users to review visitor activity and security events remotely.

Durable Outdoor Design

Designed for outdoor environments, the IP65-rated enclosure protects the unit against dust and rain, ensuring dependable performance in various weather conditions.

Remote Web Configuration

Administrators can configure and manage the door station remotely through a web browser, simplifying installation, maintenance, and firmware management.

Seamless Hikvision System Integration

The door station integrates with Hikvision indoor monitors, access control systems, Hik-Connect, and security management platforms to provide a complete smart entry solution.

Product Specifications

• Model: Hikvision DS-KV6124-WBE1
• Product Type: WiFi IP Video Door Station
• Camera Resolution: 4 MP
• Viewing Angle: 150° Horizontal
• Video Compression: H.264, H.265
• Audio: Built-in Microphone and Loudspeaker
• Audio Features: Full-Duplex Audio, Noise Suppression, Echo Cancellation
• Call Button: 1 Physical Call Button
• Integrated Keypad: Yes
• Card Reader: Built-in 13.56 MHz MIFARE Card Reader
• Unlock Methods:
  • MIFARE Card
  • PIN Code
  • Bluetooth
  • Hik-Connect Mobile App
  • Indoor Station
• Lock Control: 2 Relay Outputs
• Network Interface: 1 × RJ45 10/100 Mbps Ethernet
• Wireless Connectivity: Wi-Fi 6 (IEEE 802.11ax)
• Communication Protocols: TCP/IP, SIP, RTSP
• Remote Configuration: Web Browser
• Mobile App Support: Hik-Connect
• Video Recording and Playback: Supported via Hik-Connect and PC Web Interface
• Power Supply: 12 V DC or IEEE 802.3at PoE
• Protection Rating: IP65
• Installation Type: Surface Mount
• Operating Temperature: -40°C to 53°C
• Operating Humidity: 10% to 95% Non-Condensing
• Application: Villas, Private Homes, Offices, Residential Estates, Gated Communities, and Small Commercial Buildings
• Compatibility: Hikvision IP Video Intercom Systems, Hik-Connect, and Hikvision Access Control Solutions
• Certifications: CE, FCC, RoHS (Region Dependent)
