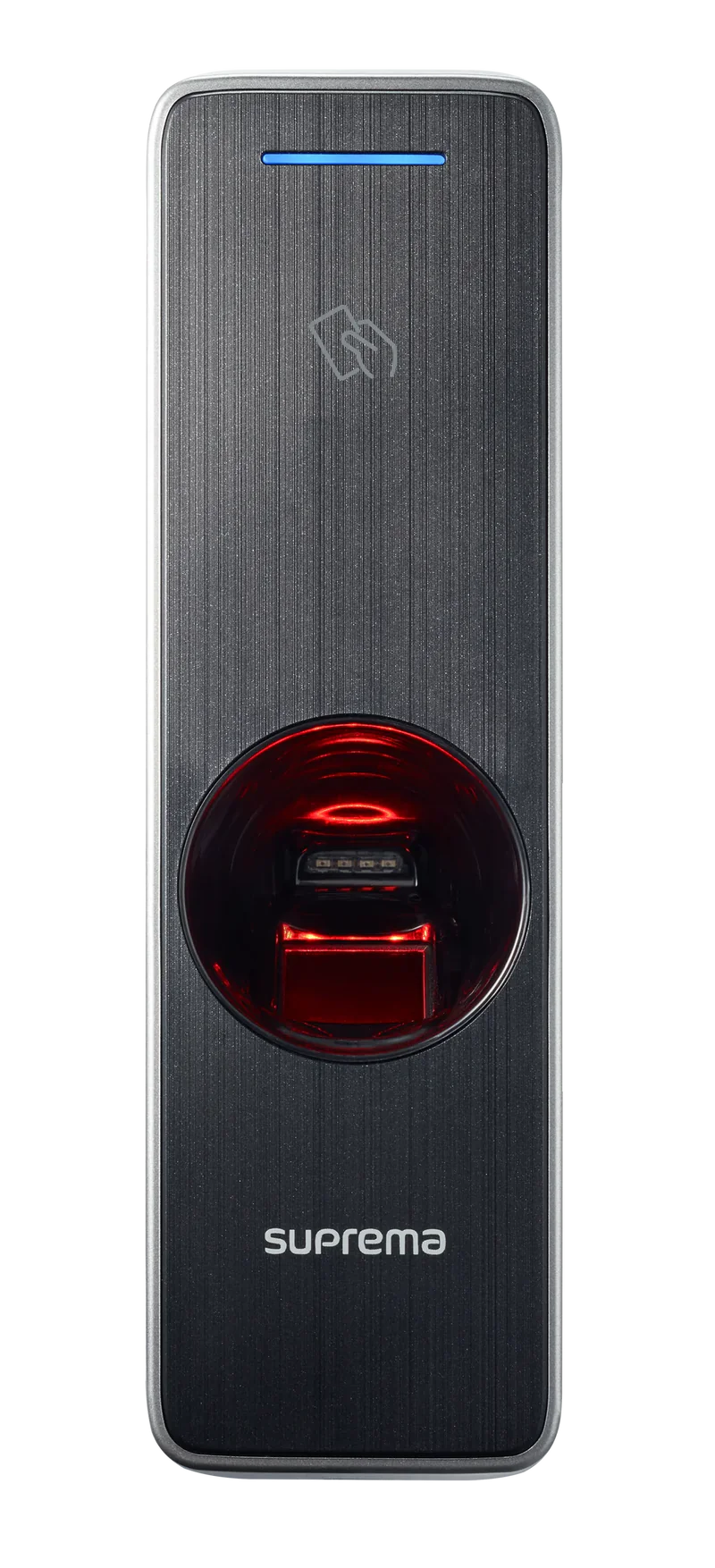

Suprema BEW2-ODPB Outdoor IP Fingerprint Reader

The Suprema BEW2-ODPB BioEntry W2 is a high-performance fingerprint access control device designed for outdoor environments. It combines advanced biometric technology with durable construction for secure access control.

Specifications

Biometric Features:

• Fingerprint Sensor: High-precision optical sensor with advanced Live Finger Detection (LFD) for secure authentication.

Performance:

• Processor: 1.2 GHz Quad-core CPU for fast fingerprint matching and response times.

Card Compatibility:

• RFID Support: Dual-frequency (125 kHz & 13.56 MHz) RFID technology.
• Compatible Card Standards: MIFARE, HID iCLASS, DESFire, FeliCa, HID Prox, EM, NFC.

Durability:

• Vandal Resistance: IK09-rated housing for high-impact resistance.
• Ingress Protection: IP67-rated for complete protection against dust and water.

Electrical Specifications:

• Power Supply: 12V DC.
• Power Consumption: 600 mA.

Physical Specifications:

• Dimensions: 50 mm (W) x 172 mm (H) x 43.5 mm (D).
• Weight: Approximately 251 grams.

Environmental Specifications:

• Operating Temperature: -20°C to 50°C (-4°F to 122°F).
• Operating Humidity: 0% to 80% non-condensing.

Interfaces:

• Communication: TCP/IP, RS-485, Wiegand.
• Relay: Built-in relay for direct lock control.
• Inputs: Two inputs for door sensor and exit switch.

Additional Features:

• PoE Support: Power over Ethernet (PoE) for easy installation.
• LED Indicator: Multi-color LED & buzzer for user feedback.

Frequently Asked Questions (FAQs)

What is the BioEntry W2?

The Suprema BioEntry W2 is a fingerprint access control device designed for secure, outdoor use. It integrates advanced biometric security with durable construction.

What are the key features?

• Fast Performance: 1.2GHz Quad-core CPU for quick response times.
• Durable Design: IK09-rated impact resistance & IP67-rated water/dust protection.
• Multi-Smartcard Support: Works with both 125kHz & 13.56MHz RFID cards.
• Live Finger Detection: Detects fake fingerprints made from various materials.

Is the BioEntry W2 suitable for outdoor use?

Yes. With its IP67 rating (dust/waterproof) and IK09 rating (impact resistance), it is designed for harsh outdoor conditions.

What communication interfaces does it support?

The device supports TCP/IP, RS-485, and Wiegand, allowing integration with various access control systems.

Does it support Power over Ethernet (PoE)?

Yes, it supports PoE, enabling power and data transmission through a single Ethernet cable.

How many users can it accommodate?

The BioEntry W2 can store up to 500,000 users, making it ideal for large-scale installations.

What is Live Finger Detection (LFD) technology?

LFD distinguishes between real fingerprints and fake ones made from materials like clay, rubber, or paper, enhancing security.

What are its dimensions?

The device measures 50 mm (W) x 172 mm (H) x 43.5 mm (D).

Where can I find the user manual?

The user manual is available online for installation, configuration, and operation guidance.

What certifications does it have?

The BioEntry W2 is certified with CE, FCC, KC, REACH, and WEEE for compliance with international standards.

This device is an excellent choice for secure and efficient access control in outdoor environments.
