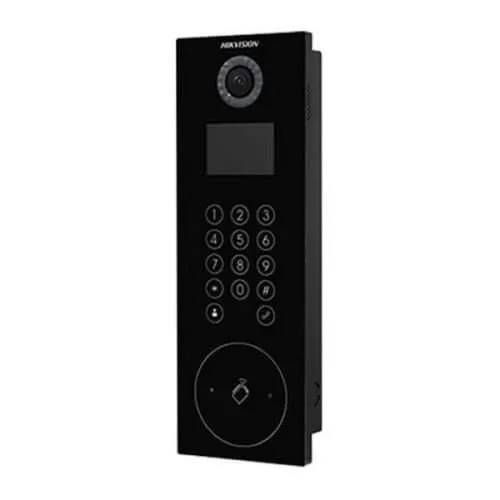

Hikvision DS-KD8103-E6 Video Intercom Door Station

Hikvision DS-KD8103-E6 Video Intercom Door Station is a high-performance IP-based outdoor unit designed for secure and intelligent access control in residential and commercial environments. Featuring a built-in high-definition camera, multiple call buttons, and robust construction, it enables clear video communication between visitors and indoor stations. With support for advanced intercom functions, access control integration, and durable weather-resistant design, this door station is ideal for apartment buildings, offices, and gated facilities requiring reliable entry management.

Product Features

High-Definition Video Camera

Equipped with a high-resolution camera that provides clear video footage for accurate visitor identification and enhanced security.

Multi-Button Call Panel

Features multiple physical call buttons, allowing connection to different indoor stations, making it suitable for multi-tenant or multi-room applications.

IP-Based Intercom Communication

Supports TCP/IP communication for seamless integration with Hikvision indoor stations and centralized management systems.

Wide Dynamic Range Imaging

Includes WDR technology to ensure clear images in challenging lighting conditions such as backlight or low light environments.

Durable Outdoor Design

Built with weather-resistant materials and rated for outdoor use, ensuring reliable performance in harsh conditions.

Two-Way Audio Communication

Provides high-quality two-way audio with noise suppression and echo cancellation for clear communication with visitors.

Access Control Integration

Supports connection to door locks, exit buttons, and access control systems for complete entry management.

Modular System Compatibility

Part of Hikvision’s modular intercom system, allowing expansion with additional modules such as card readers or keypad units.

Night Vision Support

Integrated infrared illumination enables clear visibility in low-light or nighttime conditions.

Product Specifications

• Model: DS-KD8103-E6
• Camera: Built-in HD camera
• Video Compression: H.264
• Audio: Built-in microphone and speaker with noise suppression
• Call Buttons: 6 physical buttons
• Network Interface: 1 × RJ-45 (10/100 Mbps)
• Network Protocols: TCP/IP, SIP, RTSP
• Illumination: Infrared (IR) night vision
• Functions: Video intercom, access control, remote unlocking
• Interfaces: Door lock, exit button, alarm input/output
• Power Supply: 12 V DC or PoE (IEEE 802.3af)
• Power Consumption: ≤ 10 W
• Protection Level: IP65
• Operating Temperature: -40°C to 60°C
• Working Humidity: 10% to 95% (non-condensing)
• Installation: Flush mounting or surface mounting
• Application: Outdoor video intercom and access control for apartments, offices, and gated properties
