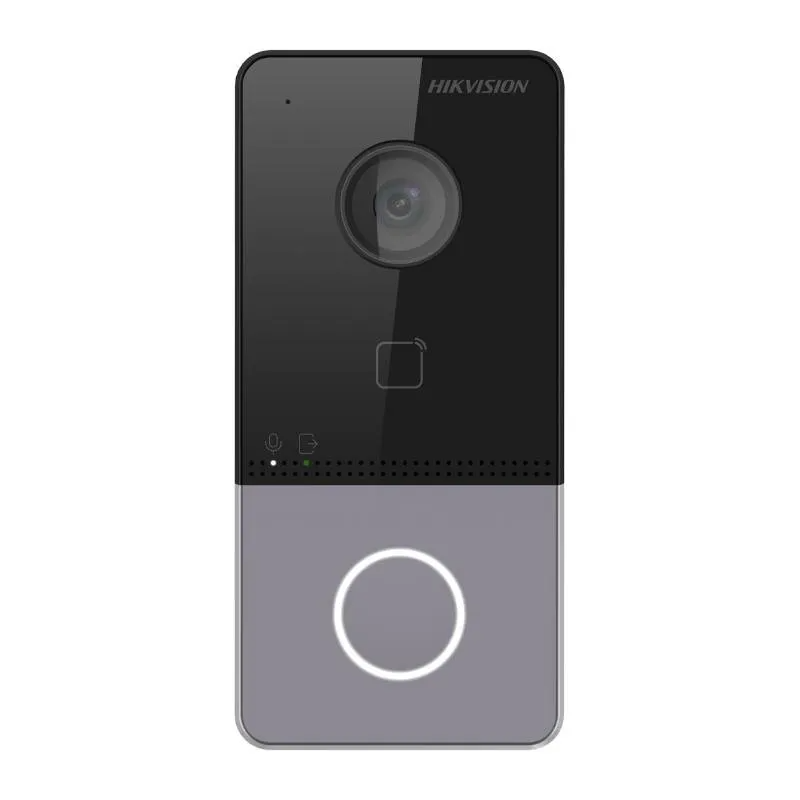

Hikvision DS-KV6113-WPE1(C) Plastic Villa Door Station

Hikvision DS-KV6113-WPE1(C) Plastic Villa Door Station is a compact IP-based video intercom and access control solution designed for villas, single residences, and small residential buildings. It combines a high-definition camera, built-in card reader, and one-touch calling functionality to provide secure and convenient visitor management. With support for PoE or DC power, Wi-Fi connectivity (model dependent), and Hik-Connect mobile integration, it enables remote communication and monitoring from anywhere, making it ideal for modern smart home security systems.

Product Features

2MP High-Definition Camera with IR Support

Features a 2-megapixel HD camera with infrared illumination for clear video capture in both day and night conditions.

One-Touch Calling Design

Simple single-button operation allows visitors to easily call the resident’s indoor station for quick communication.

Built-In Mifare Card Reader

Integrated card reader supports secure access control using compatible RFID cards for residents and authorized users.

IP65 Weatherproof Protection

Designed with IP65-rated housing to withstand dust, rain, and harsh outdoor environments for long-term reliability.

Noise Suppression and Echo Cancellation

Advanced audio processing ensures clear two-way communication between visitor and resident without distortion.

PoE and DC Power Support

Supports standard Power over Ethernet (PoE) and 12V DC power supply for flexible and simplified installation.

Wi-Fi Connectivity (Model Dependent)

Some variants support Wi-Fi for easier setup without extensive cabling requirements.

Mobile App Integration

Works with Hik-Connect mobile app for remote access, live viewing, and door unlocking from anywhere.

Compact and Modern Design

Slim plastic body designed for villa installations while maintaining durability and aesthetic appeal.

Product Specifications

• Model: DS-KV6113-WPE1(C)
• Camera: 2 MP HD camera
• Video Resolution: 1920 × 1080 (Full HD)
• Audio: Built-in microphone and speaker with noise suppression and echo cancellation
• Network: TCP/IP, RTSP
• Ethernet Port: 1 × RJ-45 (10/100 Mbps)
• Power Supply: 12 V DC or PoE (IEEE 802.3af)
• Power Consumption: Less than 10 W
• Protection Level: IP65
• Operating Temperature: -40°C to 55°C
• Operating Humidity: 10% to 95% (non-condensing)
• Installation: Surface mounting
• Access Control: Built-in Mifare card reader
• Call Method: One-touch call button
• Application: Residential villas, gated homes, small apartments
