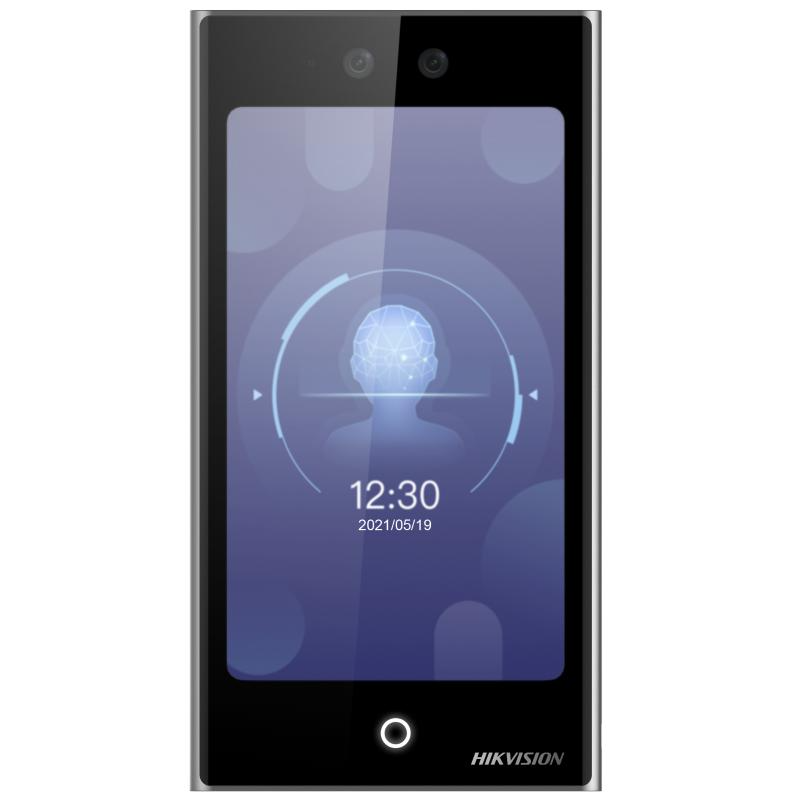

Hikvision Pro Face Access Terminal-DS-K1T673DWX

Hikvision DS-K1T673DWX Pro Face Access Terminal is a premium biometric access control solution built for high-security and high-traffic environments. Featuring a large 7-inch touchscreen, advanced deep learning facial recognition, and multi-factor authentication, it delivers fast, accurate, and contactless access management. With support for face, fingerprint, card, and PIN authentication, along with Wi-Fi connectivity and IP65-rated protection, this terminal is ideal for corporate offices, government institutions, industrial facilities, and commercial buildings requiring reliable and scalable security systems.

Product Features

Advanced Deep Learning Face Recognition

Delivers highly accurate facial recognition with an accuracy rate of over 99 percent and authentication speeds of less than 0.2 seconds per user for seamless access control.

Large 7-Inch IPS Touchscreen

Equipped with a responsive 7-inch capacitive touchscreen that provides clear visuals and intuitive system interaction.

Multi-Authentication Support

Supports face recognition, fingerprint authentication, M1, Felica, and DESFire card access, as well as PIN verification for flexible security options.

High User Capacity for Large Deployments

Stores up to 10,000 faces, 10,000 fingerprints, 50,000 cards, and 150,000 event records, making it suitable for enterprise-level installations.

Long-Range and Multi-Person Recognition

Supports face recognition distances from 0.3 m to 3 m and can recognize multiple users simultaneously (up to 5 people), improving throughput in busy areas.

Built-In Wi-Fi and Gigabit Network Support

Offers both wired Ethernet and 2.4 GHz Wi-Fi connectivity, ensuring flexible deployment and easy integration into existing networks.

Mask Detection and Anti-Spoofing

Includes face mask detection and advanced anti-spoofing technology to prevent unauthorized access using fake images or videos.

Integrated Access Control Interfaces

Supports door lock control, exit button, door contact, alarm input/output, RS-485, and Wiegand interfaces for seamless system integration.

Durable Outdoor-Ready Design

Built with IP65 protection, ensuring reliable performance in harsh indoor and outdoor environments.

Product Specifications

• Model: DS-K1T673DWX
• Display: 7-inch IPS LCD capacitive touchscreen
• Camera: Dual-lens, 2 MP wide-angle
• Authentication Methods: Face, fingerprint, card (M1, Felica, DESFire), PIN
• Face Capacity: Up to 10,000 faces
• Fingerprint Capacity: Up to 10,000 fingerprints
• Card Capacity: Up to 50,000 cards
• Event Capacity: Up to 150,000 records
• Face Recognition Distance: 0.3 m to 3 m
• Recognition Speed: < 0.2 seconds per user
• Accuracy Rate: ≥ 99%
• Multi-Person Recognition: Up to 5 people simultaneously
• Network Interface: 1 × RJ-45 (10/100/1000 Mbps), Wi-Fi (2.4 GHz)
• Interfaces: USB, RS-485, Wiegand, door lock, exit button, door contact, alarm input/output, tamper alarm
• Audio: Built-in omnidirectional microphone, audio output interface
• Power Supply: 12 V DC to 24 V DC, 2 A
• Operating Temperature: -30°C to 60°C
• Working Humidity: 0 to 90% (non-condensing)
• Protection Level: IP65
• Dimensions: 110.5 mm × 209.2 mm × 24 mm
• Installation: Wall mounting
• Application: Indoor and outdoor use
