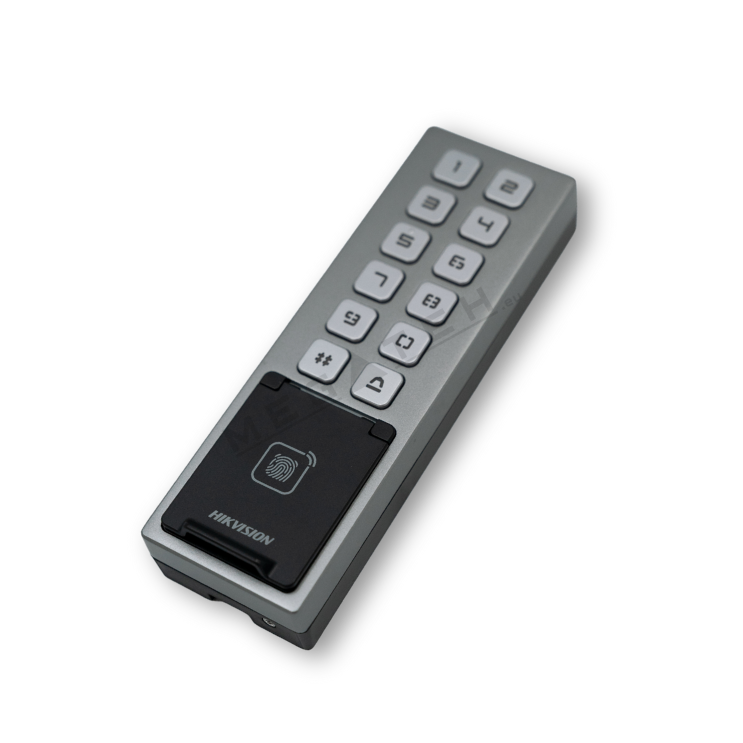

Hikvision DS-K1T805MBFWX Access Control Terminal

Hikvision DS-K1T805MBFWX Access Control Terminal is a robust and intelligent biometric solution designed for secure door access in offices, commercial buildings, and industrial environments. Combining fingerprint recognition, card authentication, PIN, and Bluetooth access, this terminal offers flexible and reliable identity verification. With its IP65-rated weatherproof design, wireless connectivity options, and seamless integration with Hikvision platforms such as Hik-Connect, it delivers advanced security and convenient remote management for modern access control systems.

Product Features

Multiple Authentication Methods

Supports fingerprint, card, PIN, and Bluetooth authentication for flexible and secure access control.

High-Capacity User Storage

Stores up to 3,000 fingerprints, 10,000 cards, and 100,000 event records, suitable for medium to large deployments.

IP65 and IK08 Protection

Designed with high-level weatherproof and vandal-resistant protection, making it suitable for both indoor and outdoor installations.

Built-in M1 Card Reader

Integrated card reader supports M1 cards for convenient and fast access control.

Wireless and Wired Connectivity

Supports Wi-Fi, Bluetooth, and 10/100 Mbps Ethernet for flexible network deployment.

Mobile App Integration

Compatible with Hik-Connect for remote access management, monitoring, and configuration via mobile devices.

Web-Based Configuration

Allows easy setup and management via PC web interface or mobile web browser.

Fast Fingerprint Recognition

Equipped with an optical fingerprint module for quick and accurate identification within one second.

Slim Metal Design

Compact and durable metal construction ensures long-lasting performance and modern aesthetics.

Comprehensive Access Interfaces

Supports door control, alarm input/output, exit button, and RS-485 integration for complete access control system deployment.

Product Specifications

• Authentication methods: Fingerprint, card, PIN, Bluetooth
• Fingerprint capacity: 3,000
• Card capacity: 10,000
• Event capacity: 100,000
• Card type: M1 card
• Fingerprint module: Optical fingerprint module
• Recognition time: < 1 second
• Network: 10/100 Mbps Ethernet
• Wi-Fi: 2.4 GHz (802.11 b/g/n)
• Bluetooth: Supported
• Interfaces: RS-485, Wiegand (26/34), lock control, exit button, alarm I/O
• Power supply: 12 V DC, 1 A
• Power consumption: ≤ 12 W
• Protection level: IP65, IK08
• Operating temperature: -30°C to 60°C
• Operating humidity: 0% to 90% non-condensing
• Dimensions: 57.7 × 177 × 34.6 mm
• Installation: Wall-mounted
• Material: Metal housing
