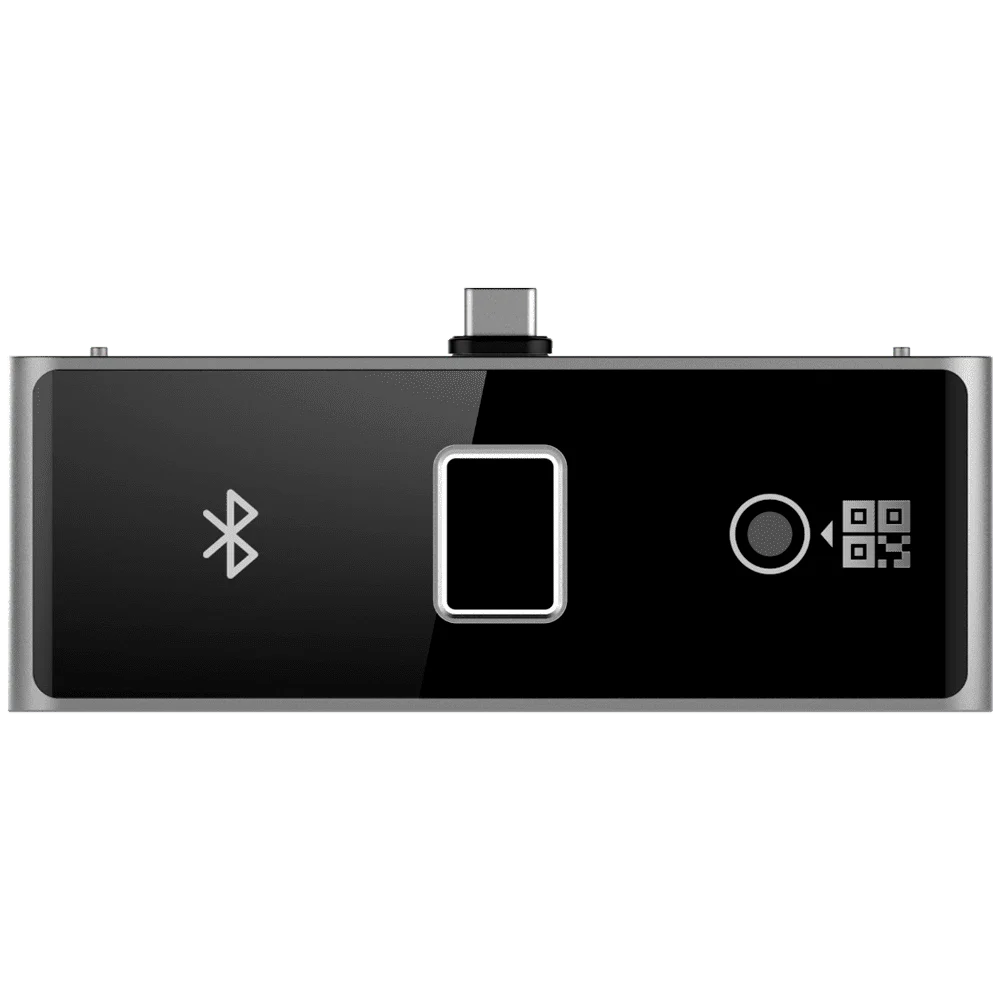

Hikvision DS-KAB673-FBQR Accessories for DS-K1T673

Hikvision DS-KAB673-FBQR is a dedicated peripheral accessory module designed to extend the functionality of Hikvision DS-K1T673 series face recognition access control terminals. It adds additional authentication methods such as fingerprint, QR code, barcode, and Bluetooth, enhancing system flexibility and security. The module connects via USB and is engineered for reliable indoor and outdoor use, making it suitable for advanced access control deployments in commercial, institutional, and high-security environments.

Product Features

Multi-Authentication Expansion Module

Adds multiple identity verification methods including fingerprint scanning, QR code recognition, barcode reading, and Bluetooth authentication to compatible DS-K1T673 terminals.

USB Plug-and-Play Connectivity

Connects directly to supported access control terminals through a USB interface, enabling simple integration without complex configuration.

High-Security Access Options

Supports advanced authentication modes such as fingerprint recognition and QR-based access, improving flexibility and strengthening security control systems.

Wide Barcode Compatibility

Capable of reading multiple barcode formats including Code 128, Code 39, Interleaved 2 of 5, and UCC/EAN-128 for visitor or credential management.

Outdoor-Ready Protection

Designed with IP65 environmental protection, allowing stable performance in dusty and wet conditions for both indoor and semi-outdoor installations.

Fast Verification Performance

Fingerprint recognition and authentication are processed in under 1 second, ensuring quick access and reduced waiting time.

Compact and Modular Design

Slim and lightweight design allows easy installation alongside DS-K1T673 terminals without affecting the main device’s aesthetics or usability.

Product Specifications

• Model: DS-KAB673-FBQR
• Product Type: Peripheral accessory module for access control terminals
• Compatibility: Hikvision DS-K1T673 series
• Connection Interface: USB
• Power Supply: 5 V DC via USB (up to 500 mA)
• Authentication Methods: Fingerprint, QR code, barcode, Bluetooth
• Barcode Support: Code 128, Code 39, Interleaved 2 of 5, Matrix 2 of 5, Codebar, UCC/EAN-128
• Fingerprint Verification Time: < 1 second
• Protection Level: IP65
• Operating Temperature: -30°C to 60°C
• Operating Humidity: 0% to 90% (non-condensing)
• Dimensions: Approx. 110.5 mm × 40 mm × 23.7 mm
• Application: Access control expansion for Hikvision DS-K1T673 terminals
