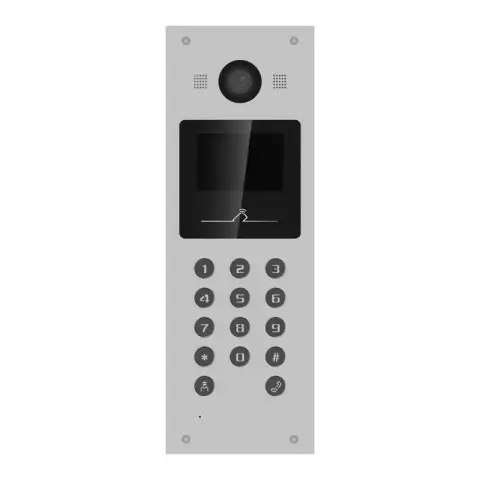

Hikvision 3.5inch IP Door Station – DS-KD3003-E6(O-STD)

Hikvision DS-KD3003-E6(O-STD) 3.5-inch IP Video Intercom Door Station is a compact and intelligent outdoor unit designed for secure access control and communication. Featuring a built-in 3.5-inch color display, high-definition camera, and multiple call buttons, it enables efficient visitor interaction and identity verification. With IP-based connectivity, durable weatherproof construction, and seamless integration with Hikvision indoor stations, this door station is ideal for apartments, offices, and small commercial installations requiring reliable and modern entry management.

Product Features

3.5-Inch Color Display

Equipped with a built-in 3.5-inch screen that provides clear visual feedback, call information, and user-friendly interaction.

High-Definition Video Camera

Features an integrated HD camera that ensures clear video capture for accurate visitor identification and enhanced security.

Multi-Button Call Functionality

Includes multiple physical call buttons for connecting to different indoor stations, making it suitable for multi-user environments.

IP-Based Communication

Supports TCP/IP networking for seamless integration with Hikvision indoor stations and centralized intercom systems.

Wide Dynamic Range Imaging

Incorporates WDR technology to deliver clear images even in challenging lighting conditions such as strong backlight.

Infrared Night Vision

Built-in IR illumination allows the device to capture clear images in low-light or nighttime environments.

Durable Outdoor Construction

Designed with weather-resistant materials and IP65 protection, ensuring reliable operation in outdoor conditions.

Two-Way Audio Communication

Provides clear two-way audio with echo cancellation and noise suppression for effective communication with visitors.

Access Control Integration

Supports connection to door locks, exit buttons, and access control systems for secure and controlled entry.

Product Specifications

• Model: DS-KD3003-E6(O-STD)
• Display: 3.5-inch color screen
• Camera: Built-in HD camera
• Video Compression: H.264
• Audio: Built-in microphone and speaker with noise suppression
• Call Buttons: 3 physical buttons
• Network Interface: 1 × RJ-45 (10/100 Mbps)
• Network Protocols: TCP/IP, SIP, RTSP
• Illumination: Infrared (IR) night vision
• Functions: Video intercom, access control, remote unlocking
• Interfaces: Door lock, exit button, alarm input/output
• Power Supply: 12 V DC or PoE (IEEE 802.3af)
• Power Consumption: ≤ 10 W
• Protection Level: IP65
• Operating Temperature: -40°C to 60°C
• Working Humidity: 10% to 95% (non-condensing)
• Installation: Flush mounting or surface mounting
• Application: Outdoor video intercom and access control for residential and commercial use
