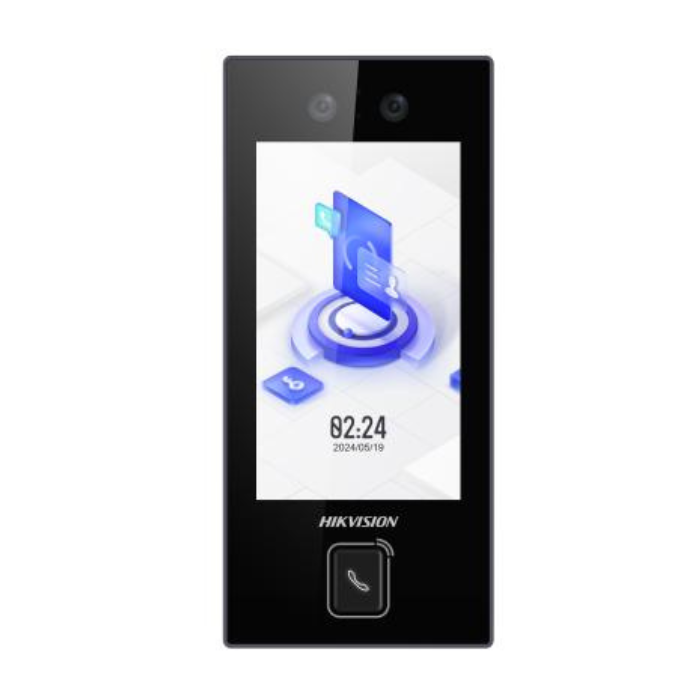

Hikvision DS-K1T344MBFWX-E1 Value Series Face Access Terminal

Hikvision DS-K1T344MBFWX-E1 Value Series Face Access Terminal is a reliable and cost-effective biometric access control solution designed for modern security environments. Built with advanced deep learning facial recognition technology, it delivers fast and accurate identification while supporting multiple authentication methods. With a 4.5-inch touchscreen, built-in Wi-Fi, and PoE support, this terminal is ideal for offices, schools, residential buildings, and commercial facilities requiring secure, efficient, and scalable access management.

Product Features

High-Accuracy Face Recognition Technology

Utilizes advanced deep learning algorithms to achieve facial recognition accuracy of over 99 percent with authentication speeds of less than 0.2 seconds per user.

Multiple Authentication Methods

Supports face recognition, fingerprint, M1 card, and PIN authentication, providing flexible and secure access control options.

Built-In Wi-Fi and Network Connectivity

Equipped with Wi-Fi, Bluetooth, and Ethernet connectivity for easy deployment and remote configuration via mobile or web platforms.

4.5-Inch Touchscreen Display

Features a responsive LCD touchscreen interface that enhances user interaction and simplifies system management.

Two-Way Audio Communication

Supports real-time audio communication with connected indoor stations and client software, improving security and visitor management.

QR Code and Anti-Spoofing Support

Includes QR code scanning and advanced anti-spoofing technology to prevent unauthorized access attempts using fake images or videos.

PoE Power and Door Lock Integration

Supports standard PoE (IEEE 802.3at) and can supply power to door locks, reducing installation complexity and cabling requirements.

Durable Outdoor-Ready Design

Designed with IP65 protection rating, making it suitable for both indoor and outdoor installations in varying environmental conditions.

Product Specifications

• Model: DS-K1T344MBFWX-E1
• Display: 4.5-inch LCD touchscreen
• Resolution: 480 × 854
• Camera: Dual-lens, 2 MP wide-angle
• Operating System: Linux
• Authentication Methods: Face, fingerprint, card (M1), PIN
• Face Capacity: Up to 3,000 faces
• Fingerprint Capacity: Up to 3,000 fingerprints
• Card Capacity: Up to 3,000 cards
• Event Capacity: Up to 150,000 records
• Face Recognition Distance: 0.3 m to 1.5 m
• Face Recognition Speed: < 0.2 seconds per user
• Accuracy Rate: ≥ 99%
• Network: TCP/IP (10/100 Mbps), Wi-Fi, Bluetooth
• Interfaces: USB, RS-485, Wiegand, alarm input/output, door lock, exit button
• Audio: Two-way audio support
• Power Supply: 12 V DC / PoE (IEEE 802.3at)
• Operating Temperature: -30°C to 60°C
• Protection Level: IP65
• Installation: Wall mounting
• Dimensions: 165.2 mm × 75.7 mm × 25 mm
• Application: Indoor and outdoor use
