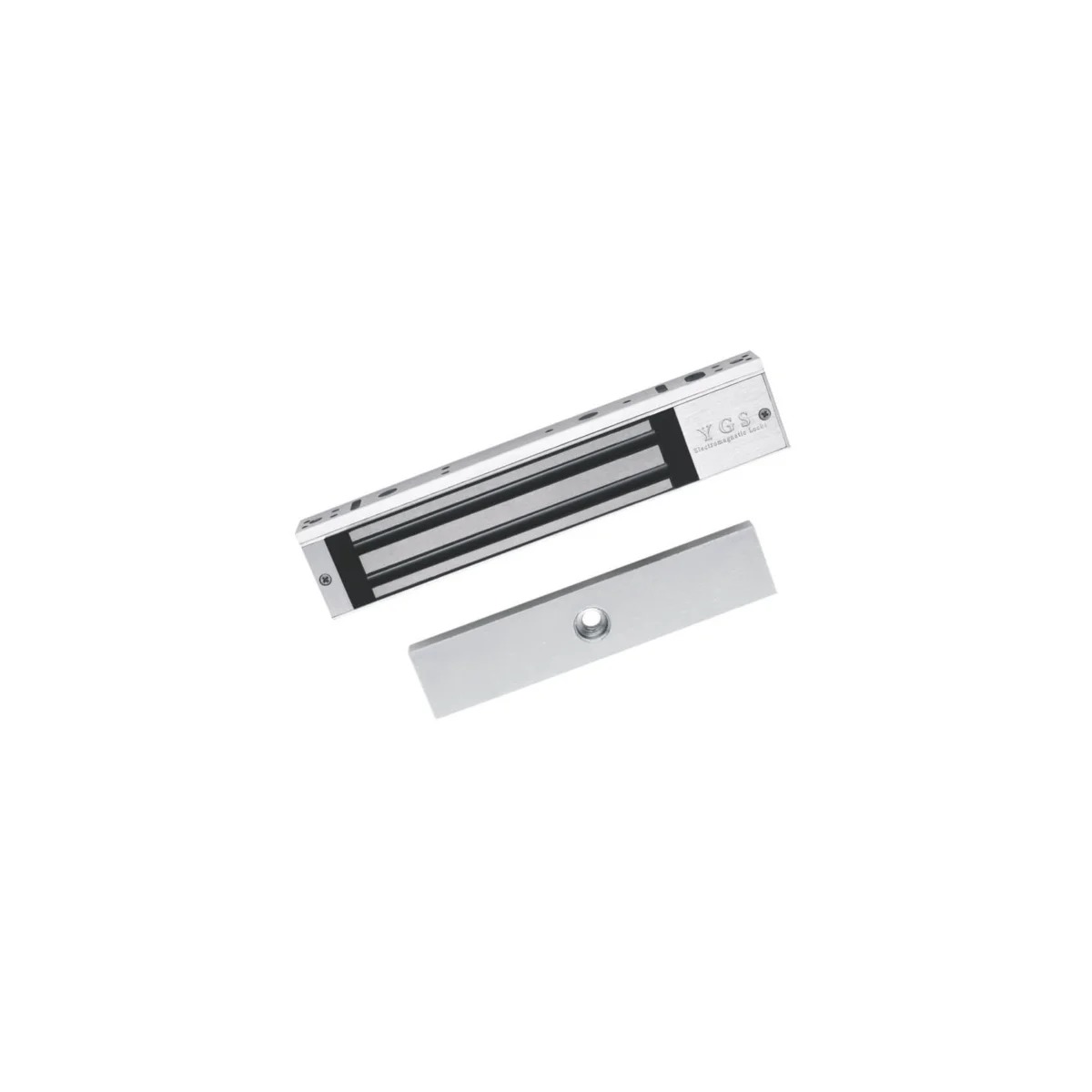

Hikvision DS-K4H258S One-Door Magnetic Lock

Hikvision DS-K4H258S One-Door Magnetic Lock is a high-performance electromagnetic locking solution designed for access control systems in commercial buildings, offices, residential properties, educational institutions, and industrial facilities. With a holding force of up to 280 kg (617 lbs), this fail-safe magnetic lock provides reliable door security while enabling fast and safe egress during power interruptions. Engineered for compatibility with Hikvision access control terminals, video intercom systems, and third-party access control solutions, the DS-K4H258S is suitable for wooden, glass, metal, and fire-rated doors. Its durable construction, anti-residual magnetism design, and LED status indicator ensure long-lasting performance and dependable operation in demanding environments.

Product Features

Strong 280 kg Holding Force

The magnetic lock delivers a maximum static linear holding force of 280 kg (617 lbs), providing secure locking performance for single-door access control applications.

Compatible with Multiple Door Types

Designed for versatile installations, the DS-K4H258S supports wooden doors, glass doors, metal doors, and fireproof doors with a 90° opening angle, making it suitable for a wide range of commercial and residential environments.

Fail-Safe Electromagnetic Operation

The lock releases automatically when power is interrupted, ensuring compliance with emergency exit requirements and improving occupant safety during emergencies.

Anti-Residual Magnetism Design

An anti-residual magnetism feature prevents residual magnetic force after unlocking, allowing the door to open smoothly while reducing wear on the locking mechanism.

LED Lock Status Indicator

An integrated green LED indicator provides a clear visual indication of the lock’s operating status, simplifying monitoring and maintenance.

Durable Construction

Manufactured using abrasion-resistant materials with a hard anodized aluminum shell and corrosion-resistant plated components, the lock is built for long-term reliability and continuous operation.

Flexible Power Input

The magnetic lock supports both 12 V DC and 24 V DC power supplies, with 12 V DC configured as the default operating voltage, providing flexibility for different access control installations.

Easy Integration with Access Control Systems

The DS-K4H258S integrates seamlessly with Hikvision access control terminals, video intercom systems, card readers, exit buttons, and third-party controllers, making it ideal for complete electronic door security solutions.

No Mechanical Wear

Because the lock operates using electromagnetic force rather than moving mechanical components, it minimizes wear and reduces maintenance requirements, extending product lifespan.

Product Specifications

• Model: Hikvision DS-K4H258S
• Product Type: One-Door Electromagnetic Lock
• Lock Type: Fail-Safe Magnetic Lock
• Holding Force: 280 kg (617 lbs) Static Linear Thrust
• Unlock Method: Current Interruption
• Input Voltage: 12 V DC or 24 V DC (12 V DC Default)
• Working Current: 340 mA × 2 (12 V DC)
• Status Indicator: Green LED
• Door Compatibility:
  • Wooden Doors
  • Glass Doors
  • Metal Doors
  • Fireproof Doors
• Door Opening Angle: 90°
• Surface Temperature: ≤ Ambient Temperature +20°C
• Operating Temperature: -10°C to 55°C
• Operating Humidity: 0% to 95% Relative Humidity
• Lock Body Dimensions: 238 × 45 × 25 mm
• Armature Plate Dimensions: 182 × 38 × 12.5 mm
• Weight: Approximately 2.1 kg
• Shell Material: Hard Anodized Aluminum Alloy
• Lock Body Finish: Eco-Friendly Nickel Electroplating
• Armature Plate Finish: Eco-Friendly Zinc Electroplating
• Features:
  • Anti-Residual Magnetism
  • Abrasion-Resistant Construction
  • Built-In MOV Surge Protection
  • LED Status Indicator
• Installation: Surface Mount
• Applications: Offices, Commercial Buildings, Residential Properties, Educational Institutions, Healthcare Facilities, and Industrial Buildings
• Compatibility: Hikvision Access Control Systems, Video Intercom Systems, Card Readers, and Third-Party Access Control Controllers
• Certifications: CE, RoHS (Region Dependent)
