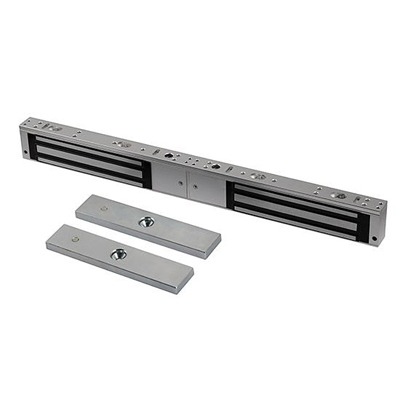

HIKVISION DS-K4H258D Two-Door Magnetic Lock

Hikvision DS-K4H258D Two-Door Magnetic Lock is a high-performance electromagnetic locking solution engineered for double-door access control applications in commercial buildings, offices, educational institutions, healthcare facilities, industrial sites, and residential complexes. Designed with dual 280 kg (617 lbs) holding force magnets, this fail-safe magnetic lock delivers dependable security while ensuring safe emergency egress during power outages. Compatible with Hikvision access control systems, video intercoms, and third-party controllers, the DS-K4H258D features anti-residual magnetism technology, LED lock status indicators, and a durable hard-anodized aluminum housing for long-lasting performance in demanding environments.

Product Features

Dual 280 kg Holding Force

The DS-K4H258D provides a static linear holding force of 280 kg (617 lbs) per door, delivering a combined high-strength locking solution for double-door installations requiring reliable access control.

Designed for Double-Door Applications

Specifically engineered for double-door configurations, this magnetic lock is ideal for securing main entrances, office access points, emergency exits, and other high-traffic entryways.

Fail-Safe Electromagnetic Operation

The lock automatically releases when power is interrupted, ensuring occupants can exit safely during emergencies while complying with fail-safe access control requirements.

Anti-Residual Magnetism Technology

Advanced anti-residual magnetism prevents the armature plates from sticking after power is removed, allowing smooth and reliable door release while reducing wear over time.

LED Lock Status Indicators

Integrated green LED indicators provide a clear visual display of the operating status for both magnetic locks, simplifying monitoring and maintenance.

Durable Industrial Construction

Manufactured with a hard-anodized aluminum shell and eco-friendly plated lock body and armature plates, the DS-K4H258D is built to withstand continuous operation in demanding environments.

Wide Door Compatibility

The magnetic lock is suitable for wooden, glass, metal, and fire-rated doors, providing installation flexibility across a wide range of commercial and residential applications.

Integrated Surge Protection

Built-in MOV (Metal Oxide Varistor) surge protection helps protect the lock from voltage spikes, enhancing system reliability and extending service life.

Low Maintenance Design

With no moving mechanical components, the electromagnetic locking mechanism minimizes wear and maintenance requirements while providing consistent locking performance.

Seamless Access Control Integration

The DS-K4H258D integrates effortlessly with Hikvision access control terminals, video intercom systems, card readers, exit buttons, and third-party access control platforms to create a complete electronic security solution.

Product Specifications

• Model: Hikvision DS-K4H258D
• Product Type: Two-Door Electromagnetic Lock
• Lock Type: Fail-Safe Magnetic Lock
• Holding Force: 280 kg (617 lbs) × 2 Static Linear Thrust
• Unlock Method: Current Interruption
• Input Voltage: 12 V DC or 24 V DC (12 V DC Default)
• Working Current: 340 mA × 2
• Status Indicator: Green LED
• Surge Protection: Built-In MOV (Metal Oxide Varistor)
• Door Compatibility:
  • Wooden Doors
  • Glass Doors
  • Metal Doors
  • Fire-Rated Doors
• Door Configuration: Double Door
• Door Opening Angle: 90°
• Surface Temperature: ≤ Ambient Temperature +20°C
• Operating Temperature: -10°C to 55°C
• Operating Humidity: 0% to 95% Relative Humidity
• Lock Body Dimensions: 500 × 45 × 25 mm
• Armature Plate Dimensions: 182 × 38 × 12.5 mm
• Weight: Approximately 4.2 kg
• Shell Material: Hard Anodized Aluminum Alloy
• Lock Body Finish: Eco-Friendly Nickel Electroplating
• Armature Plate Finish: Eco-Friendly Zinc Electroplating
• Features:
  • Anti-Residual Magnetism
  • LED Lock Status Indicators
  • Abrasion-Resistant Construction
  • Built-In MOV Surge Protection
  • No Mechanical Wear
• Installation: Surface Mount
• Applications: Double-Door Entrances, Offices, Commercial Buildings, Residential Properties, Educational Institutions, Healthcare Facilities, and Industrial Sites
• Compatibility: Hikvision Access Control Systems, Video Intercom Systems, Card Readers, Exit Buttons, and Third-Party Access Control Controllers
• Certifications: CE, RoHS (Region Dependent)
