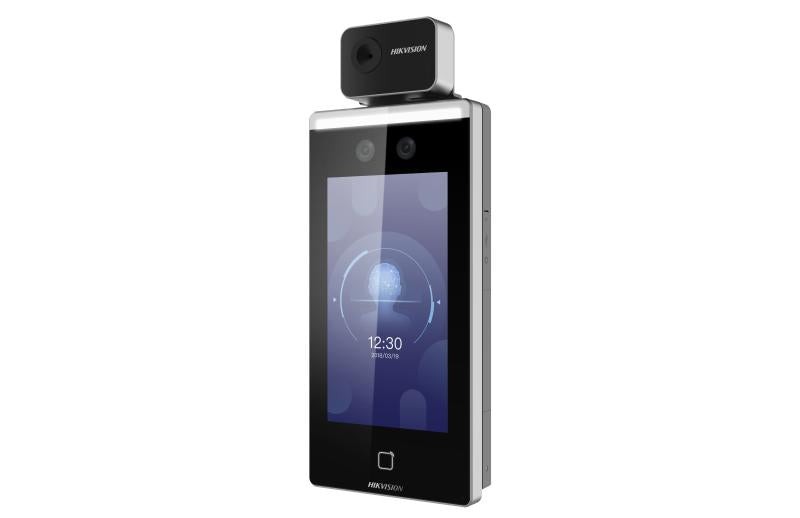

Hikvision DS-K1TA70MI-T Face Recognition Terminal

Hikvision DS-K1TA70MI-T Face Recognition Terminal is an intelligent biometric access control and time attendance device designed for secure identity verification in offices, schools, factories, healthcare facilities, and commercial buildings. Featuring a 7-inch touch screen, dual-lens 2 MP camera, AI-powered facial recognition, MIFARE card authentication, and integrated temperature screening capabilities, the terminal delivers fast and accurate user authentication in less than 0.2 seconds. With support for face mask detection, anti-spoofing technology, and seamless integration with Hikvision access control platforms, the DS-K1TA70MI-T provides a comprehensive solution for modern access management and employee attendance.

Product Features

AI-Powered Face Recognition

Advanced deep learning algorithms provide highly accurate face recognition with an authentication speed of less than 0.2 seconds per user and a recognition accuracy of 99% or higher, ensuring fast and secure access control.

Integrated Temperature Screening

The built-in thermal sensor measures skin-surface temperature from a distance of 0.3 to 1.8 metres and displays the result during authentication. This feature is intended for preliminary screening and is not designed for medical diagnosis.

7-Inch LCD Touchscreen

A responsive 7-inch colour touchscreen offers an intuitive interface for user enrollment, authentication, attendance management, and device configuration.

Dual-Lens 2 MP Camera

The integrated dual-lens 2 MP wide-angle camera enhances facial recognition accuracy while supporting anti-spoofing technology to help prevent unauthorized access using photographs or videos.

Face Mask Detection

The terminal recognizes users even when wearing face masks, making it suitable for environments where personal protective equipment is required.

Large User Capacity

Store up to 6,000 face templates, 6,000 MIFARE cards, and 100,000 event records, making the device ideal for medium and large organizations with high user volumes.

Comprehensive Access Control Interfaces

The terminal supports door lock control, exit button, door contact, Wiegand, RS-485, alarm inputs and outputs, enabling integration with complete access control systems.

Network-Based Centralized Management

Support for TCP/IP communication allows centralized configuration, monitoring, and management through Hikvision software platforms for efficient access control and attendance administration.

Product Specifications

• Brand: Hikvision
• Model: DS-K1TA70MI-T
• Product Type: Face Recognition Terminal
• Display: 7-inch LCD Touchscreen
• Camera: Dual 2 MP Wide-Angle Cameras
• Face Capacity: Up to 6,000 Faces
• Card Capacity: Up to 6,000 MIFARE (M1) Cards
• Event Capacity: Up to 100,000 Records
• Authentication Methods: Face Recognition, MIFARE Card
• Face Recognition Speed: Less than 0.2 Seconds per User
• Face Recognition Accuracy: 99% or Higher
• Face Recognition Distance: 0.3–1.8 m
• Face Mask Detection: Supported
• Anti-Spoofing Protection: Supported
• Temperature Measurement Range: 30°C to 45°C
• Temperature Measurement Accuracy: ±0.5°C
• Temperature Resolution: 0.1°C
• Temperature Measurement Distance: 0.3–1.8 m
• Temperature Sensor: Vanadium Oxide Uncooled Sensor
• Network Interface: 1 × RJ45 10/100/1000 Mbps Ethernet
• Communication Interfaces:
  • 1 × RS-485
  • 1 × Wiegand
  • 1 × Lock Output
  • 1 × Exit Button Input
  • 1 × Door Contact Input
  • 2 × Alarm Inputs
  • 1 × Alarm Output
  • 1 × Tamper Alarm
• Card Type: MIFARE M1
• Audio Prompt: Supported
• Live View: Supported
• Power Supply: 12 V DC, 2 A
• Operating Temperature: 0°C to 50°C
• Working Humidity: 10%–90% Non-Condensing
• Application Environment: Indoor, Windless Environment
• Dimensions: Approximately 290 × 116.5 × 33 mm
• Weight: Approximately 1.04 kg
• Compatible Platforms: HikCentral Professional, HikCentral Access Control, Hik-Connect
• Typical Applications: Office buildings, factories, schools, hospitals, residential communities, government facilities, and commercial access control systems.
