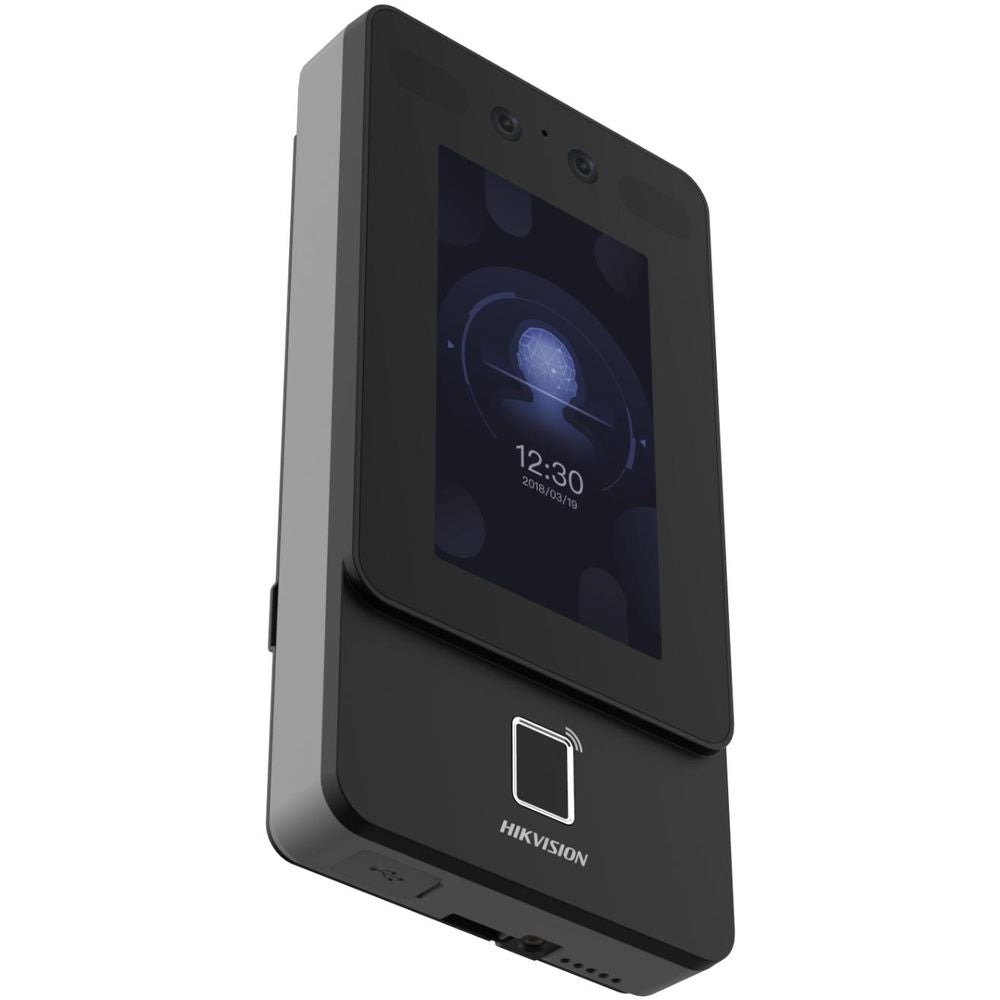

Hikvision DS-K1T342MFX-E1 Face Recognition Terminal

Hikvision DS-K1T342MFX-E1 Face Recognition Terminal is an advanced biometric access control and time attendance solution designed for offices, commercial buildings, schools, healthcare facilities, and industrial environments. Powered by deep learning algorithms, it delivers fast and accurate facial recognition in less than 0.2 seconds, with support for multiple authentication methods including face recognition, fingerprint, MIFARE card, and PIN code. Equipped with a 4.3-inch touchscreen, a 2 MP wide-angle camera, a built-in M1 card reader, two-way audio, and robust access control interfaces, the DS-K1T342MFX-E1 provides a secure, efficient, and user-friendly solution for modern access management.

Product Features

AI-Powered Face Recognition

Advanced deep learning technology enables facial recognition in less than 0.2 seconds with an accuracy rate of over 99%, ensuring fast and secure authentication for authorized users.

Multiple Authentication Methods

The terminal supports face recognition, fingerprint verification, MIFARE card authentication, and PIN codes, allowing organizations to implement flexible and multi-factor access control policies.

4.3-Inch Capacitive Touchscreen

A responsive 4.3-inch LCD touchscreen provides an intuitive user interface for enrollment, authentication, device management, and system configuration.

High-Resolution 2 MP Camera

Dual wide-angle 2 MP cameras capture high-quality facial images while supporting anti-spoofing technology to help prevent unauthorized access using photographs or videos.

Mask Recognition Support

The terminal can accurately recognize authorized users even while wearing face masks, making it suitable for healthcare facilities, industrial sites, and other environments where face coverings are common.

Integrated Access Control Functions

Built-in door control interfaces allow direct connection to electric locks, exit buttons, door contacts, alarm inputs, and Wiegand devices, simplifying installation for standalone or networked access control systems.

Two-Way Audio Communication

Integrated two-way audio supports communication with client software, indoor stations, and master stations, enhancing visitor management and access verification.

Network-Based Centralized Management

The device supports TCP/IP networking, ISAPI, ISUP 5.0, Push SDK, and web-based configuration for seamless integration with HikCentral Professional, Hik-ProConnect, and other Hikvision management platforms.

Product Specifications

• Brand: Hikvision
• Model: DS-K1T342MFX-E1
• Product Type: Face Recognition Terminal
• Operating System: Linux
• Display: 4.3-inch LCD Capacitive Touchscreen
• Screen Resolution: 272 × 480
• Camera: Dual 2 MP Wide-Angle Cameras
• Face Capacity: Up to 1,500 Faces
• Fingerprint Capacity: Up to 3,000 Fingerprints
• Card Capacity: Up to 3,000 MIFARE (M1) Cards
• Event Capacity: Up to 150,000 Records
• Authentication Methods: Face, Fingerprint, Card, PIN Code
• Face Recognition Distance: 0.3–1.5 m
• Face Recognition Speed: Less than 0.2 Seconds
• Face Recognition Accuracy: Greater than 99%
• Face Mask Recognition: Supported
• Anti-Spoofing Protection: Supported
• Network Interface: 1 × RJ45 10/100 Mbps Ethernet
• Communication Protocols: TCP/IP, ISAPI, ISUP 5.0, Push SDK
• Two-Way Audio: Yes
• Card Type: MIFARE M1 (13.56 MHz)
• Interfaces:
  • 1 × RS-485
  • 1 × Wiegand
  • 1 × USB
  • 1 × Lock Output
  • 1 × Exit Button Input
  • 1 × Door Contact Input
  • 1 × Tamper Alarm
• Power Supply: 12 V DC, 1 A or IEEE 802.3at PoE
• Door Lock Power Output: 12 V DC, 1 A (when powered by supported PoE)
• Protection Rating: IP65
• Operating Temperature: -30°C to 60°C
• Operating Humidity: 0%–90% (Non-Condensing)
• Dimensions: 181.3 × 91.3 × 24.5 mm
• Net Weight: Approximately 0.36 kg
• Installation: Wall Mount
• Compatible Platforms: HikCentral Professional, Hik-ProConnect
• Typical Applications: Office access control, employee time attendance, schools, hospitals, commercial buildings, industrial facilities, financial institutions, and residential communities.
