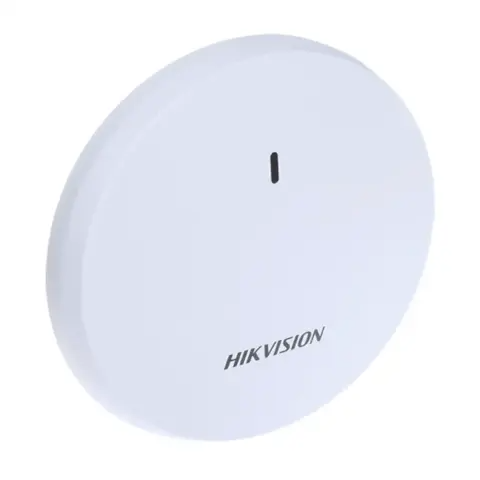

Hikvision DS-3WAP522-SI Wi-Fi 5 1200M Ceiling Access Point
Hikvision DS-3WAP522-SI Wi-Fi 5 1200M Ceiling Access Point is a high-performance dual-band wireless networking device designed for reliable coverage in offices, hotels, schools, and other high-density environments. Built on 802.11ac Wave 2 technology, it delivers fast and stable connectivity with support for multiple users, seamless roaming, and centralized management. Its ceiling-mounted design ensures optimal signal distribution, while Power over Ethernet (PoE) simplifies installation, making it an ideal solution for scalable and professional wireless deployments.
Product Features
Dual-Band Wi-Fi 5 High-Speed Performance
Supports 802.11ac Wave 2 technology with combined speeds of up to 1200 Mbps, delivering fast and stable wireless connectivity across both 2.4 GHz and 5 GHz bands.
High User Capacity for Dense Environments
Capable of supporting up to 256 connected devices with around 80 concurrent users recommended, making it suitable for busy network environments.
Ceiling-Mounted Design for Wide Coverage
Optimized for ceiling installation to ensure even signal distribution and maximum wireless coverage in large indoor spaces.
Gigabit Ethernet with PoE Support
Equipped with a Gigabit uplink port and PoE input, allowing both power and data transmission through a single cable for simplified deployment.
MU-MIMO Technology
Enables simultaneous data transmission to multiple devices, improving overall network efficiency and performance in multi-user environments.
Intelligent Fast Roaming
Supports seamless roaming between access points, ensuring uninterrupted connectivity for mobile users in large facilities.
Auto RF Optimization
Automatically adjusts radio frequency settings to reduce interference and optimize wireless performance.
Advanced Security Features
Supports modern wireless security protocols such as WPA2/WPA3 encryption and VLAN configuration for secure and segmented networks.
Flexible Installation Options
Can be installed on ceilings, walls, or desktops, providing flexibility for different deployment scenarios.
Product Specifications
- Model: DS-3WAP522-SI
- Wi-Fi Standard: IEEE 802.11a/b/g/n/ac (Wi-Fi 5)
- Wireless Speed: Up to 1200 Mbps (300 Mbps on 2.4 GHz, 867 Mbps on 5 GHz)
- Frequency Bands: Dual-band (2.4 GHz and 5 GHz)
- MU-MIMO: Supported (2 × 2 streams)
- Maximum Clients: Up to 256 devices
- Recommended Concurrent Users: Around 80 users
- Ethernet Port: 1 × Gigabit RJ-45 uplink
- Power Supply: PoE (Power over Ethernet)
- Maximum SSIDs: Up to 8
- Security: WPA2/WPA3, VLAN support
- Installation: Ceiling, wall, or desktop mounting
- Operating Temperature: 0°C to 40°C
- Working Humidity: 5% to 95% (non-condensing)
- Dimensions: Approx. 220 × 220 × 39 mm
- Weight: Approx. 0.37 kg
- Application: Offices, hotels, schools, retail spaces, and public Wi-Fi deployments
