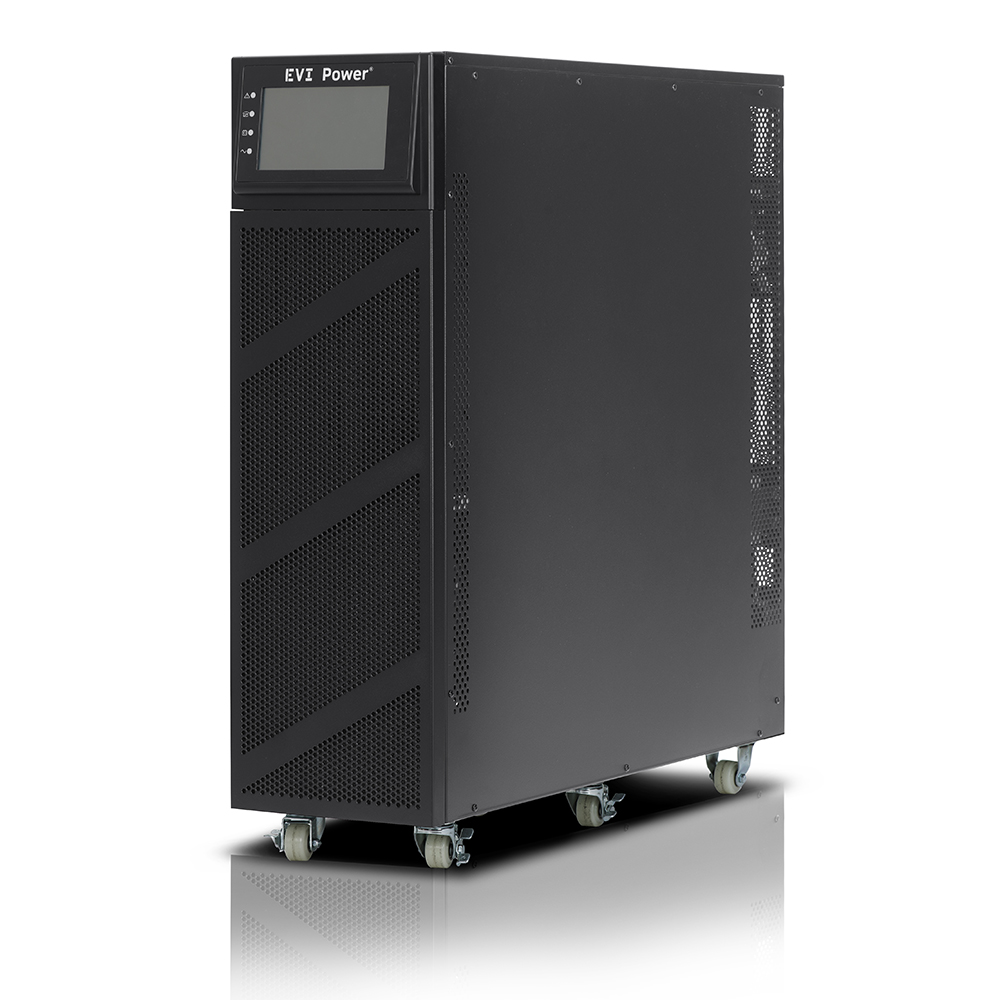

EVI 40000VA / 36000W Tower Online 3 Phase UPS – EP-UPS40Y33OT

EVI 40000VA / 36000W Tower Online 3 Phase UPS is a high-performance uninterruptible power supply designed to provide reliable, continuous, and efficient power protection for mission-critical systems. With advanced double-conversion technology, DSP control, and intelligent charging management, this UPS ensures stable operation for data centers, industrial applications, and enterprise infrastructure. Its scalable design supports parallel redundancy, extended battery options, and a wide range of communication interfaces, making it an ideal solution for businesses seeking maximum uptime and energy efficiency.

Product Features

Online Double Conversion with DSP Control

Delivers clean and stable power output with zero transfer time, ensuring uninterrupted performance for sensitive equipment.

3 Phase Input and Output

Provides robust and balanced power distribution suitable for industrial and large-scale IT environments.

N+X Parallel Redundancy

Supports up to 4 units in parallel for increased capacity and system reliability.

Intelligent Charging Management

Enhances battery life and optimizes charging for maximum efficiency and extended backup performance.

Advanced Communication Interfaces

Includes USB, RS232, RS485, parallel port, and dry contact, with optional SNMP and relay cards for remote monitoring.

High Power Factor and Efficiency

With an output power factor of 0.9 and PFC technology, the UPS reduces power loss and ensures energy efficiency.

User-Friendly LCD Touch Display

Features a 7-inch touch screen LCD for easy monitoring and control of system operations.

Wide Input Range and ECO Function

Operates efficiently within 208-478Vac and 40-70Hz ranges, with ECO mode for optimized energy savings.

Safety and Flexibility

Comes with an EPO function, DC start capability, and optional external battery pack for extended runtime.

Product Specifications

• Capacity: 40000VA / 36000W
• UPS Topology: Online double conversion
• Control Technology: Fully digital control (Charging/Rectifier/Inverter)
• Input: 3 phase, 208–478Vac, 40–70Hz
• Output: 3 phase, power factor 0.9
• Transfer Time: 0ms
• Input Current Harmonic Distortion: ≤3%
• Parallel Redundancy: Supports up to 4 units (N+X)
• ECO Function: Available
• Communication Ports: USB, RS232, RS485, parallel port, dry contact
• Optional Communication: SNMP card, relay card
• Display: 7-inch touch LCD
• Functions: EPO, DC start, intelligent charging
• External Battery Pack: Supported for extended runtime
• Warranty: 2 years (1 year on battery)

Applications

EVI 40000VA / 36000W Tower Online 3 Phase UPS is designed for critical environments where uninterrupted power is essential. It is ideal for:

• Data Centers – Ensures 24/7 availability of servers, storage, and networking equipment.
• Telecommunication Systems – Provides stable backup for communication infrastructure.
• Industrial and Manufacturing Facilities – Protects machinery and control systems from power interruptions.
• Healthcare Institutions – Keeps life-saving medical equipment and hospital IT systems running without disruption.
• Banking and Financial Institutions – Secures transaction systems, ATMs, and servers against downtime.
• Government and Military Operations – Guarantees continuous operation for security and administrative systems.
• Enterprise IT Infrastructure – Delivers reliable backup for business-critical applications and high-performance computing.

Frequently Asked Questions (FAQs)

Q1: What is the main advantage of an Online Double Conversion UPS?
A1: It provides continuous and clean power with zero transfer time, ensuring that connected equipment is never interrupted during power fluctuations or outages.

Q2: Can this UPS support parallel redundancy?
A2: Yes. The EVI 40000VA / 36000W UPS supports N+X parallel redundancy with up to 4 units connected in parallel for added capacity and reliability.

Q3: How long can the UPS provide backup power?
A3: Backup duration depends on the connected load and battery configuration. The UPS supports optional external battery packs for extended runtime.

Q4: Is the UPS suitable for data centers?
A4: Absolutely. Its 3 phase input/output, high efficiency, and intelligent monitoring make it ideal for data centers and other mission-critical environments.

Q5: What communication options are available?
A5: Standard interfaces include USB, RS232, RS485, parallel port, and dry contact. Optional SNMP and relay cards are available for advanced monitoring.

Q6: What is the warranty coverage?
A6: The UPS comes with a 2-year warranty (1 year for the battery), covering manufacturing defects under normal usage conditions.

Q7: Can the UPS be remotely monitored?
A7: Yes. With optional SNMP cards, the UPS can be monitored and managed remotely over a network.

Q8: Does the UPS have energy-saving features?
A8: Yes. It includes ECO mode for optimized efficiency and PFC technology to reduce power losses.
