PDUMV20HV 3.7kW Single-Phase Local Metered PDU
Key Features & Specifications:
- Power Distribution:
The PDUMV20HV is a 3.7kW Single-Phase Local Metered PDU designed for 208/230V systems. It supports 16A continuous operation, with maximum input amps of 16A (agency de-rated for continuous use). - Outlets:

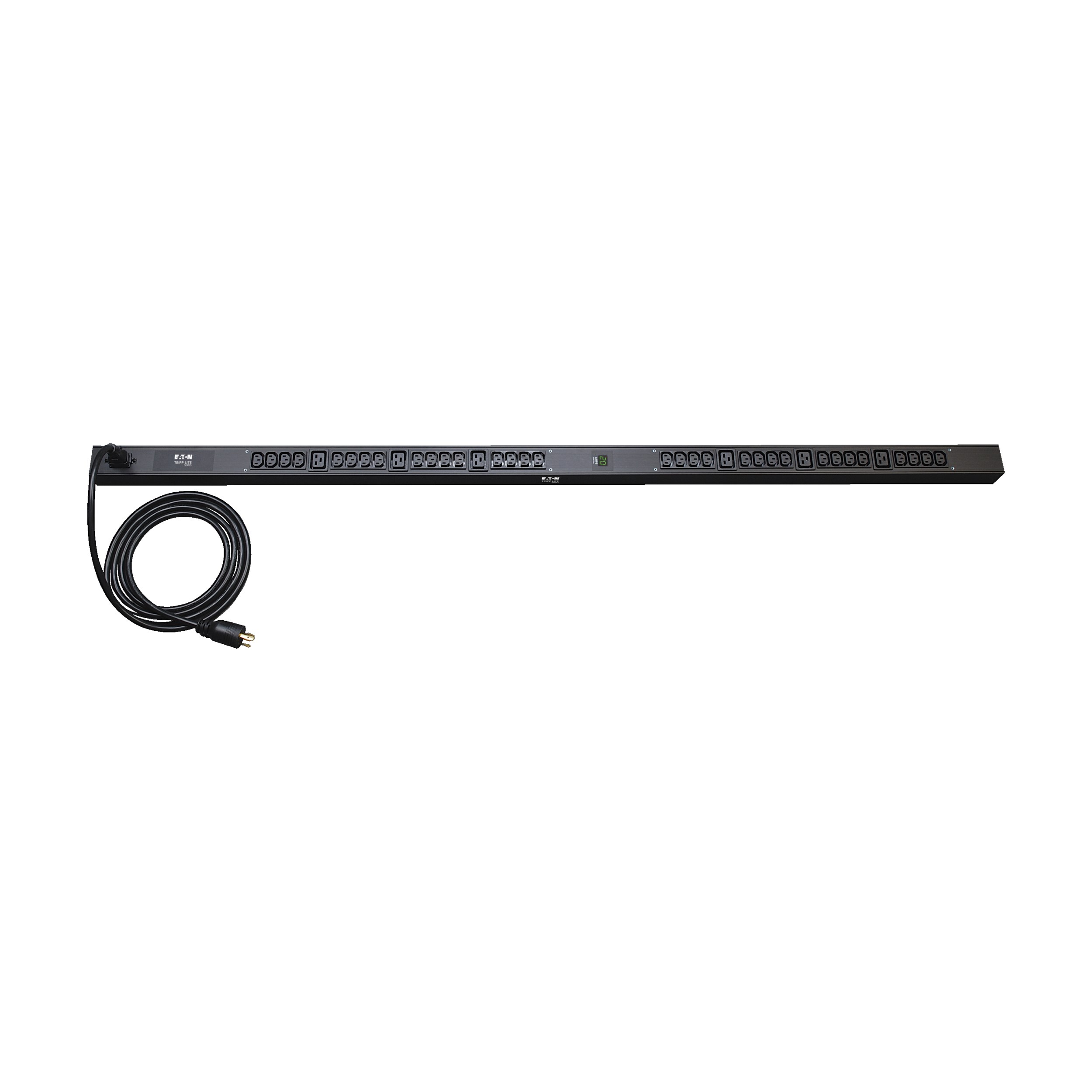

This 0U vertical rackmount PDU features a total of 38 outlets, including 6 C19 and 32 C13 connectors, providing extensive power distribution to your equipment. - Digital Monitoring:
A two-digit lighted digital meter on the front panel reports current output in amps, allowing for real-time load monitoring. This helps in balancing the load and preventing overloading, ensuring safe and reliable operation. - Input & Compatibility:
It includes a 10-ft. (3.05 m) detachable input cable with a NEMA L6-20P plug for easy connection to your AC power source, generator, or UPS system. The C20 inlet accepts a wide range of 16A international cordsets, providing flexibility in power configurations. - Installation Options:
This PDU is ideal for a 0U vertical rackmount installation, supporting easy toolless installation with preinstalled 9 mm mounting buttons. The bolt-down installation brackets provide additional installation flexibility on other surfaces or racks. - Durable Construction:
Made from high-quality aluminum, the PDUMV20HV is built to last and designed to handle the demands of data centers, server rooms, and network closets. - Surge Protection & Safety Features:
The unit does not have automatic shut-off but includes plug-lock inserts to ensure your components remain securely connected and powered without accidental disconnections. - Environmental Compatibility:
The PDUMV20HV operates in a temperature range of 32°F to 104°F (0°C to 40°C), with storage temperatures ranging from -22°F to 122°F (-30°C to 50°C). It supports a relative humidity range of 0% to 95% non-condensing.
Product Highlights
- 3.7kW capacity with 16A continuous load handling.
- 38 outlets (6 C19, 32 C13) for diverse equipment needs.
- Two-digit digital ammeter for real-time current monitoring.
- NEMA L6-20P plug with 10 ft. detachable input cord.
- Supports tool-less 0U vertical installation in racks.
- Durable aluminum housing for added strength and reliability.
- CE, RoHS, and UKCA compliance for international use.
Installation & Setup
- Toolless 0U vertical installation for maximum rack space efficiency.

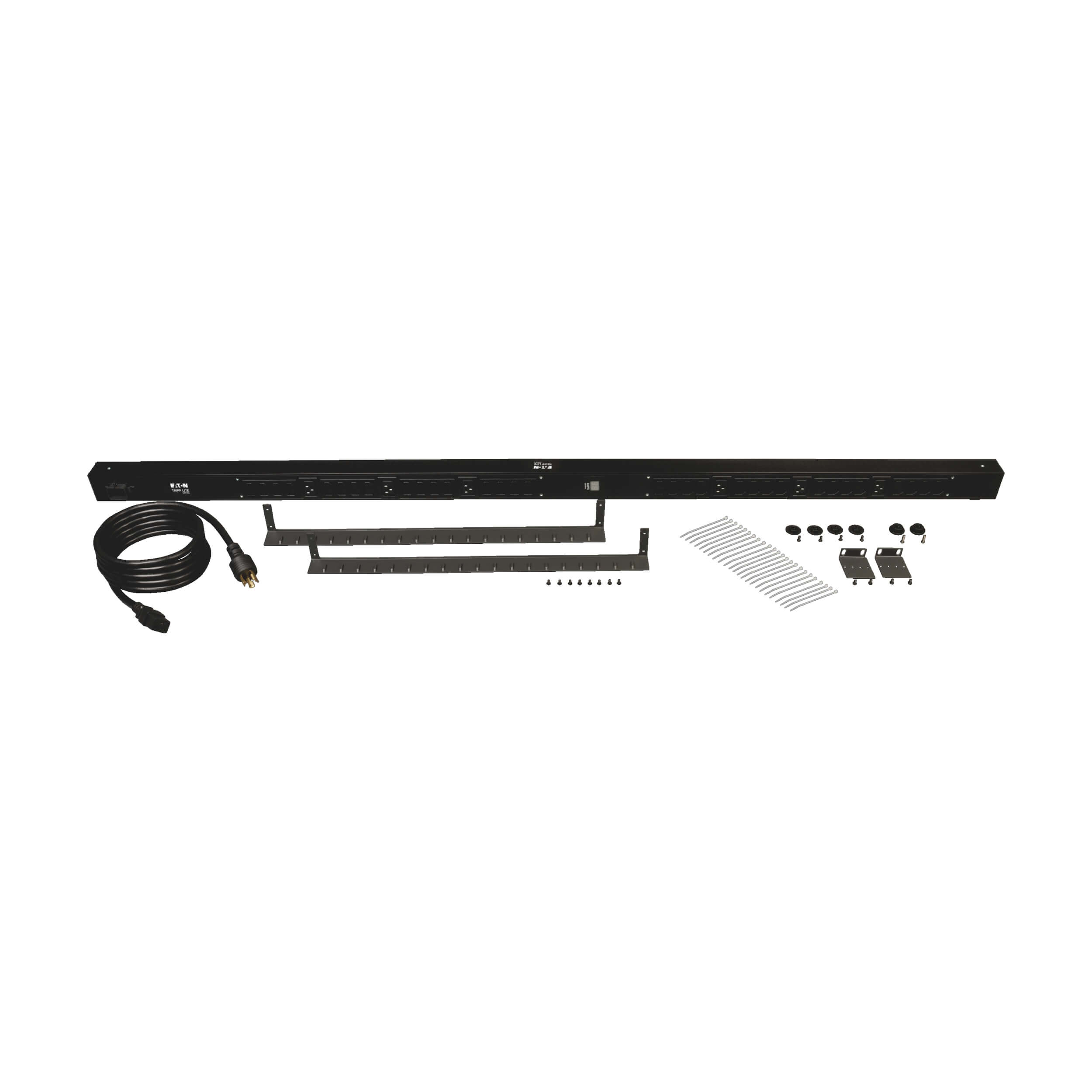

- Preinstalled mounting buttons and bolt-down brackets included for flexible setups.
Warranty & Support
- The PDUMV20HV is backed by a 2-year limited worldwide warranty, ensuring quality and peace of mind.
Additional Features
- Ideal for use in server rooms, data centers, and network closets.
- Supports single-phase 208/230V systems, making it suitable for a variety of commercial and industrial environments.
