Tripp-lite 7.7kW Single-Phase Metered PDU (PDUMV32HV)
KSh 85,000.00 (+ VAT(16%)

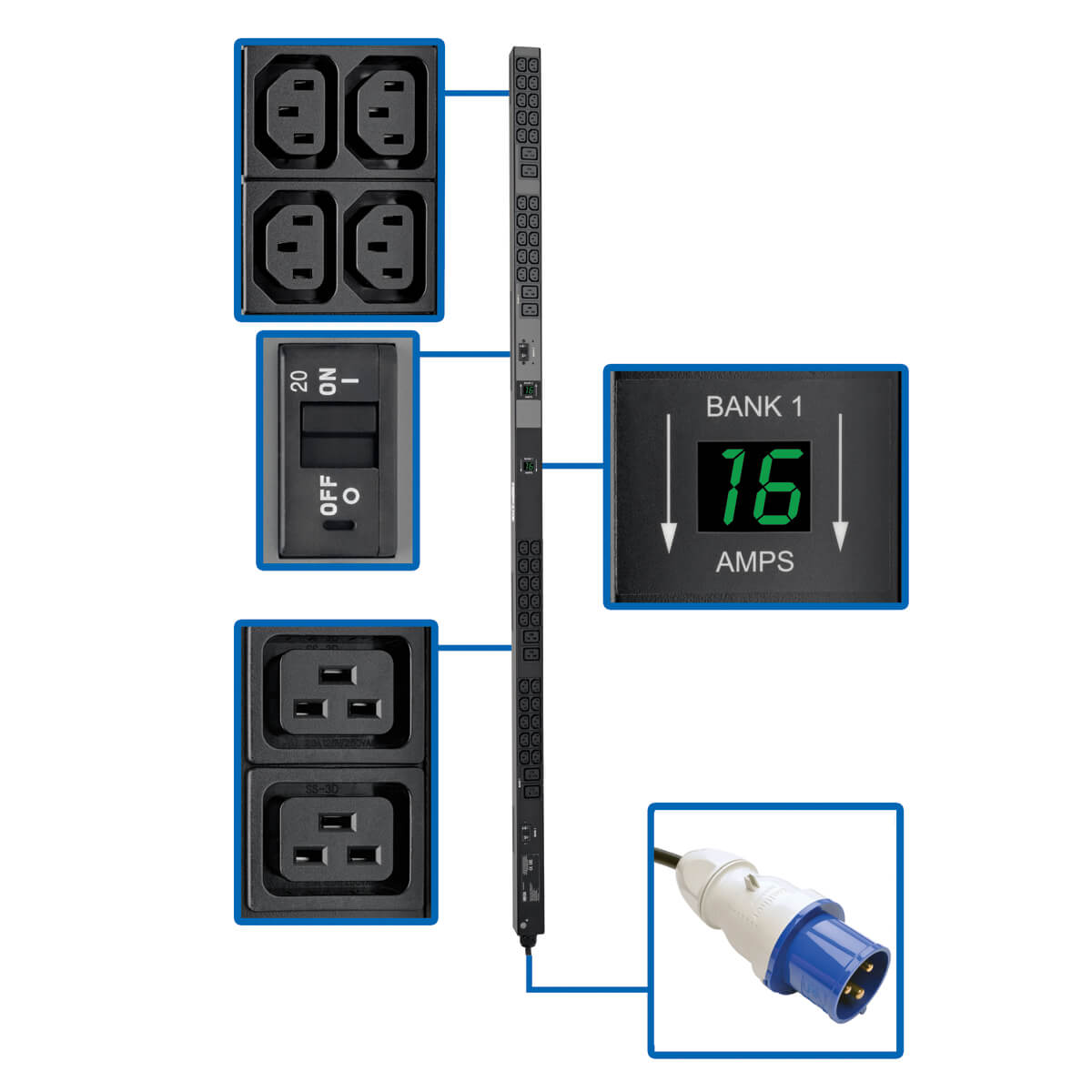

Tripp Lite (Eaton) PDUMV32HV is a high-capacity metered PDU that delivers up to 7.7 kW (32 A, 200–240 V) of reliable single‑phase power across 48 rack-ready outlets—comprising 40 IEC C13 and 8 IEC C19 connectors. Equipped with dual load banks, each featuring dedicated 20 A circuit breakers and digital ammeters for real-time current monitoring, it helps prevent overloads while balancing power loads.

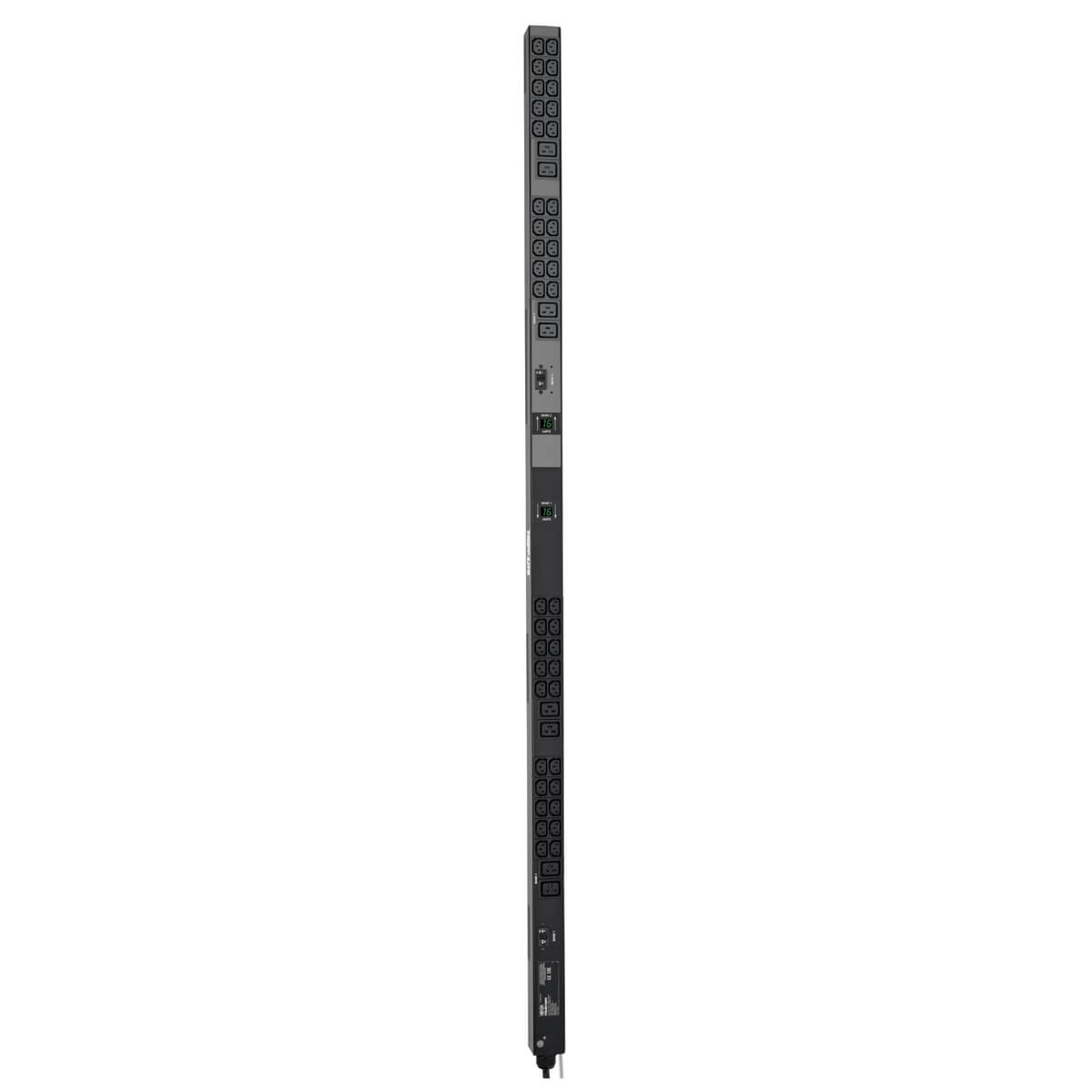

The vertical 0U form factor fits seamlessly in server racks without occupying usable unit space. It also includes a 10‑ft IEC‑309 32 A blue input cord with plug-lock inserts and a ground screw for secure connections. Built in a rugged all-metal chassis, the PDUMV32HV supports toolless installation with preinstalled buttons or included hardware, offers TAA compliance for government use, and comes with a 2-year limited warranty.
Tripp Lite 7.7kW Single-Phase Metered PDU (PDUMV32HV)
Tripp Lite 7.7kW Single-Phase Metered PDU (PDUMV32HV) delivers reliable and efficient power distribution for high-density IT environments. Designed for data centers, network closets, and high-performance computing setups, this rack-mount PDU ensures stable power delivery with real-time load monitoring via its built-in digital ammeter. It operates at 200–240V, making it ideal for applications requiring higher voltage, and supports up to 32A capacity. Its rugged construction, multiple C13/C19 outlets, and easy mounting options make it a dependable choice for professional power management.
Product Features
High Power Capacity
Delivers 7.7kW of single-phase power, supporting up to 32A for demanding IT and networking applications.
Real-Time Load Monitoring
Integrated digital ammeter displays current load levels, helping prevent circuit overloads and ensuring optimal energy usage.
Versatile Outlet Configuration
Features multiple IEC C13 and C19 outlets to accommodate a wide range of server, networking, and peripheral devices.
Durable Rack-Mount Design
Constructed with a heavy-duty metal housing and designed for standard 2U rack mounting, ensuring secure installation in professional environments.
Reliable Power Delivery
Operates at 200–240V with a NEMA L6-30P input plug, providing stable voltage for sensitive and high-performance equipment.
Comprehensive Safety Features
Includes circuit breaker protection to safeguard connected devices from overloads and electrical faults.
Product Specifications
- Power Capacity: 7.7kW (32A single-phase)
- Voltage Compatibility: 200–240V AC
- Input Plug Type: NEMA L6-30P
- Output Outlets: IEC C13 and IEC C19
- Rack Mount Size: 2U
- Load Monitoring: Digital ammeter with real-time display
- Housing Material: Heavy-duty metal construction
- Circuit Protection: Integrated circuit breaker
- Application: Data centers, network closets, high-density IT environments
- Operating Temperature: 0°C to 40°C (32°F to 104°F)
Application
Tripp Lite 7.7kW Single-Phase Metered PDU (PDUMV32HV) is ideal for:
- Data Centers – Distributing high-capacity power to multiple rack-mounted servers and networking devices.
- Enterprise IT Networks – Ensuring reliable power delivery to switches, routers, and storage systems.
- High-Density Server Rooms – Managing power for blade servers and virtualization environments.
- Industrial Control Systems – Powering sensitive equipment in manufacturing and automation setups.
- Telecommunication Facilities – Supporting critical communication hardware and base stations.
- Laboratory and Research Environments – Providing stable voltage for sensitive test and measurement instruments.
