1.6–3.8kW Single-Phase 100–240V Basic PDU, Model PDUH20DV – Comprehensive Power Distribution for IT Environments

PDUH20DV Basic Power Distribution Unit (PDU) is engineered to supply versatile, high-density power distribution for data centers, server rooms, and network closets. Supporting single-phase 100–240V AC input and a 16A max load, this PDU ensures optimal, reliable power to connected devices in demanding IT and industrial setups. The model’s durable, compact design makes it suitable for standard 1U horizontal rack installations, as well as vertical, wall-mounted, and under-counter configurations.

Key Technical Specifications:

• Power Capacity: Rated for 1.6–3.8kW power distribution depending on input voltage, with a maximum input of 16A. Total output capacities are:
  • 3.84kW (240V)
  • 3.68kW (230V)
  • 3.52kW (220V)
  • 3.33kW (208V)
  • 3.2kW (200V)
  • 2.03kW (127V)
  • 1.92kW (120V)
  • 1.6kW (100V)
• Voltage Compatibility: Accepts voltages from 100V to 240V, covering a broad range of applications and power sources.

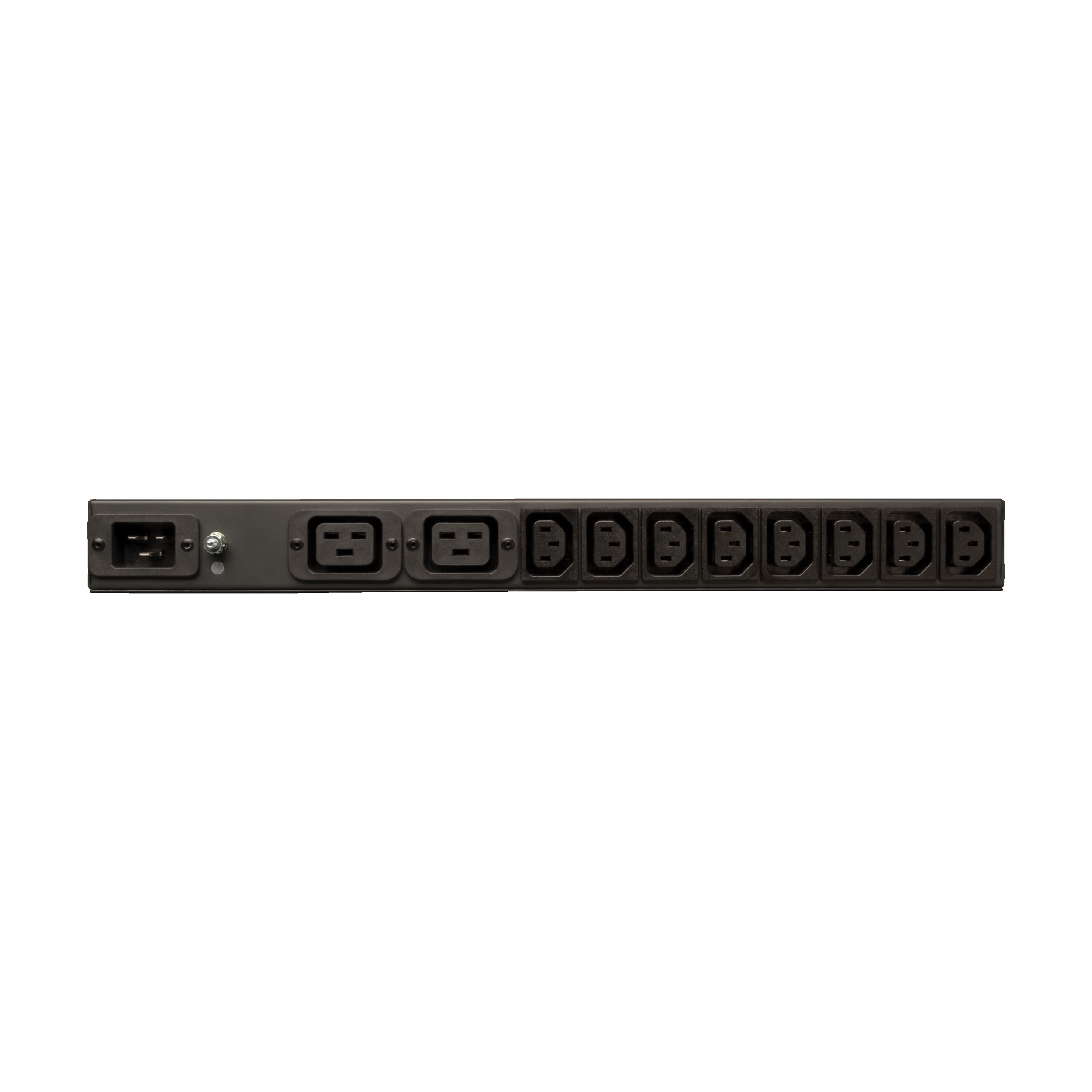

• Outlets: Features a total of 14 outlets:
  • 12 x IEC C13 (4 in front, 8 in rear)
  • 2 x IEC C19 (in rear)
• Input Cord: Detachable 12-ft. (3.66 m) C19-to-C20 cord offers extended reach and flexibility in setup.
• Adapter Included: Comes with a NEMA L6-20P adapter, providing compatibility for 208/240V power environments.
• Inlet Flexibility: The IEC C20 inlet is compatible with any country-specific power cord featuring a C19 connector, allowing for global deployment without additional adapters.

Construction and Design:

• Switchless Design: Prevents accidental shutdowns, reducing the risk of costly downtime in critical operations.
• Reversible Metal Housing: Durable all-metal build supports front or rear mounting orientation for convenient outlet access.
• Rack-Mountable Design: Supports both horizontal 1U and vertical (0U) mounting in EIA-standard 19-inch racks. Additionally, it can be wall-mounted, under-counter, or placed on workbenches for various installation needs.
• Mounting Brackets Included: Comes with brackets to simplify installation and enable flexible mounting options.

Operational Features:

• Frequency Compatibility: 50/60 Hz frequency range supports use across various geographic regions and power environments.
• Grounding: Equipped with a rear-panel grounding lug to ensure electrical safety and reduce electromagnetic interference.
• Operating Environment:
  • Temperature: Operates efficiently between 32°F and 104°F (0°C to 40°C).
  • Humidity: Suitable for environments with 5% to 95% non-condensing relative humidity.
  • Elevation: Operates up to 10,000 ft (3,000 m) in elevation, meeting industry-standard requirements for diverse locations.

Certifications and Compliance:

• Standards: IEC 62368-1, CAN/CSA-C22.2 No. 62368-1 (Canada), NOM (Mexico), UL 62368-1.
• RoHS Compliance: Environmentally friendly design in accordance with RoHS standards.
• Warranty: Comes with a 5-year limited warranty to provide extended coverage and peace of mind for users.

Application Scenarios: The PDUH20DV is designed for high-density IT environments where flexible power distribution, high reliability, and a variety of mounting options are essential. Ideal use cases include:

• Data centers and server rooms with mixed power requirements.
• Environments needing versatile mounting for easy access and compact installation.
• Scenarios where preventing accidental power-off is crucial to avoid equipment downtime.
• Applications requiring compatibility with global voltage standards and country-specific power configurations.

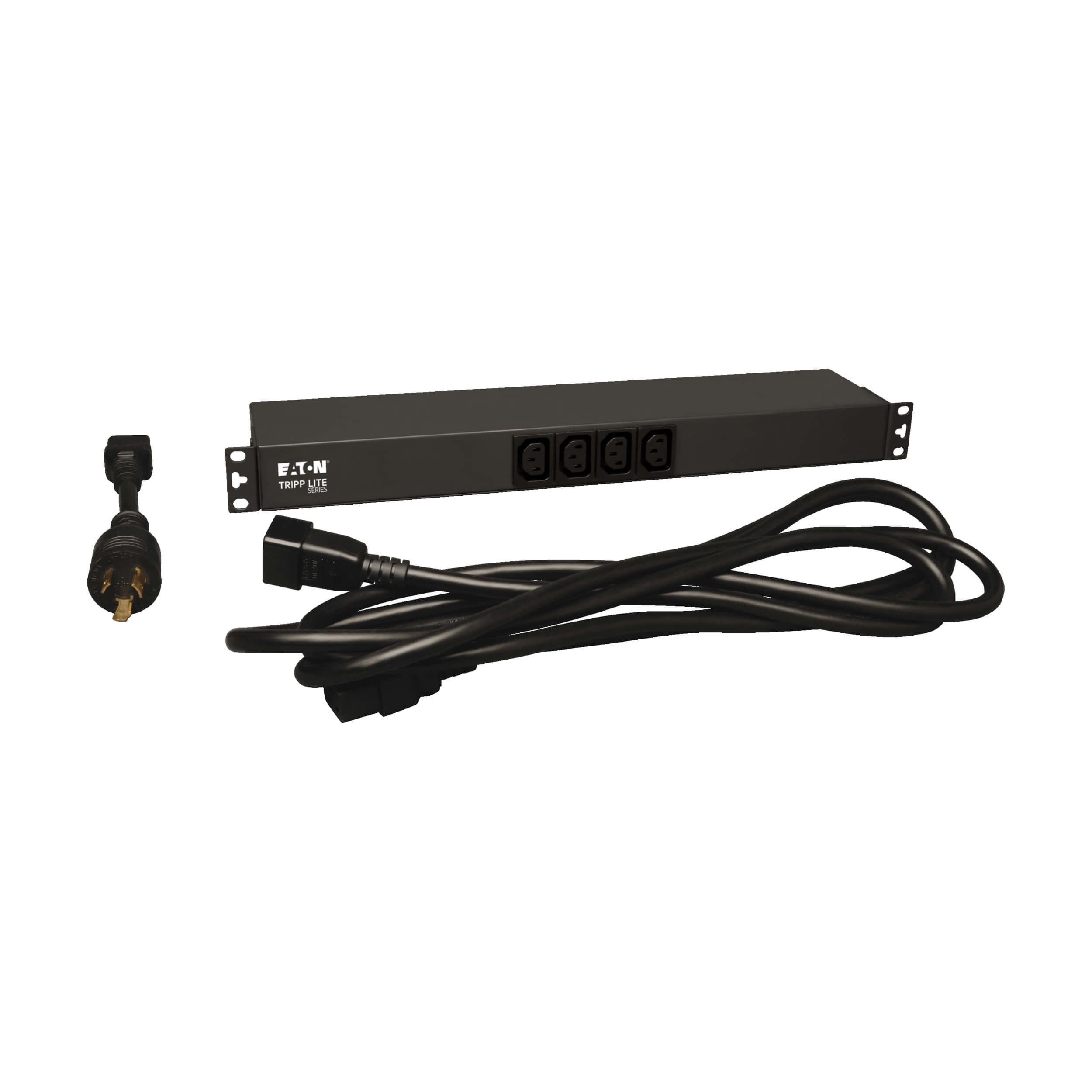

In the Box:

• PDUH20DV 1.6–3.8kW Single-Phase 100–240V Basic PDU
• Detachable 12-ft. (3.66 m) C19-to-C20 power cord
• NEMA L6-20P plug adapter
• Mounting brackets
• Owner’s manual and warranty information

Summary: The PDUH20DV offers robust, reliable power distribution for single-phase, high-density environments. With 14 outlets, broad voltage compatibility, and flexible mounting options, this PDU is ideal for professional IT and industrial applications. The durable, switchless, all-metal design ensures secure, uninterrupted operation for connected devices in any critical setup.
