3.8kW Single-Phase Switched Automatic Transfer Switch (ATS) PDU | Model: PDUMH20HVATNET

PDUMH20HVATNET is a robust 3.8kW single-phase switched Automatic Transfer Switch (ATS) Power Distribution Unit (PDU) designed for high-availability networks and single-corded devices. With dual C20 inlets for primary and secondary power sources, this PDU ensures uninterrupted power delivery and flexible redundancy for critical equipment. It supports 200-240V power configurations and provides efficient power management with a suite of network monitoring capabilities.

Key Features

1. Automatic Transfer Switching (ATS)

• Provides power redundancy for single-corded devices by switching between two AC sources.
• Transfers power between inputs within 2-7 milliseconds to prevent downtime.

2. Switched Power Distribution

• 10 Outlets: 8 individually switchable C13 outlets and 2 unswitched C19 outlets.
• Allows real-time control and monitoring of each outlet for precise power management.

3. High Power Capacity

• 3.8kW output capacity (200-240V, 16A) to support high-density equipment racks.
• Supports single-phase voltage (200, 208, 220, 230, 240V) with 50/60Hz frequency compatibility.

4. LX Platform Network Interface

• Java-free HTML5 web interface for secure remote monitoring and management.
• Provides real-time power alerts via SNMP, email, telnet, and SSH.
• Compatible Protocols: HTTP, HTTPS, SMTP, SNMPv1/v2/v3, telnet, FTP, and NTP.

5. Environmental Monitoring Options

• Optional EnviroSense2 modules enable environmental monitoring (temperature, humidity, etc.), enhancing data center management.

6. Durable and Compact Design

• 1U horizontal rackmount form factor fits standard equipment racks.
• Durable metal construction ensures long-lasting performance in demanding environments.

Technical Specifications

• Power Input:
  • Dual C20 inlets with two 12 ft (3.7m) C19 to C20 power cables.
  • Supports two separate primary and secondary 16/20A 200-240V circuits.
• Power Output:
  • Capacity: 3.84kW (240V); 3.33kW (208V); 3.2kW (200V)
  • Maximum output per outlet: 16A on C19; 12A on C13.

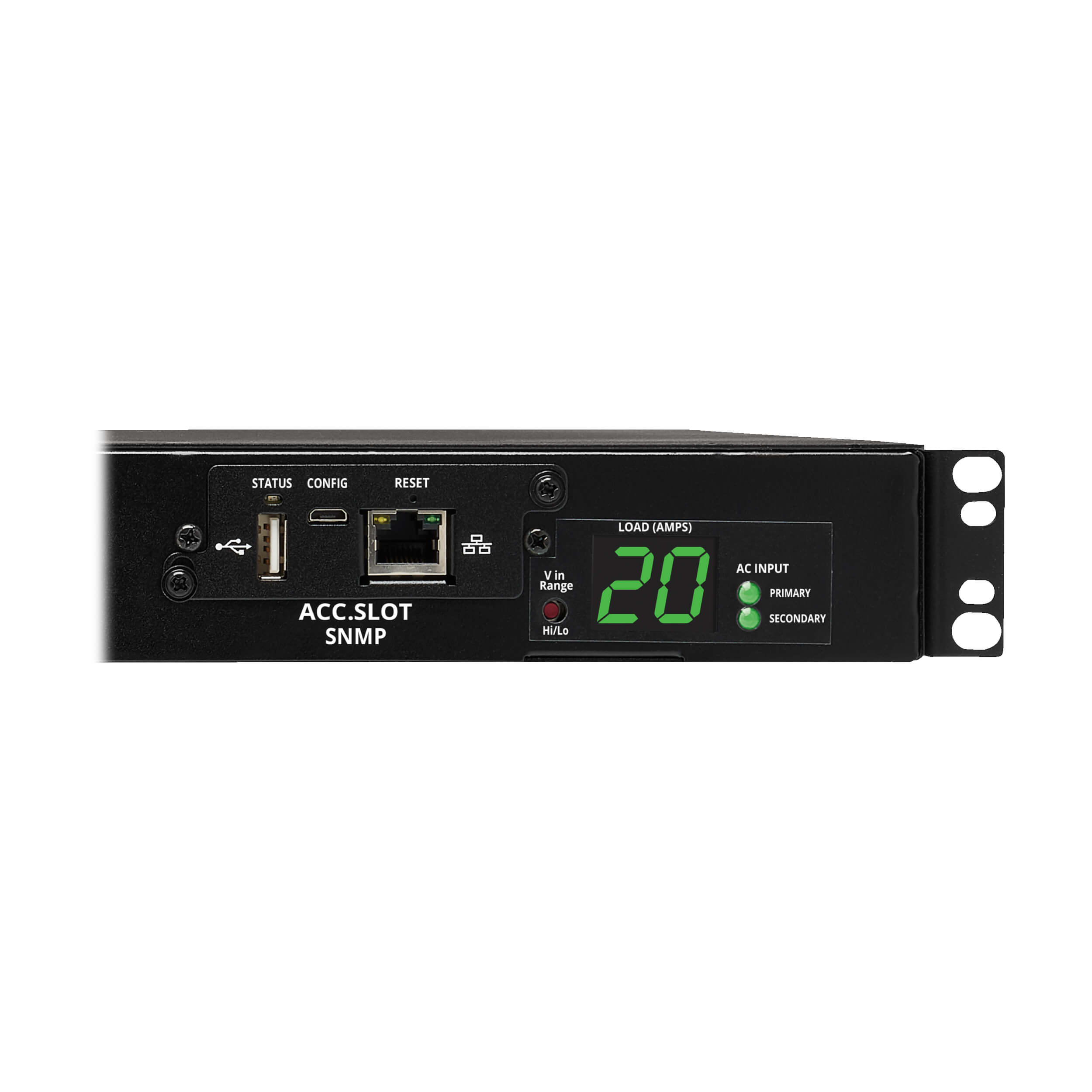

• User Interface:
  • Front panel digital amp meter to display total output current.
  • LED indicators for power availability and outlet status.
• Environmental Conditions:
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Relative Humidity: 5% to 95% non-condensing
• Network Ports:
  • RJ45 network port for Ethernet connectivity.
  • Micro-USB and USB A ports for configuration and environmental sensors.
• Compliance:
  • Certifications: CE, RoHS, FCC Part 15 Class A, UL 60950-1
  • TAA compliant for GSA Schedule purchases.

Package Includes

• PDU Unit with ATS and Network Interface
• Two C19 to C20 12 ft (3.7m) power cables
• Plug-lock cable retention sleeves for secure device connection
• User manual and warranty documentation

Why Choose the PDUMH20HVATNET?

PDUMH20HVATNET is ideal for data centers and server rooms requiring reliable, high-density power distribution and seamless power transfer between sources. The PDU’s individual outlet switching, remote monitoring, and environmental monitoring options make it a versatile, intelligent solution for managing network uptime in critical IT applications.
