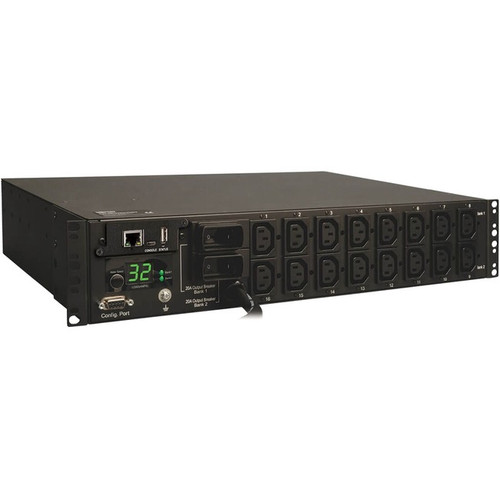

Tripp Lite PDUMH32HV 7.4kW Single-Phase Metered PDU
KSh 80,000.00 (+ VAT(16%)
Key Features
The Tripp Lite PDUMH32HV is a 7.4kW single-phase metered Power Distribution Unit (PDU) designed for high-density IT environments. Its key features include:
- High Power Capacity: Supports up to 7.4kW of power at 230V, suitable for demanding applications.
- Ample Outlet Provision: Equipped with 18 total outlets—16 IEC C13 and 2 IEC C19—to accommodate a variety of equipment.
- Metered Load Monitoring: Features dual lighted current meters that separately report power consumption in amperes for each load bank, aiding in load balancing and preventing circuit overloads.
- Robust Input Connection: Comes with an attached IEC-309 32A (2P+E) input plug and a 12 ft (3.6 meters) line cord, ensuring a secure and reliable power connection.
- Rack-Mountable Design: Occupies 2U of rack space, facilitating easy integration into standard 19-inch racks.
- Overload Protection: Incorporates two 16A circuit breakers, each protecting a separate load bank of 8 C13 and 1 C19 outlets, enhancing equipment safety.
- TAA Compliance: Meets the standards of the Trade Agreements Act, making it suitable for GSA Schedule purchases.
These features make the PDUMH32HV a reliable and efficient solution for distributing and monitoring power in critical IT and data center applications.
Tripp Lite PDUMH32HV 7.4kW Single-Phase Metered PDU
The Tripp Lite PDUMH32HV is a 7.4kW single-phase metered Power Distribution Unit (PDU) designed for high-density IT environments. Below are its detailed specifications:
Electrical Specifications:
- Input Voltage: 230V AC
- Input Current: 32A
- Maximum Output Capacity: 7.4kW
- Frequency Compatibility: 50/60 Hz
Input Details:
- Plug Type: IEC-60309 32A Blue (2P+E)
- Cord Length: 12 ft. (3.66 meters)
Output Details:
- Receptacles:
- 16 x C13
- 2 x C19
- Overload Protection: Two 20A circuit breakers, each protecting 8 outlets
Physical Specifications:
- Form Factor: 2U rack-mountable
- Dimensions (H x W x D): 3.5 x 17.5 x 12.5 inches
- Weight: 13.7 lbs.
- Material of Construction: Steel
Metering and Monitoring:
- Local Metering: Digital display reports output current in amps for three separately metered loading segments:
- Bank 1: Outlets 1-8
- Bank 2: Outlets 9-16
- Bank 3: All outlets combined
- LED Indicators: 16 LEDs indicate power status for each outlet; additional LEDs identify the current meter’s reporting bank
Environmental Specifications:
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Storage Temperature: 5°F to 140°F (-15°C to 60°C)
- Relative Humidity: 0-95% non-condensing
- Operating Elevation: Up to 10,000 ft. (3,000 meters)
Compliance and Warranty:
- Certifications: TAA Compliant
- Warranty: 2-year limited warranty
This PDU is ideal for distributing and monitoring power in high-density IT environments, providing reliable power distribution with local metering capabilities.
