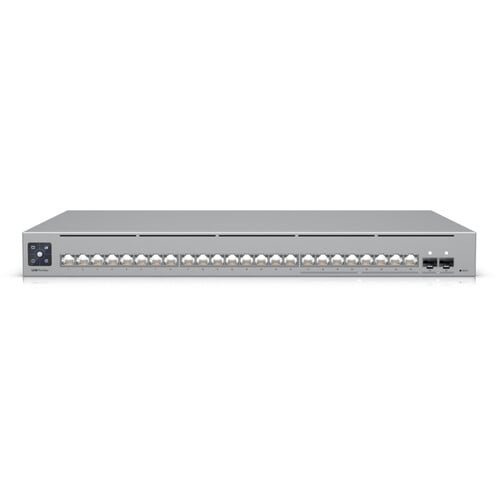

Ubiquiti UniFi Pro Max 24 PoE 24-Port Switch (USW-Pro-Max-24-PoE)

Ubiquiti UniFi Pro Max 24 PoE 24-Port Switch (USW-Pro-Max-24-PoE) is a high-performance, enterprise-grade managed network switch designed to deliver powerful Layer 2/Layer 3 performance with advanced Power over Ethernet (PoE) capabilities and flexible connectivity. Built for modern business networks—such as offices, campuses, hotels, retail, and data centers—this switch combines high-speed connectivity, multi-gigabit PoE++ support, 10G uplinks, Etherlighting™ visual indicators, and UniFi Network integration into a robust 1U rack-mountable form factor. With a generous PoE power budget and intelligent management features, it’s ideal for powering access points, IP cameras, VoIP phones, and PoE-enabled devices while ensuring scalable network growth.

Product Features

High-Power PoE++ Support

Provides extensive PoE power for network devices with a total PoE budget of up to 400 W, supporting high-powered PoE++ (802.3bt) and PoE+ (802.3at) devices.

Multi-Gigabit and Fiber Uplinks

Includes eight 2.5 GbE PoE++ ports, sixteen 1 GbE PoE+ and PoE++ ports, and two 10 GbE SFP+ fiber ports for high-speed uplinks, aggregation, and advanced network expansion.

Etherlighting™ Visual Indicators

Innovative Etherlighting™ port lighting provides real-time visual cues for port location, speed/link status, and VLAN or network assignment, simplifying troubleshooting and monitoring.

UniFi Network Management Integration

Seamlessly integrates with the UniFi Network Controller software (local or cloud-hosted) for centralized configuration, monitoring, performance analytics, and firmware updates.

Built-In Touchscreen Display

A 1.3-inch LCM touchscreen offers quick access to system status, device information, and basic settings without needing a separate controller.

Rack-Mountable and Durable Design

The robust 1U rack-mountable chassis is built with steel construction for durable and quiet operation in enterprise network environments.

Product Specifications

• Model: USW-Pro-Max-24-PoE
• Brand: Ubiquiti
• Switch Type: Managed PoE++ (Layer 2/Layer 3)
• Total Ports: 24 RJ45 Ethernet
• PoE Ports:
  • 8 × 1/2.5 GbE RJ45 PoE++
  • 16 × 1 GbE RJ45 (8 PoE+, 8 PoE++)
• Uplinks: 2 × 10 GbE SFP+ fiber ports
• Total PoE Budget: Up to 400 W
• PoE Standards:
  • PoE (802.3af)
  • PoE+ (802.3at)
  • PoE++ (802.3bt)
• Switching Capacity: 112 Gbps
• Non-Blocking Throughput: 56 Gbps
• Touchscreen: 1.3″ LCM display
• Management: UniFi Network Controller, touchscreen, Ethernet interface
• Power Supply: Internal (100–240 V AC) with DC USP-RPS backup support
• Rack Form Factor: 1U rack-mountable
• Operating Temperature: −5 °C to 40 °C
• Certifications: CE, FCC, IC
• Application: Enterprise networks, offices, campuses, hospitality, surveillance and Wi-Fi deployments
