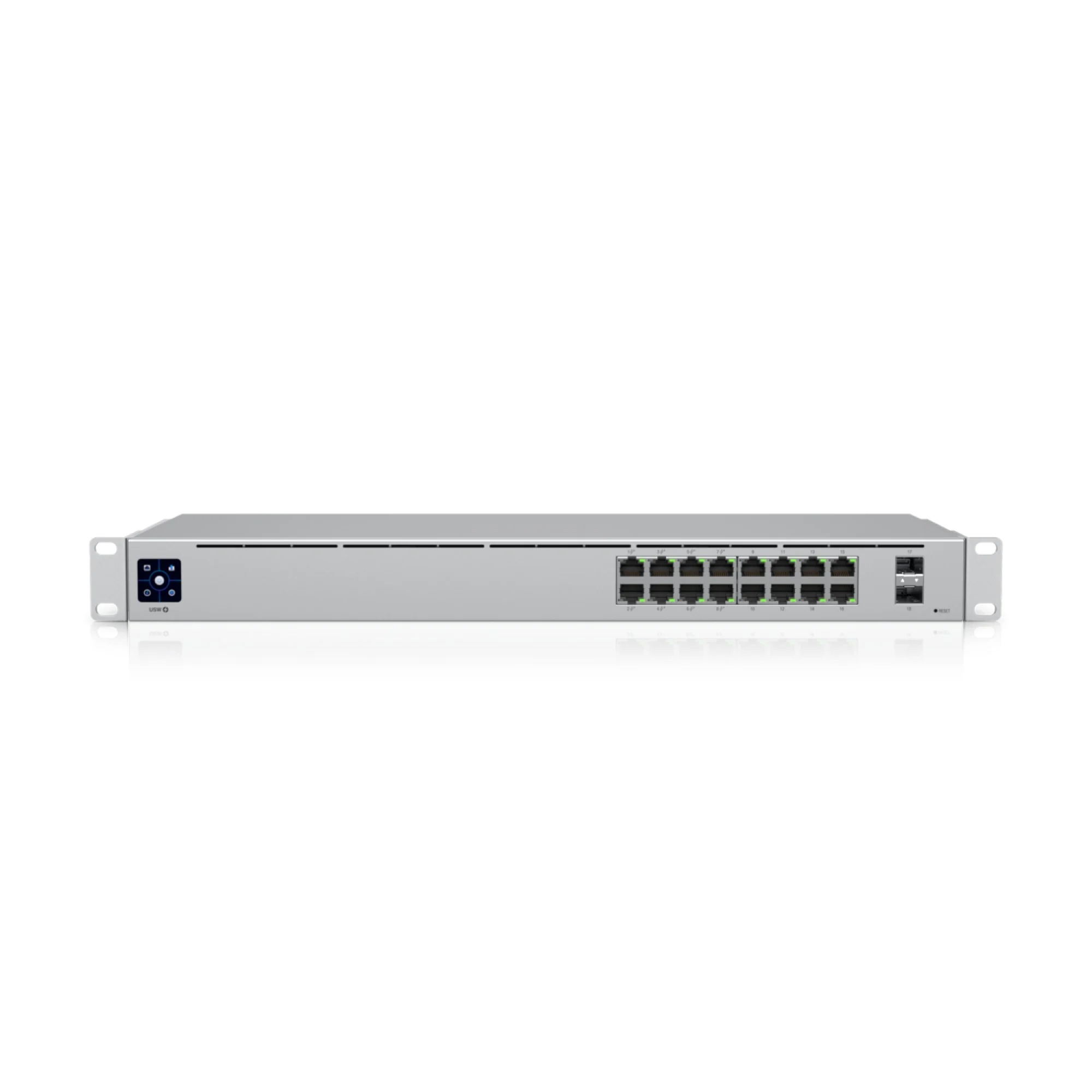

Ubiquiti UniFi 16-Port PoE Switch (USW-16-POE)

Ubiquiti UniFi 16-Port PoE Switch (USW-16-POE) is a fully managed Layer 2 Gigabit switch designed for small and medium-sized businesses, enterprise branch offices, and advanced home networks. Featuring 16 Gigabit RJ45 ports, including 8 IEEE 802.3af/at PoE+ ports, and 2 Gigabit SFP uplink ports, this switch delivers reliable connectivity for wireless access points, IP cameras, VoIP phones, and other PoE-powered devices. With seamless integration into the UniFi Network application, a fanless design for silent operation, and a built-in 1.3-inch touchscreen for quick status monitoring, the USW-16-POE offers an efficient and scalable networking solution with centralized management.

Product Features

16 Gigabit Ethernet Ports

The switch provides 16 auto-sensing Gigabit Ethernet RJ45 ports, enabling high-speed wired connectivity for computers, servers, printers, IP phones, wireless access points, and other network devices.

8 PoE+ Ports with 42W Power Budget

Eight IEEE 802.3af/at PoE+ ports deliver both data and power over a single Ethernet cable, supporting compatible UniFi access points, IP cameras, VoIP phones, and other PoE-enabled devices with a total PoE budget of 42W.

Dual Gigabit SFP Uplink Ports

Two dedicated 1GbE SFP ports provide flexible fiber uplink connectivity for linking switches, connecting to aggregation switches, or extending network infrastructure over longer distances.

Centralized UniFi Network Management

Manage, monitor, and configure the switch through the UniFi Network application. Create VLANs, configure port profiles, monitor traffic statistics, enable link aggregation, and manage multiple UniFi devices from a single dashboard.

Silent Fanless Operation

The compact fanless design eliminates operational noise, making the switch suitable for offices, conference rooms, classrooms, and other noise-sensitive environments while maintaining reliable performance.

Built-In 1.3-Inch Touchscreen Display

A 1.3-inch touchscreen LCD provides instant access to device information, port status, PoE utilization, IP configuration, and system health without requiring a computer.

Advanced Layer 2 Switching Features

Support for VLANs, port mirroring, link aggregation, storm control, Spanning Tree Protocol (STP), flow control, and 802.1X authentication enables secure and efficient network management for growing business environments.

Product Specifications

• Brand: Ubiquiti
• Product Family: UniFi
• Model: USW-16-POE
• Product Type: Managed Layer 2 Gigabit PoE Switch
• Total Ports: 16 × 10/100/1000 Mbps RJ45 Ethernet
• PoE Ports: 8 × IEEE 802.3af/at PoE+
• SFP Ports: 2 × 1Gb SFP
• Switching Capacity: 36 Gbps
• Non-Blocking Throughput: 18 Gbps
• Forwarding Rate: 26.78 Mpps
• Total PoE Budget: 42W
• Maximum PoE Output per Port: 32W
• Management Interface: UniFi Network Application
• Display: 1.3-inch Touchscreen LCD
• Layer Support: Layer 2
• Supported Features: VLAN, Link Aggregation, Port Mirroring, Spanning Tree Protocol (STP), Storm Control, Jumbo Frames, Flow Control, 802.1X Authentication
• Cooling: Fanless Passive Cooling
• Rack Mountable: Yes (1U)
• Power Supply: Internal AC Power Supply
• Input Voltage: 100–240V AC, 50/60Hz
• Maximum Power Consumption (Without PoE): 18W
• Dimensions: 442.4 × 200 × 43.7 mm
• Weight: 2.8 kg
• Operating Temperature: -5°C to 40°C
• Operating Humidity: 10% to 90% Non-Condensing
• Certifications: CE, FCC, IC
• Package Contents: UniFi USW-16-POE Switch, Power Cord, Rack Mount Kit, Mounting Hardware, Quick Start Guide.
