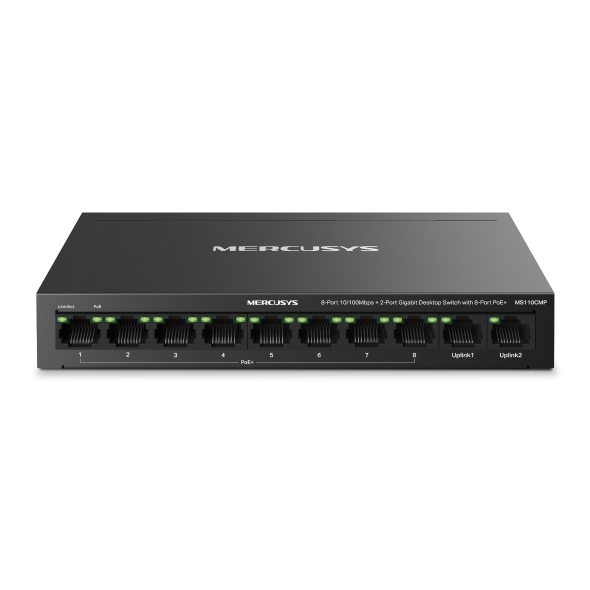

Mercusys MS110CMP 10-Port 10/100Mbps Desktop Switch

Mercusys MS110CMP 10-Port 10/100Mbps Desktop Switch is a reliable unmanaged network switch designed for small business, home office, and IP surveillance systems that require stable wired connectivity and Power over Ethernet (PoE) support. It features 10 Ethernet ports, including 8 PoE+ ports and 2 uplink ports, allowing both data transmission and power delivery through a single cable. With a total PoE power budget of up to 115W, it is ideal for powering IP cameras, wireless access points, and VoIP phones. Its plug-and-play design, metal housing, and advanced PoE management features make it a practical and efficient solution for scalable network deployments.

Product Features

8 PoE+ Ports for Power and Data Delivery

Provides 8 IEEE 802.3af/at PoE+ ports that deliver both power and data over a single Ethernet cable, simplifying installation for IP cameras, access points, and IP phones.

10/100Mbps Fast Ethernet Connectivity

Delivers stable Fast Ethernet speeds across all ports, making it suitable for surveillance systems, office networking, and basic wired internet distribution.

Dual Uplink Gigabit Ports

Includes 2 uplink ports for connecting to routers or NVR systems, ensuring smooth integration into larger network infrastructures.

High PoE Power Budget

Supports up to 30W per PoE port with a total power budget of 115W, enabling multiple powered devices to run simultaneously.

Extend Mode for Long-Distance Transmission

Extends PoE transmission distance up to 250 meters, making it suitable for wide-area CCTV installations such as buildings, warehouses, and outdoor setups.

Isolation Mode for Network Security

Allows one-click port isolation to prevent broadcast storms and improve network security by separating traffic between selected ports.

PoE Auto Recovery Function

Automatically detects and reboots unresponsive PoE devices to reduce downtime and improve system reliability.

Durable Metal Housing with Silent Operation

Built with a sturdy metal casing for better heat dissipation and long-term durability while operating silently without a fan.

Product Specifications

• Brand: Mercusys
• Model: MS110CMP
• Product type: 10-port unmanaged Fast Ethernet switch
• Ports: 8 × 10/100Mbps PoE+ ports, 2 × 10/100Mbps uplink ports
• PoE standard: IEEE 802.3af/at
• PoE ports: Port 1–8
• PoE power budget: Up to 115W
• Max power per port: Up to 30W
• Data rate: 10/100Mbps per port (Fast Ethernet)
• Switching capacity: 5.6Gbps
• MAC address table: 2K entries
• Jumbo frame: 2KB
• Installation: Desktop or wall-mount
• Housing: Metal casing
• Cooling: Fanless (silent operation)
• Power supply: External adapter
• Applications: CCTV systems, IP cameras, VoIP phones, wireless access points, small office networks
