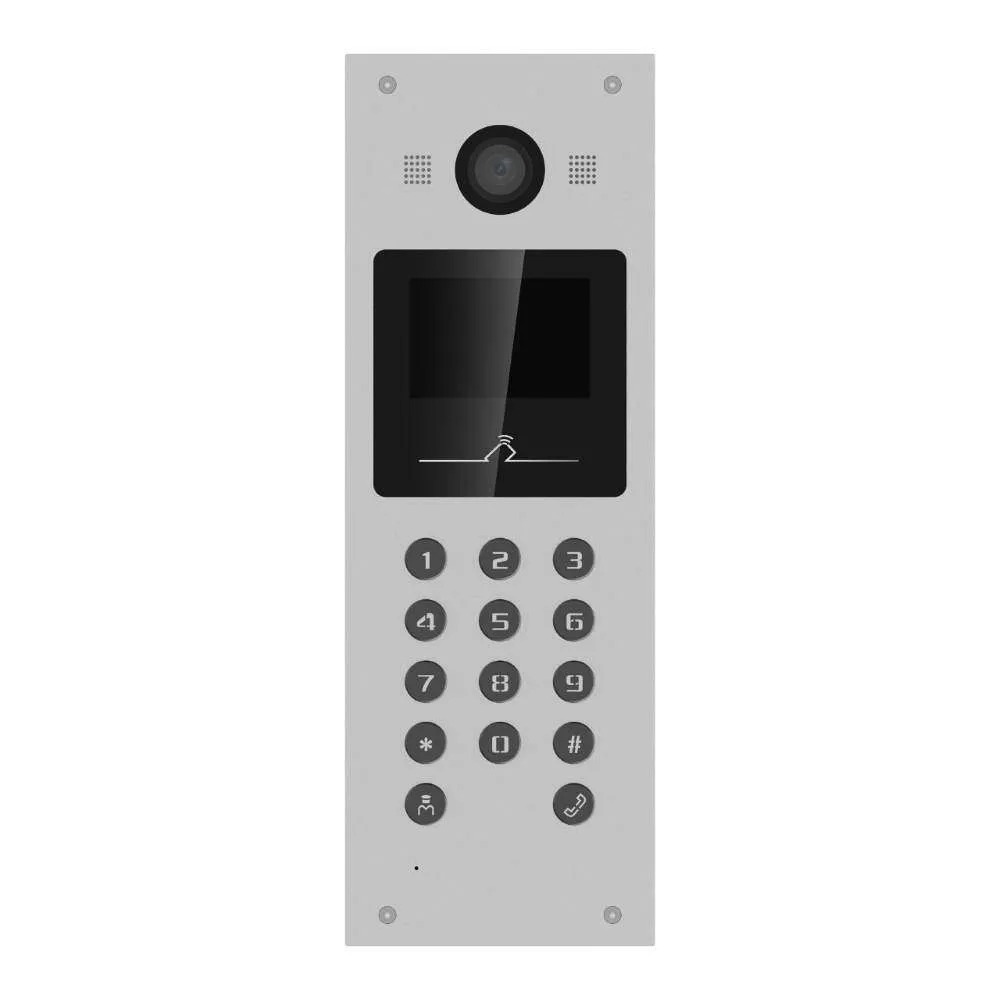

Hikvision DS-KD8023-E6 2nd Gen Intercom Apartment Door Station

Hikvision DS-KD8023-E6 2nd Gen Intercom Apartment Door Station is a professional IP video intercom solution designed for apartment complexes, residential buildings, offices, and commercial properties. Featuring a 2 MP HD camera, a 3.5-inch color LCD, an integrated M1 card reader, and PIN code authentication, this intelligent door station delivers secure visitor management and convenient access control. Its IP65-rated metal housing ensures reliable outdoor performance, while support for TCP/IP networking, PoE, and remote web configuration allows seamless integration into modern Hikvision video intercom and access control systems. The DS-KD8023-E6 provides clear two-way audio, high-quality video surveillance, and flexible installation, making it an ideal solution for multi-tenant environments.

Product Features

High-Definition 2 MP Camera

The built-in 2 MP HD camera captures sharp, detailed video with excellent image quality, allowing residents and security personnel to clearly identify visitors before granting access.

3.5-Inch Color LCD Display

A bright 3.5-inch color LCD screen with 480 × 320 resolution provides an intuitive user interface for visitor interaction, resident selection, and access control operations.

Multiple Secure Access Methods

The door station supports secure entry using M1 cards and PIN codes, providing flexible authentication options for residents, staff, and authorized visitors while improving building security.

Two-Way Audio Communication

An integrated omnidirectional microphone and loudspeaker deliver clear full-duplex audio communication, enabling visitors and occupants to communicate efficiently before unlocking the entrance.

Wide-Angle Camera Coverage

The 120-degree viewing angle provides broader coverage of the entrance area, minimizing blind spots and improving visitor identification.

Durable IP65-Rated Metal Construction

Designed for outdoor installation, the robust metal enclosure offers IP65 protection against dust and water, ensuring dependable operation in challenging weather conditions.

Flexible System Integration

The DS-KD8023-E6 supports TCP/IP networking and integrates seamlessly with Hikvision indoor stations, access control systems, network video recorders, and security management platforms for a complete building security solution.

Remote Configuration and Management

System administrators can conveniently configure and manage the door station remotely through a web interface, simplifying deployment, maintenance, and updates across multiple installations.

Multiple Interface Support

The device includes RJ45 Ethernet, RS-485, Wiegand, alarm inputs, relay outputs, and door control interfaces, allowing easy integration with third-party security and access control equipment.

Power over Ethernet (PoE) Support

With IEEE 802.3af Power over Ethernet support, the door station can receive both power and network connectivity through a single Ethernet cable, reducing installation complexity and cost.

Product Specifications

• Model: Hikvision DS-KD8023-E6
• Product Type: IP Video Intercom Apartment Door Station
• Generation: 2nd Generation
• Camera Resolution: 2 MP HD Color Camera
• Viewing Angle: 120 degrees
• Display: 3.5-inch Color LCD
• Display Resolution: 480 × 320 pixels
• Audio: Built-in Omnidirectional Microphone and Loudspeaker
• Audio Communication: Full-Duplex Two-Way Audio
• Access Methods: M1 Card and PIN Code
• Card Capacity: Up to 10,000 M1 Cards
• Network Interface: 10/100 Mbps RJ45 Ethernet
• Communication Protocols: TCP/IP, RTSP, SIP
• Remote Configuration: Web Browser
• Interfaces:
  • RJ45 Ethernet
  • RS-485
  • Wiegand
  • Alarm Inputs
  • Relay Outputs
  • Door Contact Inputs
  • Exit Button Interface
• Lock Control: Dual Relay Output
• Power Supply: 12 V DC or IEEE 802.3af PoE
• Maximum Power Consumption: 10 W
• Protection Rating: IP65
• Housing Material: Metal
• Installation Type: Flush Mount
• Operating Temperature: -40°C to 60°C
• Operating Humidity: 10% to 90% Non-Condensing
• Configuration Method: Local and Remote Web Management
• Application: Apartment Buildings, Residential Estates, Offices, Commercial Buildings, Gated Communities, and Multi-Tenant Properties
• Compatibility: Hikvision IP Video Intercom and Access Control Systems
• Certifications: CE, FCC, RoHS (model and region dependent)
