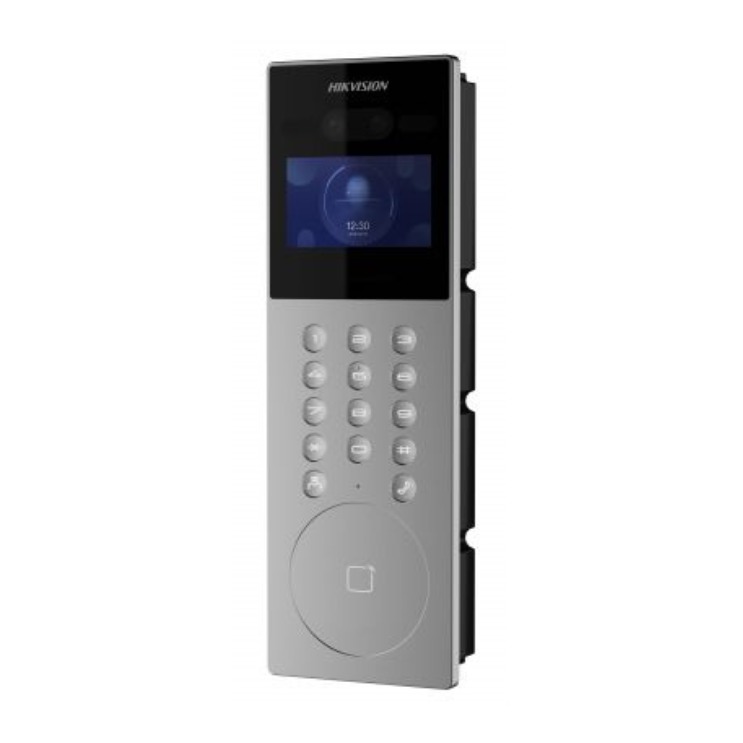

Hikvision 2MP HD Facial Door Station DS-KD9203-FE6

Hikvision DS-KD9203-FE6 2MP HD Facial Door Station is a premium IP video intercom and access control solution designed for apartment buildings, office complexes, gated communities, and commercial facilities. Featuring dual 2 MP HD cameras, a 4.3-inch color LCD display, and advanced biometric authentication, it provides secure and convenient visitor management. The terminal supports face recognition, fingerprint verification, MIFARE card authentication, and PIN code access while incorporating AI-powered anti-spoofing technology to prevent unauthorized entry. With IP65 weather protection, two-way audio, and seamless integration with Hikvision IP video intercom systems, the DS-KD9203-FE6 delivers reliable security for modern access control applications.

Product Features

Advanced Facial Recognition Authentication

Powered by deep learning algorithms, the door station recognizes authorized users in seconds with high accuracy while supporting anti-spoofing technology to prevent access using photographs or videos.

Multiple Secure Unlock Methods

Users can gain access using face recognition, fingerprint verification, MIFARE cards, or PIN codes, providing flexible authentication options for different security requirements.

Dual 2 MP HD Cameras

Dual wide-angle 2 MP cameras capture high-definition video for accurate facial recognition and clear video intercom communication, even in challenging lighting conditions.

4.3-Inch Color LCD Display

The integrated 4.3-inch LCD screen with 800 × 480 resolution offers a clear interface for visitor interaction, authentication, and system operation.

IP Video Intercom with Two-Way Audio

Built-in microphone and loudspeaker provide full-duplex two-way communication between visitors and indoor stations, enabling efficient visitor verification and remote communication.

IP65 Weather-Resistant Design

The rugged IP65-rated enclosure protects against dust and water, making the door station suitable for long-term outdoor installations in various weather conditions.

Comprehensive Access Control Interfaces

The door station includes Ethernet, RS-485, alarm inputs, relay outputs, door lock control, exit button, door contact, and tamper alarm interfaces for seamless integration with access control and security systems.

Remote Web Configuration

Administrators can configure and manage the device remotely through a web browser, simplifying deployment, maintenance, and system updates.

Product Specifications

• Brand: Hikvision
• Model: DS-KD9203-FE6
• Product Type: IP Facial Recognition Door Station
• Operating System: Embedded Linux
• Display: 4.3-inch Color LCD
• Display Resolution: 800 × 480
• Camera: Dual 2 MP HD Wide-Angle Cameras
• Video Compression: H.264, H.265, MJPEG
• Main Stream Resolution: Up to 1080p at 30 fps
• Face Capacity: Up to 5,000 Faces
• Fingerprint Capacity: Up to 5,000 Fingerprints
• Card Capacity: Up to 50,000 MIFARE Cards
• User Capacity: Up to 10,000 Users
• Authentication Methods:
  • Face Recognition
  • Fingerprint
  • MIFARE Card
  • PIN Code
• Face Anti-Spoofing: Supported
• Card Type: MIFARE M1
• Audio:
  • Built-in Omnidirectional Microphone
  • Built-in Loudspeaker
  • Full-Duplex Two-Way Audio
  • Echo Cancellation
  • Noise Suppression
• Network Interface: 1 × RJ45 10/100/1000 Mbps Ethernet
• Network Protocols:
  • TCP/IP
  • RTSP
  • IPv6
  • ONVIF
• Interfaces:
  • 2 × RS-485
  • 4 × Alarm Inputs
  • 2 × Door Lock Outputs
  • 1 × Exit Button Input
  • 1 × Door Contact Input
  • 1 × Tamper Alarm
• Infrared Illumination: Yes, up to 3 m
• Wide Dynamic Range: 120 dB Digital WDR
• Protection Rating: IP65
• Power Supply: 12 V DC, 1.5 A
• Power Consumption: ≤ 13 W
• Operating Temperature: -30°C to 60°C
• Operating Humidity: 10%–90% Non-Condensing
• Installation: Flush Mount
• Dimensions: 373 × 124 × 43.7 mm
• Weight: Approximately 1.05 kg
• Compatible Systems: Hikvision IP Video Intercom and Access Control Platforms
• Ideal Applications:
  • Apartment Buildings
  • Gated Communities
  • Office Buildings
  • Commercial Complexes
  • Industrial Facilities
  • Educational Institutions
  • Healthcare Facilities
  • High-Security Access Control Installations
