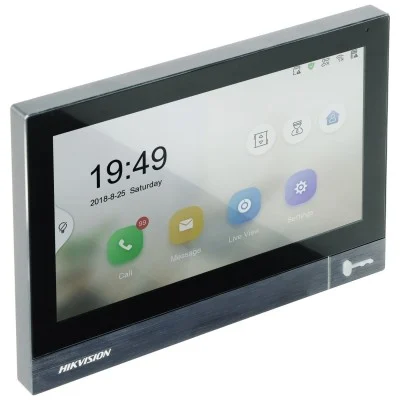

Hikvision DS-KH8381-WTE1 8 Series Indoor Station

Hikvision DS-KH8381-WTE1 8 Series Indoor Station is a premium IP video intercom monitor designed for smart homes, apartments, villas, offices, and commercial buildings. Equipped with a 7-inch IPS capacitive touch screen, built-in Wi-Fi, IEEE 802.3at Power over Ethernet (PoE), and a durable die-cast aluminum alloy housing, this indoor station provides seamless visitor communication, remote door unlocking, live video monitoring, and smart building integration. Compatible with Hikvision IP video intercom systems and the Hik-Connect mobile platform, the DS-KH8381-WTE1 enables users to answer calls, monitor entrances, and manage access from virtually anywhere, making it an excellent choice for modern security and access control applications.

Product Features

7-Inch IPS Capacitive Touch Display

The indoor station features a high-quality 7-inch IPS color touch screen with a resolution of 1024 × 600, delivering sharp images, vibrant colors, and wide viewing angles for an intuitive user experience.

Crystal-Clear Two-Way Audio

Built-in omnidirectional microphone and loudspeaker support full-duplex communication with advanced noise suppression and echo cancellation, ensuring clear conversations between residents and visitors.

Remote Door Unlocking

Users can answer visitor calls, unlock doors, and control building access directly from the indoor station or remotely through the Hik-Connect mobile application.

Live Video Monitoring

The DS-KH8381-WTE1 allows live viewing of connected Hikvision door stations and up to 16 network cameras, enhancing security with real-time visual monitoring.

Built-In Wi-Fi and PoE Support

Integrated Wi-Fi (IEEE 802.11 b/g/n) and IEEE 802.3at PoE provide flexible installation options while reducing cabling requirements for professional deployments.

Premium Aluminum Alloy Construction

Its die-cast aluminum alloy enclosure offers exceptional durability while complementing modern residential and commercial interiors with a sleek appearance.

Smart Building Integration

The indoor station supports elevator access control, alarm inputs, relay outputs, and RS-485 communication, making it suitable for integrated building management and security systems.

Flexible Installation Options

The unit supports surface mounting, flush mounting, and desktop installation, allowing installers to select the most suitable mounting method for each project.

Large System Capacity

Supporting up to 16 indoor extensions and 16 linked IP cameras, the DS-KH8381-WTE1 is ideal for scalable installations in apartments, villas, offices, and multi-unit developments.

Seamless Hikvision Ecosystem Compatibility

Designed to work seamlessly with Hikvision IP video intercom devices, access control systems, and Hik-Connect, the indoor station delivers centralized communication and access management.

Product Specifications

• Model: Hikvision DS-KH8381-WTE1
• Product Type: IP Video Intercom Indoor Station
• Series: Hikvision 8 Series
• Operating System: Embedded Linux
• Display Size: 7-inch IPS Color Touch Screen
• Display Resolution: 1024 × 600
• Touch Screen: Capacitive Touch
• Audio Input: Built-in Omnidirectional Microphone
• Audio Output: Built-in Loudspeaker
• Audio Compression: G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1
• Audio Features: Noise Suppression and Echo Cancellation
• Video Compression: H.264, H.265
• Network Protocols: TCP/IP, SIP, RTSP
• Network Interface: 1 × RJ45 10/100 Mbps Ethernet
• Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n
• Power Supply: 12 V DC, 1.5 A or IEEE 802.3at PoE
• Maximum Power Consumption: 12 W
• RAM: 128 MB
• ROM: 32 MB
• TF Card Support: Up to 128 GB
• Linked Indoor Extensions: Up to 16
• Linked Network Cameras: Up to 16
• Alarm Inputs: 8
• RS-485 Interface: 1
• Relay Outputs: 4
• Lock Control: 4 Relays (Maximum 30 V DC, 1 A)
• Power Output: 12 V DC, Maximum 0.5 A
• Installation Options: Surface Mount, Flush Mount, Desktop Mount
• Housing Material: Die-Cast Aluminum Alloy
• Operating Temperature: -10°C to 50°C
• Operating Humidity: 10% to 90% Non-Condensing
• Dimensions: 180.4 × 128.4 × 21.8 mm
• Weight: Approximately 412.2 g
• Application: Apartments, Villas, Offices, Commercial Buildings, Residential Estates, and Smart Buildings
• Compatibility: Hikvision IP Video Intercom Systems and Hik-Connect
• Certifications: CE, FCC, RoHS (Region Dependent)
