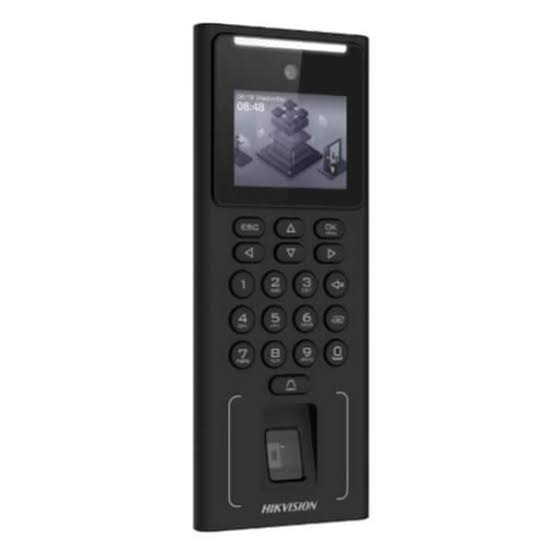

Hikvision DS-K1T321MFX Face Recognition Terminal

Hikvision DS-K1T321MFX Face Recognition Terminal is a compact and intelligent biometric access control and time attendance solution designed for offices, schools, commercial buildings, financial institutions, and industrial facilities. Powered by advanced deep learning facial recognition technology, it delivers fast and accurate user authentication in less than 0.2 seconds while supporting multiple verification methods, including face recognition, fingerprint, MIFARE card, and PIN code. Featuring a 2.4-inch LCD display, a 2 MP camera, and integrated access control interfaces, the DS-K1T321MFX provides secure, efficient, and reliable identity management for modern businesses.

Product Features

AI-Powered Face Recognition

Advanced deep learning algorithms provide facial recognition in less than 0.2 seconds per user with an accuracy rate exceeding 99%, enabling fast, secure, and touchless access control for employees and visitors.

Multiple Authentication Methods

The terminal supports face recognition, fingerprint authentication, MIFARE (M1) card verification, and PIN code access, allowing organizations to implement flexible and multi-factor authentication policies.

2.4-Inch LCD Display

A built-in 2.4-inch LCD screen provides a clear and intuitive interface for user enrollment, authentication, attendance management, and device configuration.

High-Resolution 2 MP Camera

The integrated 2 MP camera captures high-quality facial images for accurate recognition and supports face anti-spoofing technology to help prevent unauthorized access using photographs or videos.

Access Control and Time Attendance

Designed for both access control and workforce management, the terminal stores attendance records while controlling access to secured areas, making it suitable for businesses of all sizes.

Seamless System Integration

Support for ISAPI and ISUP 5.0 protocols enables easy integration with Hikvision access control and time attendance platforms. Configuration can be performed through both PC and mobile web clients.

Flexible Access Control Interfaces

The DS-K1T321MFX supports RS-485, Wiegand, USB, door lock control, exit button, and door contact interfaces, allowing integration with secure door controllers and existing access control infrastructure.

Compact and Reliable Design

Its compact form factor and durable construction make the terminal suitable for installation in offices, schools, retail stores, factories, and other indoor access control applications.

Product Specifications

• Brand: Hikvision
• Model: DS-K1T321MFX
• Product Type: Face Recognition Terminal
• Operating System: Linux
• Display: 2.4-inch LCD
• Camera: 2 MP Lens
• Face Capacity: Up to 500 Faces
• Fingerprint Capacity: Up to 3,000 Fingerprints
• Card Capacity: Up to 3,000 MIFARE (M1) Cards
• Event Capacity: Up to 150,000 Records
• Authentication Methods: Face Recognition, Fingerprint, MIFARE Card, PIN Code
• Face Recognition Speed: Less than 0.2 Seconds
• Face Recognition Accuracy: Greater than 99%
• Face Recognition Distance: 0.3–1.5 m
• Face Anti-Spoofing: Supported
• Card Type: MIFARE (M1)
• Network Interface: 1 × RJ45 10/100 Mbps Ethernet
• Communication Protocols: ISAPI, ISUP 5.0
• Interfaces:
  • 1 × USB
  • 1 × RS-485
  • 1 × Wiegand
  • 1 × Lock Output
  • 1 × Exit Button Input
  • 1 × Door Contact Input
  • 1 × Tamper Alarm
• Audio Output: Built-in Buzzer
• Keypad: Supported
• Power Supply: 12 V DC
• Power Consumption: ≤ 6 W
• Operating Temperature: -10°C to 55°C
• Operating Humidity: 0%–90% Non-Condensing
• Configuration Methods: PC Web Client, Mobile Web Client
• Installation: Surface Mount
• Compatible Platforms: HikCentral Professional, Hik-Partner Pro, iVMS-4200
• Typical Applications: Office access control, employee time attendance, schools, retail stores, commercial buildings, financial institutions, and industrial facilities.
