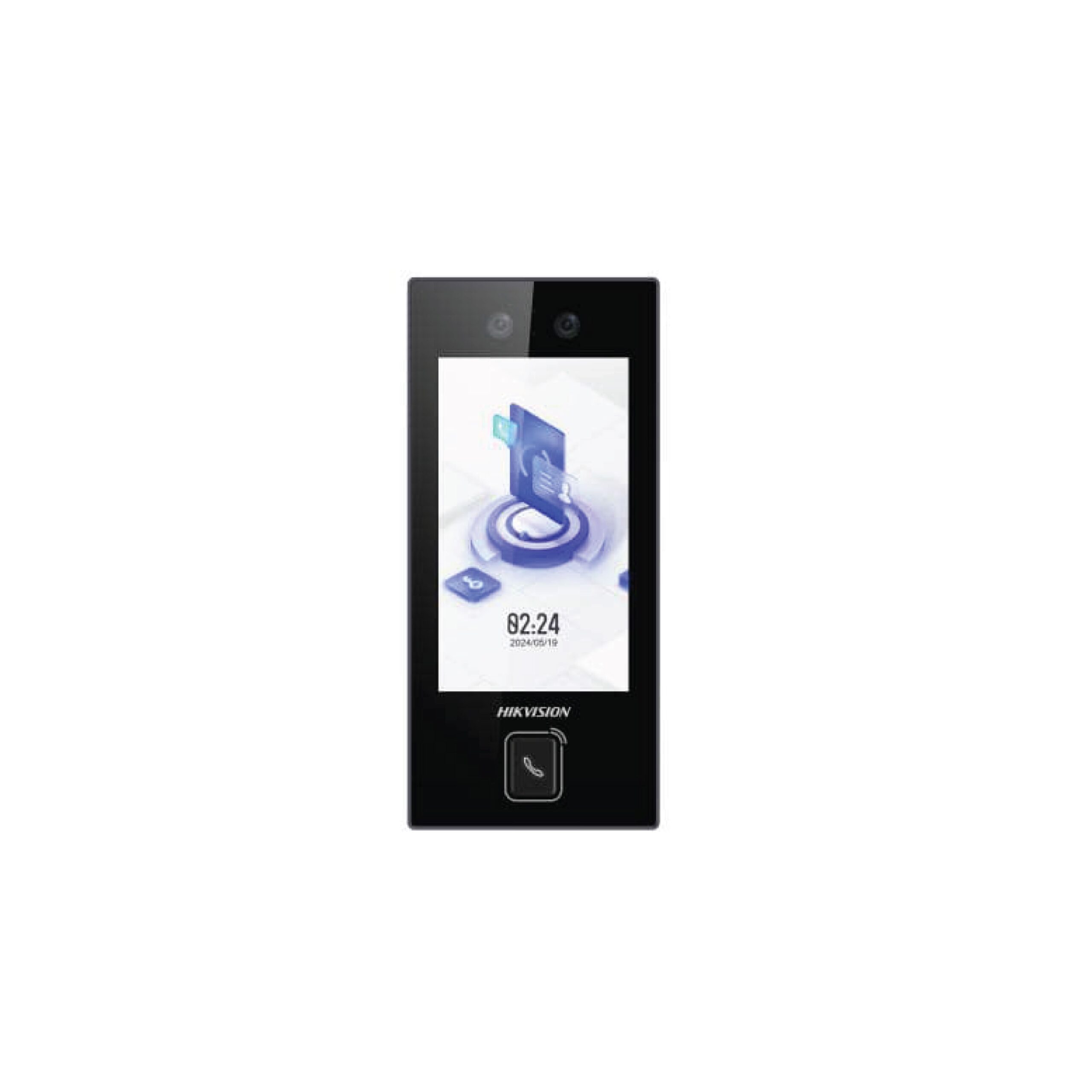

Hikvision DS-K1T344MFX-E1 Face Recognition Terminal

Hikvision DS-K1T344MFX-E1 Face Recognition Terminal is an intelligent biometric access control and time attendance solution designed for offices, commercial buildings, educational institutions, financial organizations, and industrial facilities. Powered by advanced deep learning algorithms, it delivers fast and accurate facial recognition in less than 0.2 seconds while supporting multiple authentication methods, including face recognition, fingerprint, MIFARE card, and PIN code. Featuring a 4.5-inch touchscreen, dual 2 MP wide-angle cameras, IP65-rated weather protection, PoE support, and two-way audio, the DS-K1T344MFX-E1 provides secure, reliable, and efficient access management for both indoor and outdoor installations.

Product Features

AI-Powered Face Recognition

Advanced deep learning technology enables facial recognition in less than 0.2 seconds per user with an accuracy rate of 99% or higher, providing fast and secure touchless authentication.

Multiple Authentication Methods

The terminal supports face recognition, fingerprint verification, MIFARE card authentication, and PIN code access, allowing organizations to implement flexible and multi-factor access control policies.

4.5-Inch LCD Touchscreen

A responsive 4.5-inch colour LCD touchscreen with a resolution of 480 × 854 provides an intuitive interface for user enrollment, authentication, attendance management, and device configuration.

Dual 2 MP Wide-Angle Cameras

Dual 2 MP cameras provide high-quality facial recognition and support AI-based anti-spoofing technology to prevent unauthorized access using photographs or video recordings.

IP65 Weather-Resistant Design

The IP65-rated enclosure protects the terminal against dust and water, making it suitable for both indoor installations and sheltered outdoor environments.

PoE and Door Lock Power Supply

The device supports IEEE 802.3at Power over Ethernet (PoE) as well as 12 V DC power input. It can also supply power to compatible electronic door locks, simplifying installation and reducing wiring requirements.

Two-Way Audio Communication

Built-in two-way audio enables communication with Hikvision client software, indoor stations, and master stations, improving visitor management and secure entry verification.

Flexible Web-Based Management

The terminal supports both mobile web and PC web configuration, allowing administrators to remotely configure, monitor, and manage the device with ease.

Product Specifications

• Brand: Hikvision
• Model: DS-K1T344MFX-E1
• Product Type: Face Recognition Terminal
• Operating System: Linux
• Display: 4.5-inch LCD Capacitive Touchscreen
• Screen Resolution: 480 × 854
• Camera: Dual 2 MP Wide-Angle Cameras
• Face Capacity: Up to 3,000 Faces
• Fingerprint Capacity: Up to 3,000 Fingerprints
• Card Capacity: Up to 3,000 MIFARE (M1) Cards
• User Capacity: Up to 3,000 Users
• Event Capacity: Up to 150,000 Records
• Authentication Methods: Face Recognition, Fingerprint, MIFARE Card, PIN Code
• Face Recognition Distance: 0.3–1.5 m
• Face Recognition Speed: Less than 0.2 Seconds
• Face Recognition Accuracy: 99% or Higher
• Face Anti-Spoofing: Supported
• QR Code Recognition: Supported
• Two-Way Audio: Supported
• Audio Prompt: Supported
• Card Type: MIFARE M1 (13.56 MHz)
• Network Interface: 1 × RJ45 10/100 Mbps Ethernet
• Communication Interfaces:
  • 1 × USB
  • 1 × RS-485
  • 1 × Wiegand
  • 2 × Alarm Inputs
  • 1 × Alarm Output
  • 1 × Door Lock Output
  • 1 × Exit Button Input
  • 1 × Door Contact Input
  • 1 × Tamper Alarm
• Power Supply: 12 V DC, 1 A or IEEE 802.3at PoE
• Door Lock Power Output: Supported
• Protection Rating: IP65
• Operating Temperature: -30°C to 60°C
• Operating Humidity: 10%–90% Non-Condensing
• Dimensions: 165.2 × 75.7 × 25 mm
• Net Weight: Approximately 0.36 kg
• Installation: Wall Mount
• Configuration Methods: Mobile Web and PC Web
• Compatible Platforms: HikCentral Professional, Hik-Connect, iVMS-4200
• Typical Applications: Office access control, employee time attendance, educational institutions, healthcare facilities, commercial buildings, financial institutions, factories, and industrial sites.
