MikroTik RB1100AHx4 Dude Edition Router (RB1100Dx4)
MikroTik RB1100AHx4 Dude Edition Router is a high-performance, professional-grade solution designed for medium to large-scale network environments. Built for reliability and advanced routing tasks, this unit features a quad-core ARM Cortex-A15 processor, 13 Gigabit Ethernet ports, and a pre-installed 60 GB SSD dedicated to The Dude network monitoring system. As one of the most advanced options in the MikroTik Routers series, it’s ideal for enterprise infrastructures, small ISPs, centralized hotspot management, and network administrators looking for scalability, security, and efficiency. While it is not a wireless router, it integrates perfectly into hybrid networks that include WiFi Routers.
Product Features
High-Performance Routing
- Quad-Core ARM Cortex-A15 CPU @ 1.4 GHz ensures fast processing for up to 7.5 Gbps total throughput and up to 1.5 million packets per second (PPS).
- Advanced packet filtering, firewall, and routing protocols such as BGP, OSPF, MPLS, and RIP.
Enterprise-Grade Connectivity

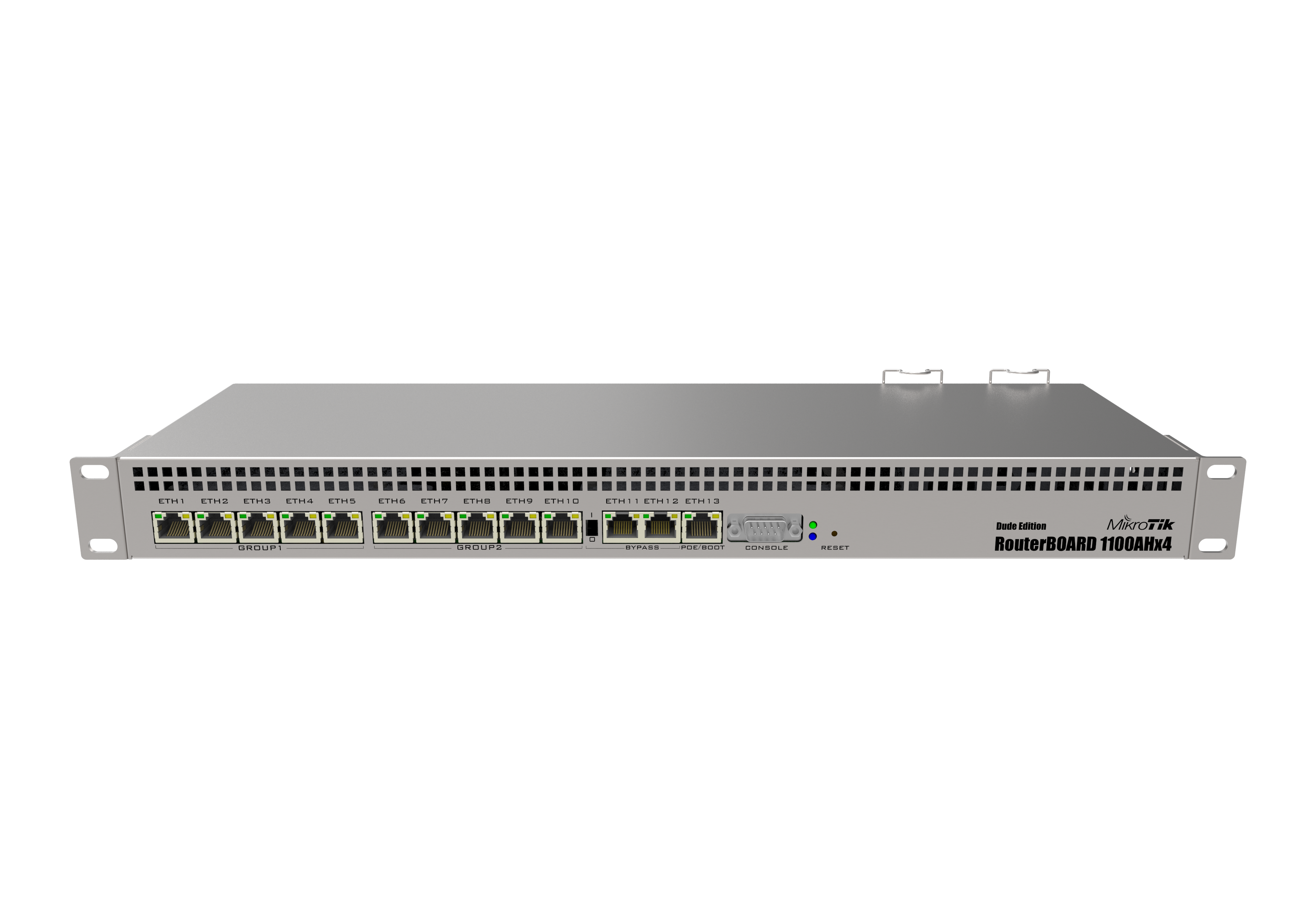

- 13x Gigabit Ethernet Ports (10/100/1000 Mbps) provide reliable wired connectivity for WAN and LAN configurations.
- RJ45 Serial Console Port and USB 3.0 Port for backup, failover, or external connectivity.
Integrated Monitoring with The Dude
- Pre-installed 60 GB M.2 SSD dedicated to running The Dude server for real-time network visualization, mapping, and alerting.
- Centralizes network monitoring and simplifies maintenance across complex infrastructures.
Reliable Power Redundancy

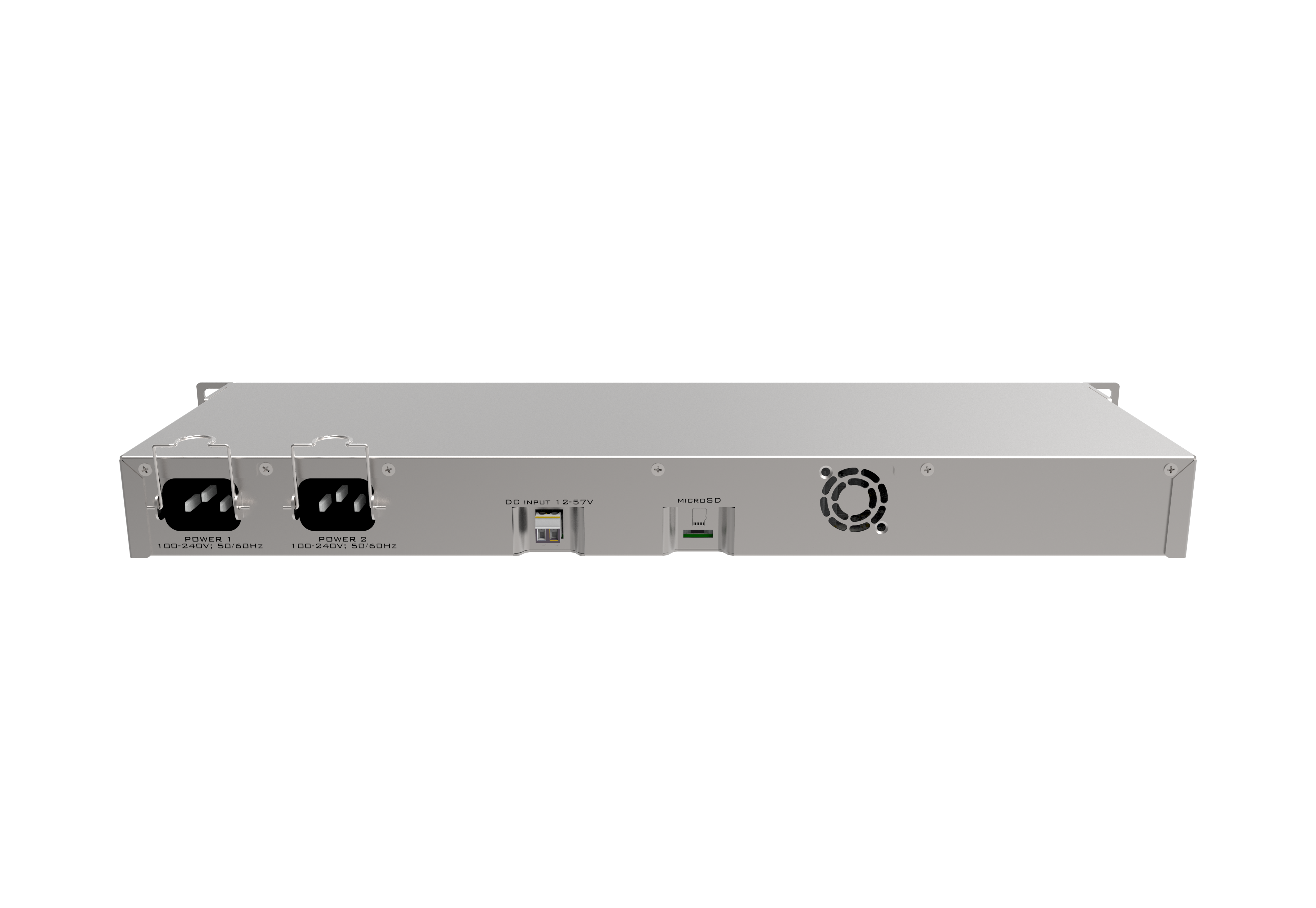

- Dual Redundant Power Supplies ensure uninterrupted operation.
- Passive PoE Input (18-57V) supported on Port 13 for flexible power options in remote deployments.
Scalable Network Management
- RouterOS Level 6 License enables full functionality of MikroTik’s powerful operating system.
- Built-in support for VPN protocols like PPTP, L2TP, IPsec, and OpenVPN.
- VLAN support via integrated switch chip for network segmentation.
Robust Design for Harsh Environments
- Industrial-grade durability with an operating temperature range of -40°C to +70°C.
- 1U rackmount chassis (444 x 148 x 47 mm) fits standard network cabinets and server racks.
Product Specifications
- CPU: Annapurna Labs Alpine AL21400, Quad-Core ARM Cortex-A15, 1.4 GHz
- RAM: 1 GB DDR3
- Storage: 60 GB M.2 SSD (Pre-Installed)
- Ethernet Ports: 13x Gigabit Ethernet (10/100/1000 Mbps)
- Serial Port: RJ45 Console
- USB Port: 1x USB 3.0 (Type A)
- Switch Chip: Hardware VLAN & Bridging Support
- Power Supply: Dual Redundant with Auto Failover
- PoE Input: Supported on Port 13 (18–57 V)
- Power Consumption: Up to 25 W
- Operating Temperature: -40°C to +70°C
- Mounting: 1U Rackmount
- Operating System: RouterOS Level 6 License
Why Choose MikroTik RB1100AHx4 Dude Edition?
- Professional Network Control: Supports hundreds of clients, dynamic routing, VPNs, and centralized monitoring.
- Designed for Stability: Dual power supplies, high temperature tolerance, and failover options.
- Integrated Monitoring: Ideal for IT professionals using The Dude for proactive diagnostics.
- Versatile Applications: Branch networks, hotspot controllers, small ISPs, and enterprise backbones.
- Perfect Addition to WiFi Router Setups: Though wired-only, it complements high-performance WiFi Routers in hybrid networks.
