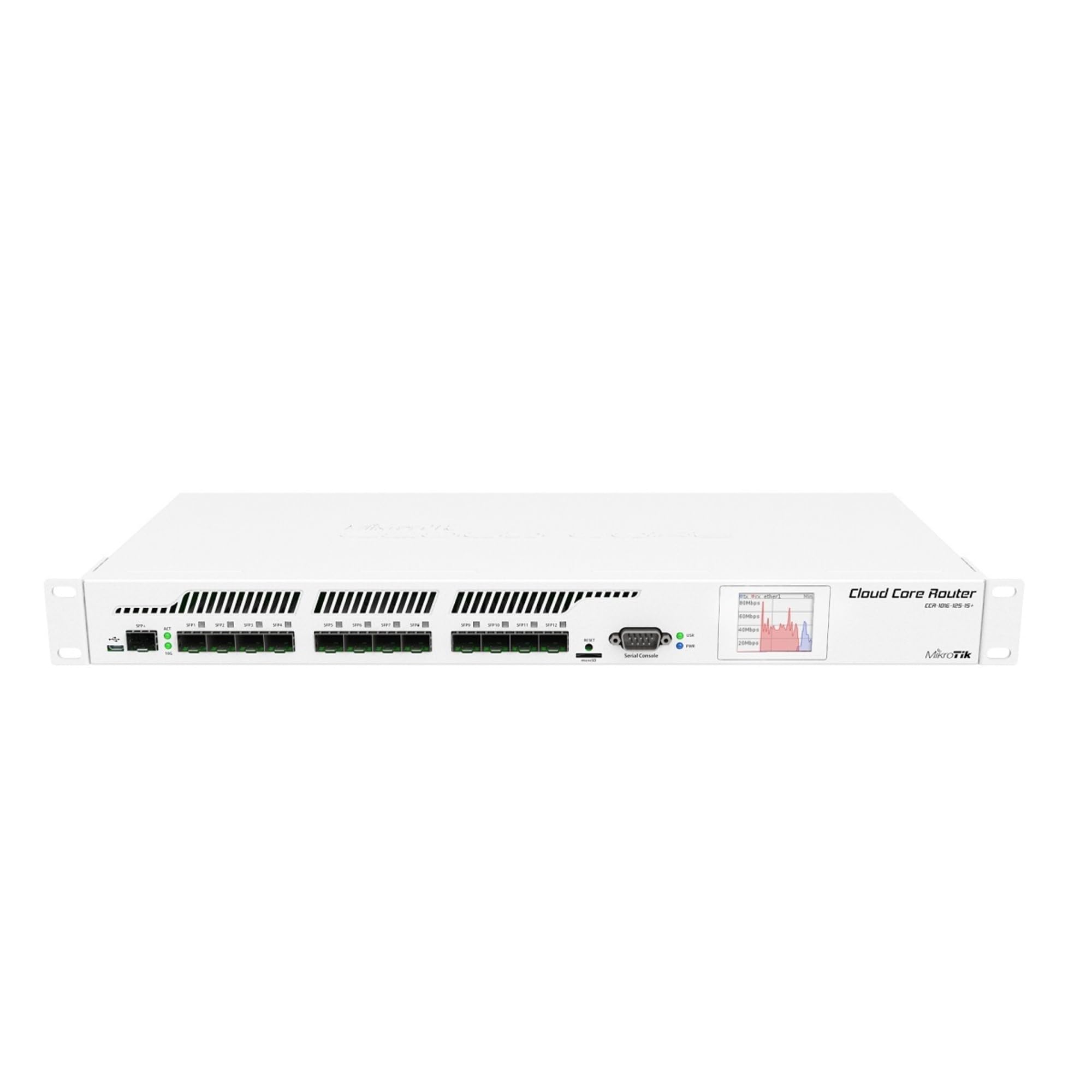

MikroTik CCR1016-12S-1S+ Cloud Core Router | 1U Rackmount, 12×SFP Cage
MikroTik CCR1016-12S-1S+ is a high-performance 1U rackmount router designed for enterprise and ISP-grade networks requiring high throughput and scalability. Equipped with a 16-core Tilera Tile-Gx16 CPU running at 1.2 GHz per core, it delivers exceptional routing performance. The device features 12 SFP ports for 1 Gbps connectivity and 1 SFP+ port for 10 Gbps uplinks, ensuring versatile fiber connectivity options. With 2 GB of RAM, 128 MB NAND storage, and dual redundant power supplies, the CCR1016-12S-1S+ offers reliability and efficiency. Its compact form factor, color touchscreen LCD, and comprehensive monitoring capabilities make it an ideal choice for demanding networking environments.
Product Features
16-Core Tilera Tile-Gx16 CPU
Delivers high-performance routing capabilities, handling millions of packets per second with ease.
12× SFP Ports and 1× SFP+ Port
Provides flexible fiber connectivity options, supporting both 1 Gbps and 10 Gbps speeds.
Dual Redundant Power Supplies
Ensures continuous operation by providing backup power, minimizing downtime.
Color Touchscreen LCD Display
Offers real-time system status and diagnostics, enhancing user interaction and monitoring.
Comprehensive System Monitoring
Includes voltage, current, and temperature sensors, along with a beeper for alerts, facilitating proactive maintenance.
RouterOS Level 6 License
Unlocks advanced features and functionalities, providing extensive control over network operations.
Product Specifications
- Product Code: CCR1016-12S-1S+
- CPU: Tilera Tile-Gx16, 16 cores @ 1.2 GHz
- RAM: 2 GB
- Storage: 128 MB NAND
- Operating System: RouterOS v6, Level 6 License
- Ethernet Ports: 12× SFP (1 Gbps), 1× SFP+ (10 Gbps)
- Power Inputs: 2× IEC C14 AC inputs
- Max Power Consumption: 47.5 W
- Cooling: 2× fans
- Dimensions: 443 mm × 197 mm × 44 mm (1U)
- Operating Temperature: –20 °C to +60 °C
- Certifications: CE, EAC, RoHS
- MTBF: Approximately 200,000 hours at 25 °C
