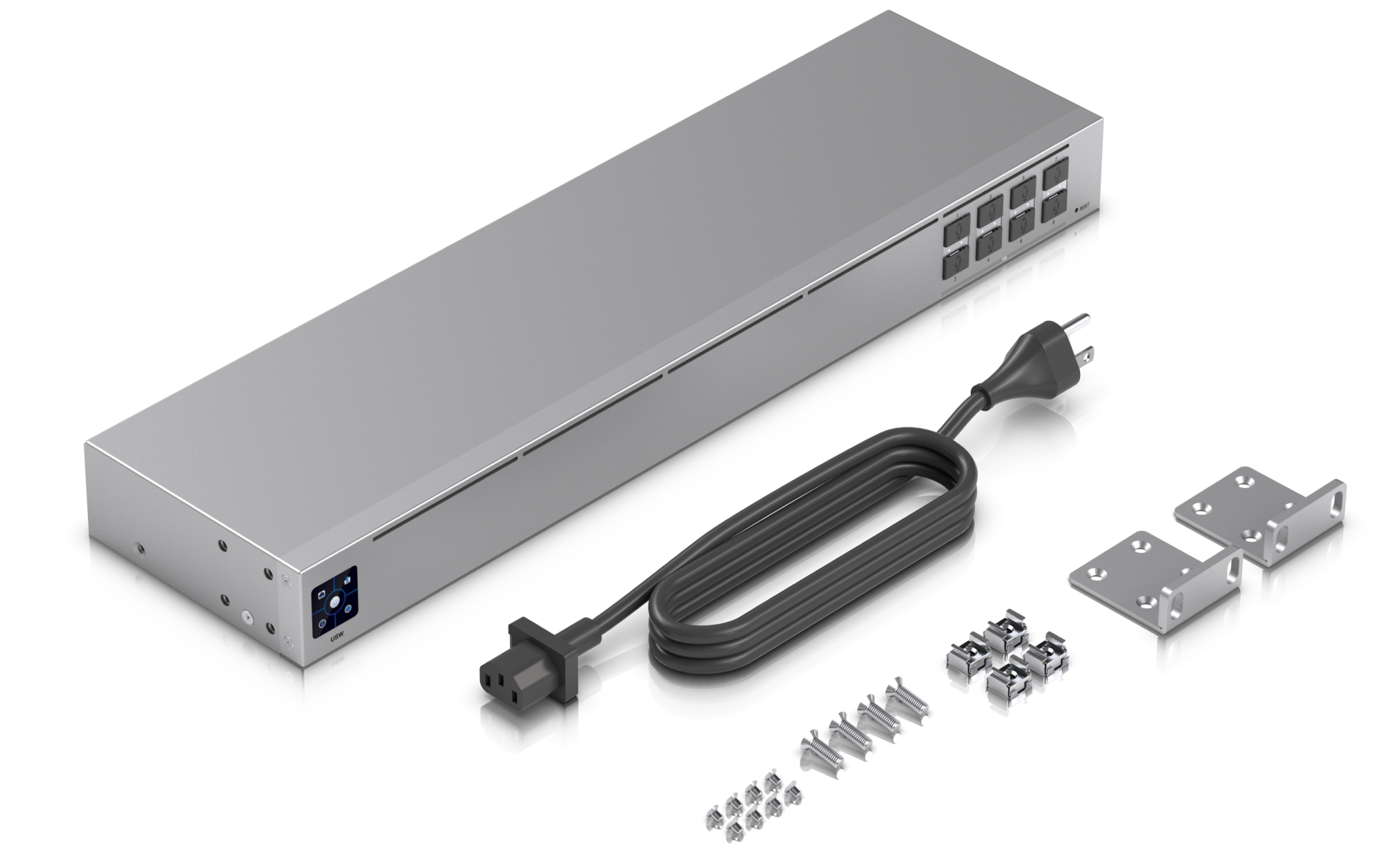

Ubiquiti UniFi Switch Aggregation (USW-Aggregation)

Ubiquiti UniFi USW-Aggregation is a high-performance networking switch designed for enterprise-grade fiber uplinks and high-bandwidth aggregation. With 8 × 10G SFP+ ports, silent fanless design, and seamless integration with the UniFi Network platform, this Ubiquiti switch offers an ideal solution for data centers, core switches, and top-of-rack deployments where performance and manageability are critical.

Product Features

10G High-Speed Aggregation
Equipped with 8 × 10G SFP+ ports, the switch delivers non-blocking throughput for linking multiple access switches or uplinking to core networks.

High Switching Capacity
With a switching capacity of 160 Gbps and forwarding rate of 119.04 Mpps, the USW-Aggregation ensures smooth data transfer in demanding environments.

Silent Fanless Operation
The fanless design enables quiet performance, ideal for noise-sensitive setups such as office racks or studio environments.

Advanced Layer 2 Switching
Supports essential L2 protocols like STP/RSTP, 802.1X access control, VLAN tagging (up to 1,000 VLANs), and robust multicast controls such as IGMP snooping and fast leave.

Enterprise Security & Traffic Control
Offers comprehensive protection features including DHCP snooping, MAC blocking, port isolation, ACLs, rate limiting, and broadcast storm control.

UniFi Network Integration
Managed via the UniFi Network Controller (web or mobile), enabling centralized configuration, monitoring, and firmware updates across your network.

1.3″ Color Touchscreen
Built-in LCM display offers real-time visual insights into system stats and port activity for quick on-site diagnostics.

Product Specifications

• Ports: 8 × 10G SFP+
• Switching Capacity: 160 Gbps
• Forwarding Rate: 119.04 Mpps
• MAC Address Table: 16,000 entries
• VLAN Support: Up to 1,000
• Packet Buffer Size: 1.5 MB
• Power Supply: Internal 36W AC/DC
• Max Power Consumption: 30W
• Cooling: Fanless design
• Dimensions: 442.4 × 120 × 43.7 mm
• Weight: 2.65 kg (without mount)
• Operating Temp: -5 to 40°C
• Humidity: 10% to 90% (non-condensing)
• Certifications: CE, FCC, IC
• ESD Protection: Air ±16kV, Contact ±12kV
• Enclosure Material: SGCC steel
• Form Factor: 1U rackmountable (brackets included)
