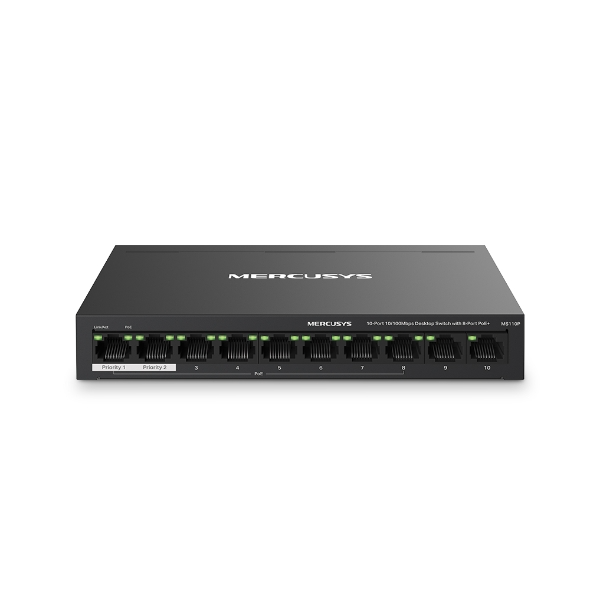

MERCUSYS MS110P PoE switch

MERCUSYS MS110P PoE switch is a reliable and cost-effective networking solution designed for IP surveillance systems, wireless access points, VoIP phones, and small business networks. Featuring 10 Fast Ethernet ports with 8 PoE+ ports, this desktop switch delivers both data and power over a single Ethernet cable, simplifying installation and reducing cabling costs. With a total PoE power budget of 65W and support for long-range PoE transmission up to 250 meters in Extend Mode, the MS110P is ideal for CCTV deployments and network expansion projects. Its durable metal casing, plug-and-play setup, and silent operation make it suitable for office, retail, and home networking environments.

Product Features

8 PoE+ Ports for Flexible Network Deployment

Equipped with 8 IEEE 802.3af/at compliant PoE+ ports that deliver both power and data to compatible devices such as IP cameras, wireless access points, and VoIP phones using a single Ethernet cable.

65W Total PoE Power Budget

Supports up to 30W per PoE port with a total PoE power budget of 65W, enabling stable operation of multiple powered devices simultaneously.

Long-Range PoE Transmission

Extend Mode increases PoE transmission distance up to 250 meters, making the switch ideal for surveillance camera installations across large buildings, warehouses, and outdoor environments.

Isolation Mode for Enhanced Security

Features one-click isolation mode that separates traffic between ports to improve network stability, reduce broadcast storms, and enhance data security.

PoE Auto Recovery Function

Automatically detects and reboots unresponsive PoE-powered devices to minimize downtime and maintain stable network performance.

Durable Metal Housing

Built with a sturdy metal casing for efficient heat dissipation, improved durability, and long-term reliability in continuous operation environments.

Plug-and-Play Installation

Requires no software configuration or technical setup, allowing quick deployment for businesses and home users.

Product Specifications

• Brand: MERCUSYS
• Model: MS110P
• Product type: Desktop PoE+ switch
• Total ports: 10 × 10/100 Mbps RJ45 ports
• PoE ports: 8 × PoE+ ports
• Uplink ports: 2 × uplink ports
• PoE standards: IEEE 802.3af/at
• Maximum PoE power per port: 30W
• Total PoE power budget: 65W
• Transmission distance: Up to 250 meters in Extend Mode
• Switching capacity: Fast Ethernet 10/100 Mbps
• MAC address table: 2K
• Installation: Desktop or wall mount
• Housing material: Metal
• Cooling: Fanless silent operation
• Power supply: External power adapter
• Dimensions: 171 × 98 × 27 mm
